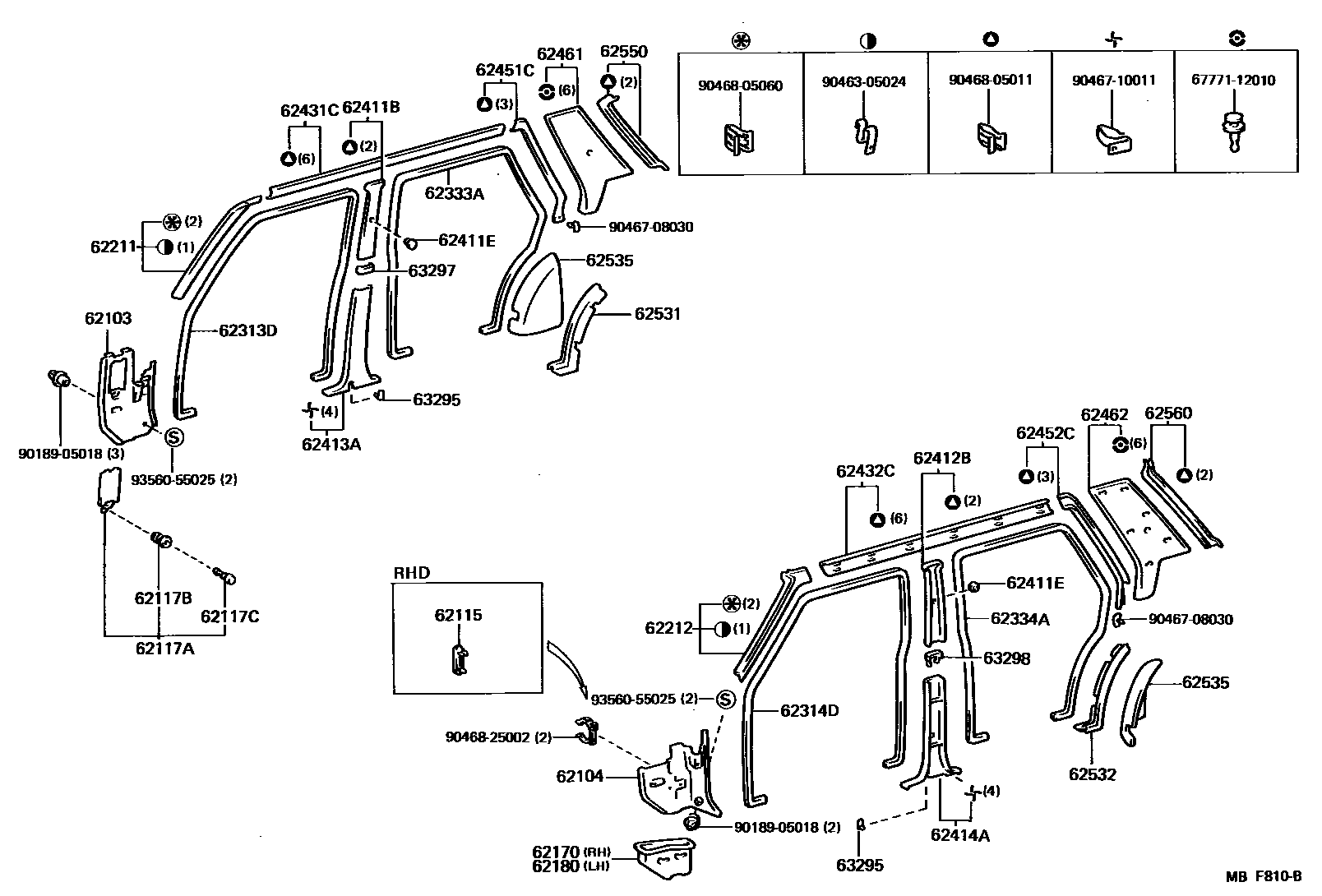

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1 0003 1

62103BOARD SUB-ASSY, COWL SIDE TRIM, RH

main62101-30210-04iLS120,YS120..RHD..4F198308-198708

BLUE,BLUE,TRIM8#

sub62101-30210¥3,720

main62101-30210-05iLS120,YS120..RHD..4F198308-198509

BEIGE,BEIGE,TRIM4#

sub62101-30210¥3,720

main62101-30210-06iLS120,YS120..RHD..4F198509-198708

BROWN,BROWN,TRIM4#

sub62101-30210¥3,720

main62101-30230-02iLS120,MS12#..RHD..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62101-30230-04iLS120,MS12#..RHD..(ROY,SAL)198308-198708

BLUE,BLUE,TRIM8#

main62101-30230-05iLS120,MS12#..RHD..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

main62101-30230-06iMS12#..RHD198509-198708

BROWN,BROWN,TRIM4#

main62101-30230-12iMS12#..RHD198509-198708

MAROON,MAROON,TRIM3#

main62101-30240-04iLS120..RHD..4H198308-198708

BLUE,BLUE,TRIM8#

main62101-30250-02iLS120,MS12#,YS120..LHD..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub62101-30250¥3,600

main62101-30250-04iMS122,125..LHD..(ROY,SAL)198308-198708

BLUE,BLUE,TRIM8#

sub62101-30250¥3,600

main62101-30250-05iLS120,MS12#,YS120..LHD..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

sub62101-30250¥3,600

main62101-30250-06iMS125..SED..LHD;MS122..(HT,SED)..LHD..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

sub62101-30250¥3,600

main62101-30250-12iMS122,125..LHD..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

sub62101-30250¥3,600

main62101-30260-04iLS120,MS122,YS120..LHD..(DLX,STD)198308-198708

BLUE,BLUE,TRIM8#

main62101-30260-05iLS120,YS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

main62101-30260-06iLS120,MS122,YS120..LHD..(DLX,STD)198509-198708

BROWN,BROWN,TRIM4#

62104BOARD SUB-ASSY, COWL SIDE TRIM, LH

main62102-30230-04iLS120,YS120..RHD..4F198308-198708

BLUE,BLUE,TRIM8#

sub62102-30230¥3,280

main62102-30230-05iLS120,YS120..RHD..4F198308-198509

BEIGE,BEIGE,TRIM4#

sub62102-30230¥3,280

main62102-30230-06iLS120,YS120..RHD..4F198509-198708

BROWN,BROWN,TRIM4#

sub62102-30230¥3,280

main62102-30240-02iLS120,MS12#..RHD..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub62102-30240¥3,600

main62102-30240-04iMS12#..RHD198308-198708

BLUE,BLUE,TRIM8#

sub62102-30240¥3,600

main62102-30240-05iLS120,MS12#..RHD..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

sub62102-30240¥3,600

main62102-30240-06iMS12#..RHD198509-198708

BROWN,BROWN,TRIM4#

sub62102-30240¥3,600

main62102-30240-12iMS12#..RHD198509-198708

MAROON,MAROON,TRIM3#

sub62102-30240¥3,600

main62102-30250-04iLS120..RHD..4H198308-198708

BLUE,BLUE,TRIM8#

main62102-30260-04iLS120,MS122,YS120..LHD..(DLX,STD)198308-198708

BLUE,BLUE,TRIM8#

main62102-30260-05iLS120,YS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

main62102-30260-06iLS120,MS122,YS120..LHD..(DLX,STD)198509-198708

BROWN,BROWN,TRIM4#

main62102-30270-02iLS120,MS12#,YS120..LHD..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62102-30270-04iMS122,125..LHD..(ROY,SAL)198308-198708

BLUE,BLUE,TRIM8#

main62102-30270-05iLS120,MS12#,YS120..LHD..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

main62102-30270-06iMS125..SED..LHD;MS122..(HT,SED)..LHD..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

main62102-30270-12iMS122,125..LHD..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

62115PLUG, COWL SIDE TRIM

main90950-01267-12iLS120,MS12#..RHD..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub90950-01267¥330

main90950-01267-22iMS12#..RHD198509-198708

MAROON,MAROON,TRIM3#

sub90950-01267¥330

main90950-01267-24iLS120,MS12#,YS120..RHD198308-198708

BLUE,BLUE,TRIM8#

sub90950-01267¥330

main90950-01267-26iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)198509-198708

BROWN,SEPIA BROWN,TRIM4#

sub90950-01267¥330

main90950-01267-35iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)198308-198509

BEIGE,BEIGE,TRIM4#

sub90950-01267¥330

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-30010-02iLS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA,SWZ)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62117-30010-04iLS120,MS12#,YS120..SED..(ARL,GEN,SAA,SWZ)198308-198509

BLUE,BLUE,TRIM8#

main62117-30010-05iMS123,125..ARL,GEN,SWZ198308-198509

BEIGE,BEIGE,TRIM4#

main62117-30011-02iMS12#..RHD198509-198708

MAROON,MAROON,TRIM3#

main62117-30011-04iLS120,MS12#,YS120..RHD198509-198708

BLUE,BLUE,TRIM8#

main62117-30011-06iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)198509-198708

BROWN,BROWN,TRIM4#

main62117-30020-02iMS123..EUG198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62117-30020-04iMS123..EUG198308-198509

BLUE,BLUE,TRIM8#

main62117-30020-05iMS123..EUG198308-198509

BEIGE,BEIGE,TRIM4#

main62117-30021-02iMS122,125..LHD..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main62117-30021-04iLS120,MS122,125,YS120..LHD198509-198708

BLUE,BLUE,TRIM8#

main62117-30021-06iMS125..SED..LHD;LS120,MS122,YS120..(HT,SED)..LHD198509-198708

BROWN,BROWN,TRIM4#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-08031-04iLS120,MS12#,YS120..SED198308-198708

BLUE,BLUE,TRIM8#

sub90467-08031¥210

main90467-08031-05iMS12#,YS120;LS120..4F,5F;LS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

sub90467-08031¥210

main90467-08031-12iLS120,MS12#,YS120..ROY,SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub90467-08031¥210

main90467-08031-22iMS12#..ROY,SAL198509-198708

MAROON,MAROON,TRIM3#

sub90467-08031¥210

main90467-08031-26iLS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC)198509-198708

BROWN,BROWN,TRIM4#

sub90467-08031¥210

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-05015-04iLS120,MS12#,YS120..SED198308-198708

BLUE,BLUE,TRIM8#

sub90467-05015¥190

main90467-05015-05iMS12#,YS120;LS120..4F,5F;LS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

sub90467-05015¥190

main90467-05015-12iLS120,MS12#,YS120..ROY,SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub90467-05015¥190

main90467-05015-22iMS12#..ROY,SAL198509-198708

MAROON,MAROON,TRIM3#

sub90467-05015¥190

main90467-05015-26iLS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC)198509-198708

BROWN,BROWN,TRIM4#

sub90467-05015¥190

62170BOX ASSY, COWL SIDE TRASH, RH

main62170-30020-02iLS120,MS12#,YS120..LHD..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62170-30020-04iLS120,MS12#,YS120..SED..LHD..(ROY,SAL)198308-198708

BLUE,BLUE,TRIM8#

main62170-30020-05iLS120,MS12#,YS120..LHD..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

main62170-30020-06iMS125..SED..LHD;MS122..(HT,SED)..LHD..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

main62170-30020-12iMS122,125..LHD..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

62180BOX ASSY, COWL SIDE TRASH, LH

main62180-30020-02iLS120,MS12#..RHD..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62180-30020-04iLS120,MS12#..RHD..(ROY,SAL)198308-198708

BLUE,BLUE,TRIM8#

main62180-30020-05iLS120,MS12#..RHD..(ROY,SAL)198308-198708

BEIGE,BEIGE,TRIM4#

main62180-30020-06iMS12#..RHD198509-198708

BROWN,BROWN,TRIM4#

main62180-30020-12iMS12#..RHD198509-198708

MAROON,MAROON,TRIM3#

62211GARNISH, FRONT PILLAR, RH

main62211-30100-02iMS122..WG198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62211-30100-04iLS120..4F;LS120..LHD;MS122,YS120..DLX,STD198308-198708

BLUE,BLUE,TRIM8#

main62211-30100-05iMS122..WG198308-198509

BEIGE,BEIGE,TRIM4#

main62211-30100-06iLS120..4F;LS120..LHD;MS122,YS120..DLX,STD198509-198708

BROWN,BROWN,TRIM4#

main62211-30100-12iMS122..WG198509-198708

MAROON,MAROON,TRIM3#

main62211-30110-02iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62211-30110-04iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

LIGHT BLUE,BLUE,TRIM8#

main62211-30110-04iMS12#..SED..(ROY,SAL)198509-198708

BLUE,BLUE,TRIM8#

main62211-30110-05iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

main62211-30110-06iMS12#..SED..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

main62211-30110-12iMS12#..SED..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main62211-30120-04iLS120..RHD..4H198308-198708

BLUE,BLUE,TRIM8#

main62211-30140-04iMS122,125..HT198509-198708

BLUE,BLUE,TRIM8#

main62211-30140-06iMS122..HT198509-198708

BROWN,BROWN,TRIM4#

main62211-30140-12iMS122,125..HT198509-198708

MAROON,MAROON,TRIM3#

62212GARNISH, FRONT PILLAR, LH

main62212-30100-02iMS122..WG198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62212-30100-04iLS120..4F;YS120..STD;LS120..LHD..STD198308-198708

BLUE,BLUE,TRIM8#

main62212-30100-05iLS120..4F;YS120..STD;LS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

main62212-30100-06iLS120..4F;LS120..LHD;MS122,YS120..DLX,STD198509-198708

BROWN,BROWN,TRIM4#

main62212-30100-12iMS122..WG198509-198708

MAROON,MAROON,TRIM3#

main62212-30110-02iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62212-30110-04iMS12#..SED..(ROY,SAL)198509-198708

BLUE,BLUE,TRIM8#

main62212-30110-04iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

LIGHT BLUE,BLUE,TRIM8#

main62212-30110-05iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

main62212-30110-06iMS12#..SED..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

main62212-30110-12iMS12#..SED..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main62212-30130-04iMS122,125..HT198509-198708

BLUE,BLUE,TRIM8#

main62212-30130-06iMS122..HT198509-198708

BROWN,BROWN,TRIM4#

main62212-30130-12iMS122,125..HT198509-198708

MAROON,MAROON,TRIM3#

main62212-30140-04iLS120..RHD..4H198308-198708

BLUE,BLUE,TRIM8#

62313DTRIM, FRONT DOOR OPENING, RH

main62311-30070-02iLS120,MS12#,YS120..ROY,SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub62311-30070¥6,600

main62311-30070-04iMS12#..SED,WG198308-198708

BLUE,BLUE,TRIM8#

sub62311-30070¥6,600

main62311-30070-05iLS120,MS12#,YS120..ROY,SAL198308-198509

BEIGE,BEIGE,TRIM4#

sub62311-30070¥6,600

main62311-30070-06iMS12#..SED,WG198509-198708

BROWN,SEPIA BROWN,TRIM4#

sub62311-30070¥6,600

main62311-30070-12iMS12#..(SED,WG)..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

sub62311-30070¥6,600

main62311-30080-04iMS122,125..HT198509-198708

BLUE,BLUE,TRIM8#

main62311-30080-06iMS122..HT198509-198708

BROWN,SEPIA BROWN,TRIM4#

main62311-30080-12iMS122,125..HT198509-198708

MAROON,MAROON,TRIM3#

main62313-30080-04iLS120,YS120..STD198308-198708

BLUE,BLUE,TRIM8#

main62313-30080-05iLS120..4F;YS120..STD;LS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

main62313-30080-06iYS120;LS120..4F;LS120..LHD198509-198708

BROWN,BROWN,TRIM4#

62314DTRIM, FRONT DOOR OPENING, LH

main62312-30060-02iLS120,MS12#,YS120..ROY,SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub62312-30060¥6,600

main62312-30060-04iMS12#..SED,WG198308-198708

BLUE,BLUE,TRIM8#

sub62312-30060¥6,600

main62312-30060-05iLS120,MS12#,YS120..ROY,SAL198308-198509

BEIGE,BEIGE,TRIM4#

sub62312-30060¥6,600

main62312-30060-06iMS12#..SED,WG198509-198708

BROWN,SEPIA BROWN,TRIM4#

sub62312-30060¥6,600

main62312-30060-12iMS12#..(SED,WG)..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

sub62312-30060¥6,600

main62312-30070-04iMS122,125..HT198509-198708

BLUE,BLUE,TRIM8#

main62312-30070-06iMS122..HT198509-198708

BROWN,SEPIA BROWN,TRIM4#

main62312-30070-12iMS122,125..HT198509-198708

MAROON,MAROON,TRIM3#

main62313-30080-04iLS120,YS120..STD198308-198708

BLUE,BLUE,TRIM8#

main62313-30080-05iLS120..4F;YS120..STD;LS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

main62313-30080-06iYS120;LS120..4F;LS120..LHD198509-198708

BROWN,BROWN,TRIM4#

62333ATRIM, REAR DOOR OPENING, RH

main62331-30020-02iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub62331-30020¥6,600

main62331-30020-04iMS12#..SED198308-198708

BLUE,BLUE,TRIM8#

sub62331-30020¥6,600

main62331-30020-05iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

sub62331-30020¥6,600

main62331-30020-06iMS12#..SED198509-198708

BROWN,SEPIA BROWN,TRIM4#

sub62331-30020¥6,600

main62331-30020-12iMS12#..SED..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

sub62331-30020¥6,600

main62331-91702-02iMS122..WG198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub62331-91702¥4,560

main62331-91702-04iMS122..WG198509-198708

BLUE,BLUE,TRIM8#

sub62331-91702¥4,560

main62331-91702-05iMS122..WG198308-198509

BEIGE,BEIGE,TRIM4#

sub62331-91702¥4,560

main62331-91702-12iMS122..WG198509-198708

MAROON,MAROON,TRIM3#

sub62331-91702¥4,560

main62333-30040-04iLS120,YS120..STD198308-198708

BLUE,BLUE,TRIM8#

main62333-30040-05iLS120..4F;YS120..STD;LS120..LHD..STD198308-198708

BEIGE,BEIGE,TRIM4#

main62333-30040-06iYS120;LS120..4F;LS120..LHD198509-198708

BROWN,BROWN,TRIM4#

main62333-30060-04iMS122,125..HT198509-198708

BLUE,BLUE,TRIM8#

main62333-30060-06iMS122..HT198509-198708

BROWN,BROWN,TRIM4#

main62333-30060-12iMS122,125..HT198509-198708

MAROON,MAROON,TRIM3#

62334ATRIM, REAR DOOR OPENING, LH

main62332-30020-02iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub62332-30020¥6,600

main62332-30020-04iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198708

BLUE,BLUE,TRIM8#

sub62332-30020¥6,600

main62332-30020-05iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

sub62332-30020¥6,600

main62332-30020-06iMS12#..SED198509-198708

BROWN,SEPIA BROWN,TRIM4#

sub62332-30020¥6,600

main62332-30020-12iMS12#..SED..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

sub62332-30020¥6,600

main62332-91702-02iMS122..WG198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub62332-91702¥4,560

main62332-91702-04iMS122..WG198509-198708

BLUE,BLUE,TRIM8#

sub62332-91702¥4,560

main62332-91702-05iMS122..WG198308-198509

BEIGE,BEIGE,TRIM4#

sub62332-91702¥4,560

main62332-91702-12iMS122..WG198509-198708

MAROON,MAROON,TRIM3#

sub62332-91702¥4,560

main62333-30040-04iLS120,YS120..STD198308-198708

BLUE,BLUE,TRIM8#

main62333-30040-05iLS120..4F;YS120..STD;LS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

main62333-30040-06iYS120;LS120..4F;LS120..LHD198509-198708

BROWN,BROWN,TRIM4#

main62333-30060-04iMS122,125..HT198509-198708

BLUE,BLUE,TRIM8#

main62333-30060-06iMS122..HT198509-198708

BROWN,BROWN,TRIM4#

main62333-30060-12iMS122,125..HT198509-198708

MAROON,MAROON,TRIM3#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-30210-02iMS122..WG198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62411-30210-04iMS122..WG198308-198708

BLUE,BLUE,TRIM8#

main62411-30210-05iLS120..4F;YS120..STD;LS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

main62411-30210-06iLS120..4F;LS120..LHD;MS122,YS120..DLX,STD198509-198708

BROWN,BROWN,TRIM4#

main62411-30210-12iMS122..WG198509-198708

MAROON,MAROON,TRIM3#

main62411-30220-02iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62411-30220-04iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198708

BLUE,BLUE,TRIM8#

main62411-30220-05iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

main62411-30220-06iMS12#..SED..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

main62411-30220-12iMS12#..SED..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main62411-30240-04iMS122,125..HT198509-198708

BLUE,BLUE,TRIM8#

main62411-30240-06iMS122..HT198509-198708

BROWN,BROWN,TRIM4#

main62411-30240-12iMS122,125..HT198509-198708

MAROON,MAROON,TRIM3#

62411EPLUG, HOLE (FOR SEAT BELT)

main90950-01159-24iLS120,MS122,YS120..LHD..(DLX,STD)..GEN198308-198708

W/O FR SEAT BELT,BLUE,BLUE,TRIM8#

sub90950-01159¥270

main90950-01159-55iLS120,YS120..LHD..STD198308-198509

W/O FR SEAT BELT,BEIGE,BEIGE,TRIM4#

sub90950-01159¥270

main90950-01159-56iLS120,MS122,YS120..LHD..(DLX,STD)..GEN198509-198708

BROWN,BROWN,TRIM4#

sub90950-01159¥270

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-30210-02iMS122..WG198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62412-30210-04iLS120,MS122,YS120..DLX,STD198308-198708

BLUE,BLUE,TRIM8#

main62412-30210-05iLS120..4F;YS120..STD;LS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

main62412-30210-06iLS120..4F;LS120..LHD;MS122,YS120..DLX,STD198509-198708

BROWN,BROWN,TRIM4#

main62412-30210-12iMS122..WG198509-198708

MAROON,MAROON,TRIM3#

main62412-30220-02iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62412-30220-04iMS12#..SED..(ROY,SAL)198308-198708

BLUE,BLUE,TRIM8#

main62412-30220-05iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

main62412-30220-06iMS12#..SED..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

main62412-30220-12iMS12#..SED..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main62412-30240-04iMS122,125..HT198509-198708

BLUE,BLUE,TRIM8#

main62412-30240-06iMS122..HT198509-198708

BROWN,BROWN,TRIM4#

main62412-30240-12iMS122,125..HT198509-198708

MAROON,MAROON,TRIM3#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62041-30030-02iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub62041-30030¥7,900

main62041-30030-04iMS12#..SED..(ROY,SAL)198308-198708

BLUE,BLUE,TRIM8#

sub62041-30030¥7,900

main62041-30030-05iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

sub62041-30030¥7,900

main62041-30030-06iMS12#..SED..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

sub62041-30030¥7,900

main62041-30030-12iMS12#..SED..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

sub62041-30030¥7,900

main62041-30040-04iMS122,125..HT198509-198708

BLUE,BLUE,TRIM8#

sub62041-30040¥7,800

main62041-30040-06iMS122..HT198509-198708

BROWN,BROWN,TRIM4#

sub62041-30040¥7,800

main62041-30040-12iMS122,125..HT198509-198708

MAROON,MAROON,TRIM3#

sub62041-30040¥7,800

main62413-30120-02iMS122..WG198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62413-30120-04iLS120,MS122,YS120..DLX,STD198308-198708

BLUE,BLUE,TRIM8#

main62413-30120-05iMS122..WG198308-198509

BEIGE,BEIGE,TRIM4#

main62413-30120-06iLS120..4F;LS120..LHD;MS122,YS120..DLX,STD198509-198708

BROWN,BROWN,TRIM4#

main62413-30120-12iMS122..WG198509-198708

MAROON,MAROON,TRIM3#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62042-30030-02iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub62042-30030¥7,900

main62042-30030-04iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198708

BLUE,BLUE,TRIM8#

sub62042-30030¥7,900

main62042-30030-05iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

sub62042-30030¥7,900

main62042-30030-06iMS12#..SED..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

sub62042-30030¥7,900

main62042-30030-12iMS12#..SED..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

sub62042-30030¥7,900

main62042-30040-04iMS122,125..HT198509-198708

BLUE,BLUE,TRIM8#

sub62042-30040¥7,800

main62042-30040-06iMS122..HT198509-198708

BROWN,BROWN,TRIM4#

sub62042-30040¥7,800

main62042-30040-12iMS122,125..HT198509-198708

MAROON,MAROON,TRIM3#

sub62042-30040¥7,800

main62414-30050-02iMS122..WG198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62414-30050-04iLS120,YS120..STD198308-198708

BLUE,BLUE,TRIM8#

main62414-30050-05iLS120..4F;YS120..STD;LS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

main62414-30050-06iLS120..4F;LS120..LHD;MS122,YS120..DLX,STD198509-198708

BROWN,BROWN,TRIM4#

main62414-30050-12iMS122..WG198509-198708

MAROON,MAROON,TRIM3#

62431CGARNISH, ROOF SIDE RAIL, FRONT RH

main62431-30050-02iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62431-30050-04iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

LIGHT BLUE,BLUE,TRIM8#

main62431-30050-04iMS12#..SED..(ROY,SAL)198509-198708

BLUE,BLUE,TRIM8#

main62431-30050-05iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

main62431-30050-06iMS12#..SED..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

main62431-30050-12iMS12#..SED..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main62431-30060-04iMS122,125..HT198509-198708

BLUE,BLUE,TRIM8#

main62431-30060-06iMS122..HT198509-198708

BROWN,BROWN,TRIM4#

main62431-30060-12iMS122,125..HT198509-198708

MAROON,MAROON,TRIM3#

62432CGARNISH, ROOF SIDE RAIL, FRONT LH

main62432-30050-02iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62432-30050-04iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

LIGHT BLUE,BLUE,TRIM8#

main62432-30050-04iMS12#..SED..(ROY,SAL)198509-198708

BLUE,BLUE,TRIM8#

main62432-30050-05iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

main62432-30050-06iMS12#..SED..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

main62432-30050-12iMS12#..SED..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main62432-30060-04iMS122,125..HT198509-198708

BLUE,BLUE,TRIM8#

main62432-30060-06iMS122..HT198509-198708

BROWN,BROWN,TRIM4#

main62432-30060-12iMS122,125..HT198509-198708

MAROON,MAROON,TRIM3#

62451CGARNISH, ROOF SIDE RAIL, REAR RH

main62451-30040-02iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62451-30040-04iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

LIGHT BLUE,BLUE,TRIM8#

main62451-30040-04iMS12#..SED..(ROY,SAL)198509-198708

BLUE,BLUE,TRIM8#

main62451-30040-05iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

main62451-30040-06iMS12#..SED..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

main62451-30040-12iMS12#..SED..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main62451-30050-04iMS122,125..HT198509-198708

BLUE,BLUE,TRIM8#

main62451-30050-06iMS122..HT198509-198708

BROWN,BROWN,TRIM4#

main62451-30050-12iMS122,125..HT198509-198708

MAROON,MAROON,TRIM3#

62452CGARNISH, ROOF SIDE RAIL, REAR LH

main62452-30030-02iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62452-30030-04iMS12#..SED..(ROY,SAL)198509-198708

BLUE,BLUE,TRIM8#

main62452-30030-04iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

LIGHT BLUE,BLUE,TRIM8#

main62452-30030-05iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

main62452-30030-06iMS12#..SED..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

main62452-30030-12iMS12#..SED..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main62452-30040-04iMS122,125..HT198509-198708

BLUE,BLUE,TRIM8#

main62452-30040-06iMS122..HT198509-198708

BROWN,BROWN,TRIM4#

main62452-30040-12iMS122,125..HT198509-198708

MAROON,MAROON,TRIM3#

62461GARNISH, ROOF SIDE TRIM, RH

main62470-30230-04iLS120,MS122,YS120..DLX,STD198308-198708

LIGHT BLUE,BLUE,TRIM8#

main62470-30230-05iLS120..4F;LS120..LHD..STD;MS122,YS120..DLX,STD198308-198708

BEIGE,BEIGE,TRIM4#

main62470-30250-04iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198708

LIGHT BLUE,BLUE,TRIM8#

main62470-30250-05iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198708

BEIGE,BEIGE,TRIM3#,4#

main62470-30270-04iMS122,125..HT198509-198708

BLUE,BLUE,TRIM8#

main62470-30270-05iMS122,125..HT198509-198708

BEIGE,BEIGE,TRIM3#,4#

62462GARNISH, ROOF SIDE TRIM, LH

main62480-30190-04iLS120,MS122,YS120..DLX,STD198308-198708

LIGHT BLUE,BLUE,TRIM8#

main62480-30190-05iLS120..4F;LS120..LHD..STD;MS122,YS120..DLX,STD198308-198708

BEIGE,BEIGE,TRIM4#

main62480-30210-04iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198708

LIGHT BLUE,BLUE,TRIM8#

main62480-30210-05iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198708

BEIGE,BEIGE,TRIM3#,4#

main62480-30230-04iMS122,125..HT198509-198708

BLUE,BLUE,TRIM8#

main62480-30230-05iMS122,125..HT198509-198708

BEIGE,BEIGE,TRIM3#,4#

62531COVER, WHEEL HOUSE TRIM, RH

main62610-30010iLS120,MS12#,YS120..SED¥980198308-198708

62532COVER, WHEEL HOUSE TRIM, LH

main62620-30010iLS120,MS12#,YS120..SED¥980198308-198708

62535PAD, QUARTER WHEEL HOUSE TRIM

main62611-30020iLS120,MS12#,YS120..HT,SED¥650198308-198708

main62611-91704iMS122..WG¥310198308-198708

62550GARNISH ASSY, REAR BODY PILLAR, RH

main62581-30060-02iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub62581-30060¥5,900

main62581-30060-04iLS120,MS12#,YS120..SED198308-198708

BLUE,BLUE,TRIM8#

sub62581-30060¥5,900

main62581-30060-05iLS120..4F,5F;MS123,125,YS120;LS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

sub62581-30060¥5,900

main62581-30060-06iLS120..4F;LS120..LHD;MS12#,YS120..SED198509-198708

BROWN,BROWN,TRIM4#

sub62581-30060¥5,900

main62581-30060-12iMS12#..SED..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

sub62581-30060¥5,900

main62581-30070-04iMS122..HT198509-198708

BLUE,BLUE,TRIM8#

sub62581-30070¥5,900

main62581-30070-06iMS122..HT198509-198708

BROWN,BROWN,TRIM4#

sub62581-30070¥5,900

main62581-30070-12iMS122..HT198509-198708

MAROON,MAROON,TRIM3#

sub62581-30070¥5,900

main62581-30080-04iMS122,125..HT198509-198708

W/RR 3 POINT SEAT BELT,BLUE,BLUE,TRIM8#

sub62581-30080¥5,900

main62581-30080-06iMS122..HT198509-198708

W/RR 3 POINT SEAT BELT,BROWN,BROWN,TRIM4#

sub62581-30080¥5,900

main62581-30080-12iMS122,125..HT198509-198708

W/RR 3 POINT SEAT BELT,MAROON,MAROON,TRIM3#

sub62581-30080¥5,900

62560GARNISH ASSY, REAR BODY PILLAR, LH

main62582-30050-02iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub62582-30050¥6,600

main62582-30050-04iLS120,MS12#,YS120..SED198308-198708

BLUE,BLUE,TRIM8#

sub62582-30050¥6,600

main62582-30050-05iMS122..SED198308-198509

BEIGE,BEIGE,TRIM4#

sub62582-30050¥6,600

main62582-30050-06iLS120..4F;LS120..LHD;MS12#,YS120..SED198509-198708

BROWN,BROWN,TRIM4#

sub62582-30050¥6,600

main62582-30050-12iMS12#..SED..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

sub62582-30050¥6,600

main62582-30060-04iMS122..HT198509-198708

BLUE,BLUE,TRIM8#

sub62582-30060¥5,900

main62582-30060-06iMS122..HT198509-198708

BROWN,BROWN,TRIM4#

sub62582-30060¥5,900

main62582-30060-12iMS122..HT198509-198708

MAROON,MAROON,TRIM3#

sub62582-30060¥5,900

main62582-30070-04iMS122,125..HT198509-198708

W/RR 3 POINT SEAT BELT,BLUE,BLUE,TRIM8#

sub62582-30070¥5,900

main62582-30070-06iMS122..HT198509-198708

W/RR 3 POINT SEAT BELT,BROWN,BROWN,TRIM4#

sub62582-30070¥5,900

main62582-30070-12iMS122,125..HT198509-198708

W/RR 3 POINT SEAT BELT,MAROON,MAROON,TRIM3#

sub62582-30070¥5,900

63295LID, CENTER PILLAR GARNISH BELT HOLE, LOWER

main73295-30020-04iLS120,YS120..LHD..STD198308-198708

W/O FR SEAT BELT,BLUE,BLUE,TRIM8#

main73295-30020-05iLS120,YS120..LHD..STD198308-198708

W/O FR SEAT BELT,BEIGE,BEIGE,TRIM4#

main73295-30020-06iLS120,MS122,YS120..LHD..(DLX,STD)..GEN198509-198708

BROWN,BROWN,TRIM4#

63297LID, CENTER PILLAR GARNISH BELT HOLE, RH

main73297-30020-04iLS120..RHD..4H198308-198708

W/O FR SEAT BELT,BLUE,BLUE,TRIM8#

main73297-30020-05iLS120,YS120..LHD..STD198308-198509

W/O FR SEAT BELT,BEIGE,BEIGE,TRIM4#

main73297-30020-06iLS120,MS122,YS120..LHD..(DLX,STD)..GEN198509-198708

BROWN,BROWN,TRIM4#

63298LID, CENTER PILLAR GARNISH BELT HOLE, LH

main73298-30020-04iLS120,YS120..LHD..STD198308-198708

W/O FR SEAT BELT,BLUE,BLUE,TRIM8#

main73298-30020-05iLS120,YS120..LHD..STD198308-198509

W/O FR SEAT BELT,BEIGE,BEIGE,TRIM4#

main73298-30020-06iLS120,MS122,YS120..LHD..(DLX,STD)..GEN198509-198708

BROWN,BROWN,TRIM4#

6777112010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12010¥170

9018905018

main90189-05018¥120

9046305024

main90463-05024¥140

9046708030

main90467-08030¥170

9046710011

main90467-10011¥180

9046805011

main90468-05011¥120

9046805060

main90468-05060¥90

9046825002

main90468-25002¥260

9356055025

main93560-55025¥110

42 parts on this diagram · 3 diagrams in section
