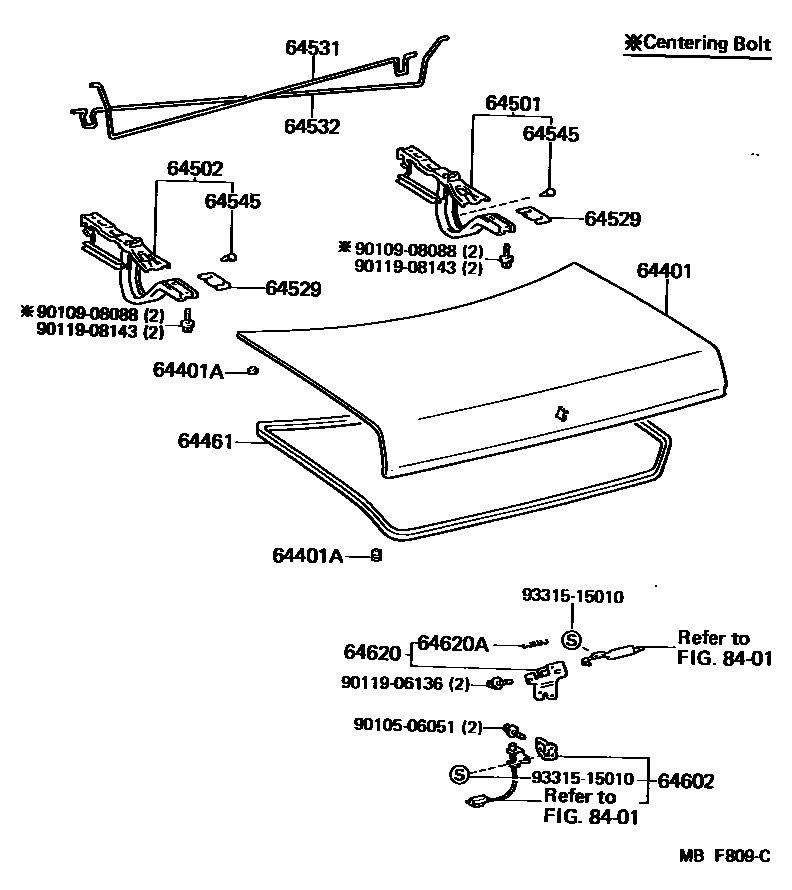

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-30500iLS120,MS12#,YS120..SED198308-198708

main64401-30510iMS122,125..HT198509-198708

main64401-30580iLS120,MS12#,YS120..SED198408-198510

sub64401-30500

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09021iLS120,MS12#,YS120..HT,SED198308-198708

RR

sub90541-09068

main90541-09106iLS120,MS12#,YS120..HT,SED198308-198708

FR

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-30080iLS120,MS12#,YS120..SED198308-198509

sub64461-30120

main64461-30120iLS120,MS12#,YS120..SED198509-198708

main64461-30130iMS122,125..HT198509-198708

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-30110iLS120,MS12#,YS120..SED198308-198708

main64510-30120iMS122,125..HT198509-198708

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-30060iLS120,MS12#,YS120..SED198308-198708

sub64510-30110

main64520-30070iMS122,125..HT198509-198708

sub64510-30120

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-14010iLS120,MS12#,YS120..HT,SED198308-198708

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-30140iLS120,MS12#,YS120..SED198308-198708

main64531-30170iMS122,125..HT198509-198708

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-30140iLS120,MS12#,YS120..SED198308-198708

main64532-30170iMS122,125..HT198509-198708

64545CUSHION, LUGGAGE DOOR HINGE

main90541-07007iLS120,MS12#,YS120..HT,SED198308-198708

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-30060iLS120,MS12#,YS120..SED198308-198310

sub64620-30061

main64620-30061iLS120,MS12#,YS120..HT,SED198310-198708

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-12090iLS120,YS120..STD198308-198407

W/O *EL

sub64610-20080

main64610-20080iLS120,YS120..STD198407-198708

W/O *EL

main64610-30050iLS120,MS12#,YS120..HT,SED198308-198708

W/*EL

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-07010iLS120,MS12#,YS120..HT,SED198308-198708

W/*EL

main90506-08001iLS120,YS120..STD198308-198708

W/O *EL

8401

9010506051

main90105-06051

9010908088

main90109-08088

9011906136

main90119-06136

9011908143

main90119-08143

9331515010

main93315-15010

18 parts on this diagram · 1 diagram in section
