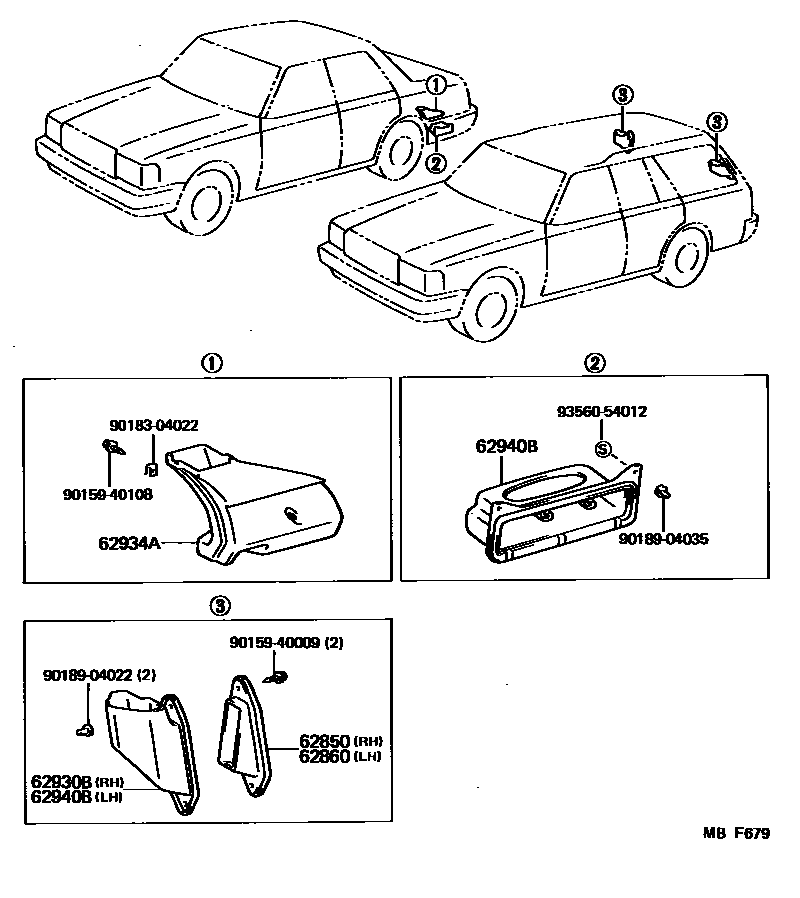

ROOF SIDE VENTILATOR

62850VALVE ASSY, ROOM PRESSURE RELIEF, RH

main62850-91701iMS122..WG198308-198708

62860VALVE ASSY, ROOM PRESSURE RELIEF, LH

main62850-91701iMS122..WG198308-198708

62930BDUCT ASSY, QUARTER VENT, RH

main62930-91701iMS122..WG198308-198708

62934ADUCT, QUARTER VENT, UPPER LH

main62933-30030iLS120,MS12#,YS120..HT,SED198308-198708

62940BDUCT ASSY, QUARTER VENT, LH

main62940-30040iLS120,MS12#,YS120..HT,SED198308-198708

main62940-91701iMS122..WG198308-198708

9015940009

main90159-40009

9015940108

main90159-40108

9018304022

main90183-04022

9018904022

main90189-04022

9018904035

main90189-04035

9356054012

main93560-54012

11 parts on this diagram · 1 diagram in section
