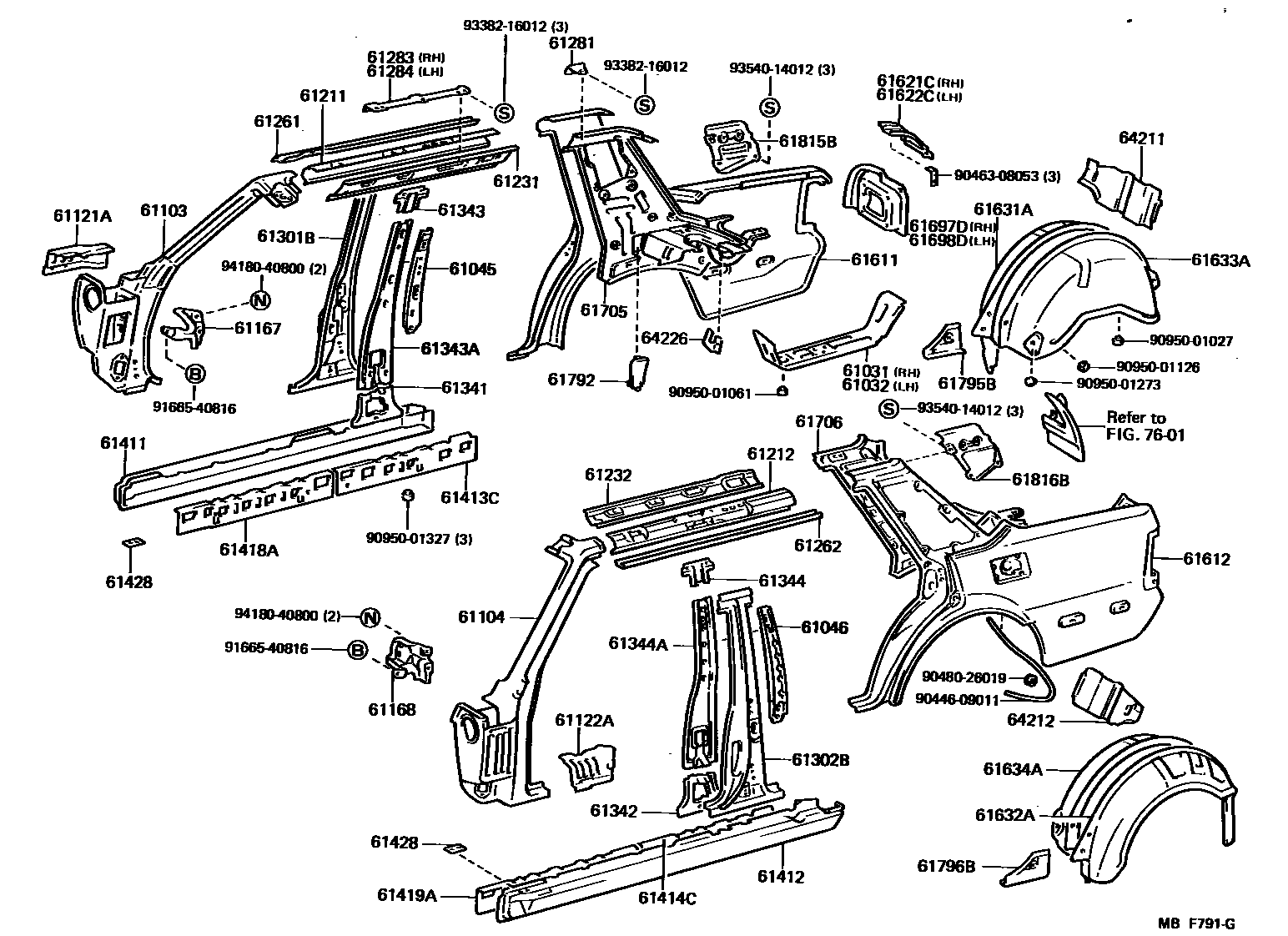

SIDE MEMBER

0001 1 0002 1 0003 1 0004 1

61031EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER RH

main61031-30030iLS120,MS12#,YS120..HT,SED198509-198708

main61031-30050iLS120,MS12#,YS120..SED198308-198509

61032EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER LH

main61628-30060iLS120,MS12#,YS120..HT,SED198308-198708

61045REINFORCE SUB-ASSY, BELT TO CENTER PILLAR, RH

main61045-30030iLS120,MS12#,YS120..(SED,WG)..(EUG,GEN,SAA,SWZ)198308-198708

main61045-30040iMS122,125..HT198509-198708

main61045-30050iMS123..ARL198308-198708

61046REINFORCE SUB-ASSY, BELT TO CENTER PILLAR, LH

main61046-30030iLS120,MS12#,YS120..(SED,WG)..(EUG,GEN,SAA,SWZ)198308-198708

main61046-30040iMS122,125..HT198509-198708

main61046-30050iMS123..ARL198308-198708

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-30100iLS120..RHD..4H198308-198708

main61021-30110iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)198308-198708

main61021-30120iLS120,MS12#,YS120..SED..LHD198308-198708

main61021-30140iMS122,125..HT198509-198708

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-30100iLS120..RHD..4H198308-198708

main61022-30110iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)198308-198708

main61022-30120iLS120,MS12#,YS120..SED..LHD198308-198708

main61022-30140iMS122,125..HT198509-198708

61121APANEL, COWL SIDE, OUTER UPPER RH

main61125-30030iLS120,MS12#,YS120198308-198708

61122APANEL, COWL SIDE, OUTER UPPER LH

main61126-30020iLS120,MS12#,YS120198308-198708

61167BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH

main61165-30070iLS120,MS12#,YS120..LHD198308-198708

61168BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH

main61166-30060iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)198308-198708

61211RAIL, ROOF SIDE, OUTER RH

main61211-30120iLS120,MS12#,YS120..SED198308-198708

main61211-30130iMS122,125..HT198509-198708

main61211-91703iMS122..WG198308-198708

61212RAIL, ROOF SIDE, OUTER LH

main61212-30120iLS120,MS12#,YS120..SED198308-198708

main61212-30130iMS122,125..HT198509-198708

main61212-91703iMS122..WG198308-198708

61231RAIL, ROOF SIDE, INNER RH

main61231-30130iLS120,MS122,YS120..DLX,STD198308-198708

main61231-30150iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198708

main61231-30181iMS122,125..HT198509-198708

main61231-30191iMS122,125..HT198509-198708

W/MOON ROOF

main61231-91704iMS122..WG198308-198708

61232RAIL, ROOF SIDE, INNER LH

main61232-30130iLS120,MS122,YS120..DLX,STD198308-198708

main61232-30160iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198708

main61232-30181iMS122,125..HT198509-198708

main61232-30191iMS122,125..HT198509-198708

main61232-91704iMS122..WG198308-198708

61261CHANNEL, ROOF DRIP, RH

main61261-30090iLS120,MS12#,YS120..SED198308-198708

main61261-30120iMS122,125..HT198509-198708

main61263-91701iMS122..WG198308-198708

61262CHANNEL, ROOF DRIP, LH

main61262-30090iLS120,MS12#,YS120..SED198308-198708

main61262-30120iMS122,125..HT198509-198708

main61264-91701iMS122..WG198308-198708

61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1

main61281-30020×2iMS12#..SED..(EUG,GEN,SAA,SWZ)198308-198708

main61281-30030×2iMS122,125..HT198509-198708

61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH

main61283-30020iMS122,125..(HT,SED)..(ROY,SAL)198509-198708

61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH

main61284-30020iMS122,125..(HT,SED)..(ROY,SAL)198509-198708

61301BPILLAR, CENTER BODY, OUTER RH

main61301-30070iLS120,MS12#,YS120..SED..(EUG,GEN,SWZ)198308-198506

main61301-30080iMS122..WG198308-198506

main61301-30100iMS122,125..HT198509-198708

61302BPILLAR, CENTER BODY, OUTER LH

main61302-30090iLS120,MS12#,YS120..EUG,GEN,SWZ198308-198506

main61302-30100iLS120,MS12#,YS120..ARL,EUG,GEN,SWZ198506-198708

main61302-30120iMS12#..SAA198408-198708

main61302-30130iMS122,125..HT198509-198708

61341PILLAR, CENTER BODY, INNER LOWER RH

main61345-30060iLS120,MS12#,YS120..SED,WG198308-198708

main61345-30070iMS122,125..HT198509-198708

61342PILLAR, CENTER BODY, INNER LOWER LH

main61346-30060iLS120,MS12#,YS120..SED,WG198308-198708

main61346-30070iMS122,125..HT198509-198708

61343PILLAR, CENTER BODY, INNER UPPER RH

main61341-30090iLS120,MS12#,YS120..SED,WG198308-198708

main61341-30100iMS122,125..HT198509-198708

61343APILLAR, CENTER BODY, INNER RH

main61343-30080iLS120,MS12#,YS120..SED,WG198308-198708

main61343-30090iMS122,125..HT198509-198708

61344PILLAR, CENTER BODY, INNER UPPER LH

main61342-30080iLS120,MS12#,YS120..SED,WG198308-198708

main61342-30090iMS122,125..HT198509-198708

61344APILLAR, CENTER BODY, INNER LH

main61344-30080iLS120,MS12#,YS120..SED,WG198308-198708

main61344-30090iMS122,125..HT198509-198708

61411PANEL, ROCKER, OUTER RH

main61411-30230iLS120,MS12#,YS120198308-198708

61412PANEL, ROCKER, OUTER LH

main61412-30230iLS120,MS12#,YS120198308-198708

61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH

main61413-30020iLS120,MS12#,YS120198308-198708

61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH

main61414-30020iLS120,MS12#,YS120198308-198708

61418AREINFORCEMENT, ROCKER PANEL, RH

main61418-30050iLS120,MS12#,YS120198308-198708

61419AREINFORCEMENT, ROCKER PANEL, LH

main61419-30050iLS120,MS12#,YS120198308-198708

61428GUSSET, ROCKER OUTER PANEL

main61428-30040×2iLS120,MS12#,YS120198308-198708

61611PANEL, QUARTER, RH

main61601-30913iLS120,MS12#,YS120..SED198308-198708

main61601-30916iMS122,125..HT198509-198708

main61601-91710iMS122..WG198308-198509

main61601-91711iMS122..WG198509-198708

61612PANEL, QUARTER, LH

main61602-30912iLS120,MS12#,YS120..SED198308-198708

W/POLE ANTENA

main61602-30913iLS120,YS120..STD198308-198708

W/O POLE ANTENA

main61602-30915iMS122,125..HT198509-198708

sub61602-30914

main61602-91712iMS122..WG198308-198509

main61602-91714iMS122..WG198509-198708

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-30070iLS120,MS12#,YS120..SED198308-198708

main61621-30080iMS122,125..HT198509-198708

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-30060iLS120,MS12#,YS120..SED198308-198708

main61622-30070iMS122,125..HT198509-198708

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-30090iLS120,MS12#,YS120..HT,SED198308-198708

main61631-91701iMS122..WG198308-198708

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-30090iLS120,MS12#,YS120..HT,SED198308-198708

main61632-91701iMS122..WG198308-198708

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61603-30910iLS120,MS122,YS120..HT,SED198308-198708

main61603-30911iMS123,125198308-198708

main61603-91591iMS122..WG198308-198708

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61604-30909iLS120,MS122,YS120..HT,SED198308-198708

main61604-30910iMS123,125198308-198708

sub61604-30911

main61604-91591iMS122..WG198308-198708

61697DHOUSING, QUARTER PANEL END, RH

main61697-30020iLS120,MS12#,YS120..SED198308-198708

main61697-30030iMS122,125..HT198509-198708

61698DHOUSING, QUARTER PANEL END, LH

main61698-30020iLS120,MS12#,YS120..SED198308-198708

main61698-30030iMS122,125..HT198509-198708

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61703-30900iLS120,MS122,YS120..DLX,STD198308-198708

main61703-30901iLS120,MS12#,YS120..SED..(ROY,SAL)..(EUG,GEN,SAA,SWZ)198308-198509

main61703-30902iMS123..ARL198308-198708

main61703-30903iMS122,125..SED..ROY198509-198708

W/RR SLIDE SEAT

main61703-30908iMS125..HT198509-198708

W/RR SLIDE SEAT

main61703-30909iMS125..HT198509-198708

W/MOON ROOF,RR SLIDE SEAT

main61703-30910iMS122,125..HT198509-198708

main61703-30911iMS122,125..HT198509-198708

W/MOON ROOF

main61705-91715iMS122..WG198308-198708

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61704-30900iLS120,MS122,YS120..DLX,STD198308-198708

main61704-30901iMS125..SED..4FC;MS122..SED..(ROY,SAL)198509-198708

main61704-30902iMS123..ARL198308-198708

main61704-30903iMS12#..ROY..(GEN,SAA)198308-198509

W/RR SLIDE SEAT

main61704-30907iMS125..HT198509-198510

W/RR SLIDE SEAT

main61704-30908iMS125..HT198509-198708

W/MOON ROOF,RR SLIDE SEAT

main61704-30909iMS122,125..HT198509-198708

main61704-30910iMS122,125..HT198509-198708

W/MOON ROOF

main61706-91720iMS122..WG198308-198708

61792COVER, ROOF SIDE INNER SERVICE HOLE

main61791-30030iLS120,MS12#,YS120..SED198308-198708

RH

main61791-30040iMS122,125..HT198509-198708

RH

main61792-30030iLS120,MS12#,YS120..SED198308-198708

LH

main61792-30040iMS122,125..HT198509-198708

LH

61795BEXTENSION, QUARTER WHEEL HOUSE, RH

main61797-30030iLS120,MS12#,YS120198308-198708

61796BEXTENSION, QUARTER WHEEL HOUSE, LH

main61798-30030iLS120,MS12#,YS120198308-198708

61815BCOVER, ROOF SIDE, INNER UPPER RH

main61815-30040iLS120,MS12#,YS120..SED198308-198708

main61815-30050iMS122,125..HT198509-198708

61816BCOVER, ROOF SIDE, INNER UPPER LH

main61816-30040iLS120,MS12#,YS120..SED198308-198708

main61816-30050iMS122,125..HT198509-198708

64211STRAINER, PACKAGE TRAY TO FLOOR, RH

main64211-30070iLS120,MS12#,YS120..HT,SED198308-198708

64212STRAINER, PACKAGE TRAY TO FLOOR, LH

main64212-30060iLS120,MS12#,YS120..HT,SED198308-198708

64226HANGER, REAR SEAT CUSHION SUPPORT

main64226-22010×2iMS12#..GEN198308-198509

W/SLIDE SEAT

7601

9044609011

main90446-09011

9046308053

main90463-08053

9048026019

main90480-26019

9095001027

main90950-01027

9095001061

main90950-01061

9095001126

main90950-01126

9095001273

main90950-01273

9095001327

main90950-01327

9166540816

main91665-40816

9338216012

main93382-16012

9354014012

main93540-14012

9418040800

main94180-40800

67 parts on this diagram · 4 diagrams in section
