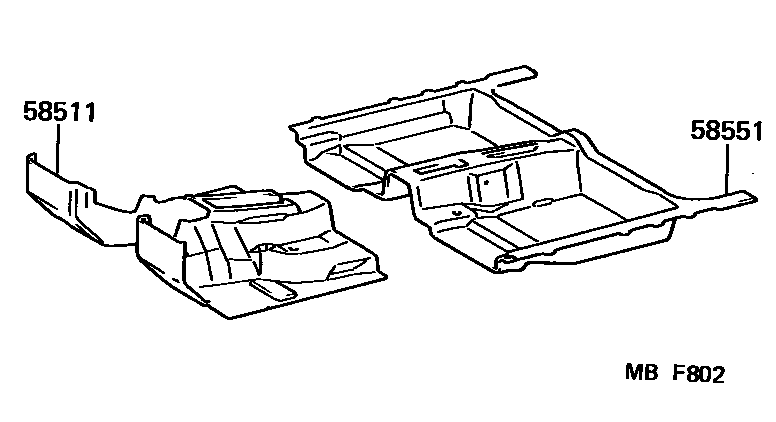

MAT & CARPET

0001 1 0002 1

58511MAT, FLOOR, FRONT

main58510-3A080iLS120,YS120..LHD..4H198308-198708

W/O RR DUCT

main58510-3A090iYS120..LHD..4F198308-198708

W/O RR DUCT

main58510-3A180iLS120,YS120..RHD..4F¥30,900198308-198708

W/O RR DUCT

main58510-3A270iLS120,YS120..RHD..4F¥30,900198308-198708

W/RR DUCT

main58510-3A280iLS120..RHD..4H¥30,900198308-198708

W/O RR DUCT

main58510-3A290iLS120,YS120..LHD..4H198308-198708

W/RR DUCT

main58510-3A300iYS120..LHD..4F¥30,900198308-198708

W/RR DUCT

58551MAT, FLOOR, REAR

main58540-30740iLS120,YS120..4H¥24,700198308-198708

W/FR SEAT BELT

main58540-30750iLS120,YS120..4H198308-198708

W/O FR SEAT BELT

main58540-30760iLS120,YS120..4F¥24,700198308-198708

W/FR SEAT BELT

main58540-30780iYS120..LHD..4F198308-198708

W/O FR SEAT BELT

2 parts on this diagram · 2 diagrams in section
