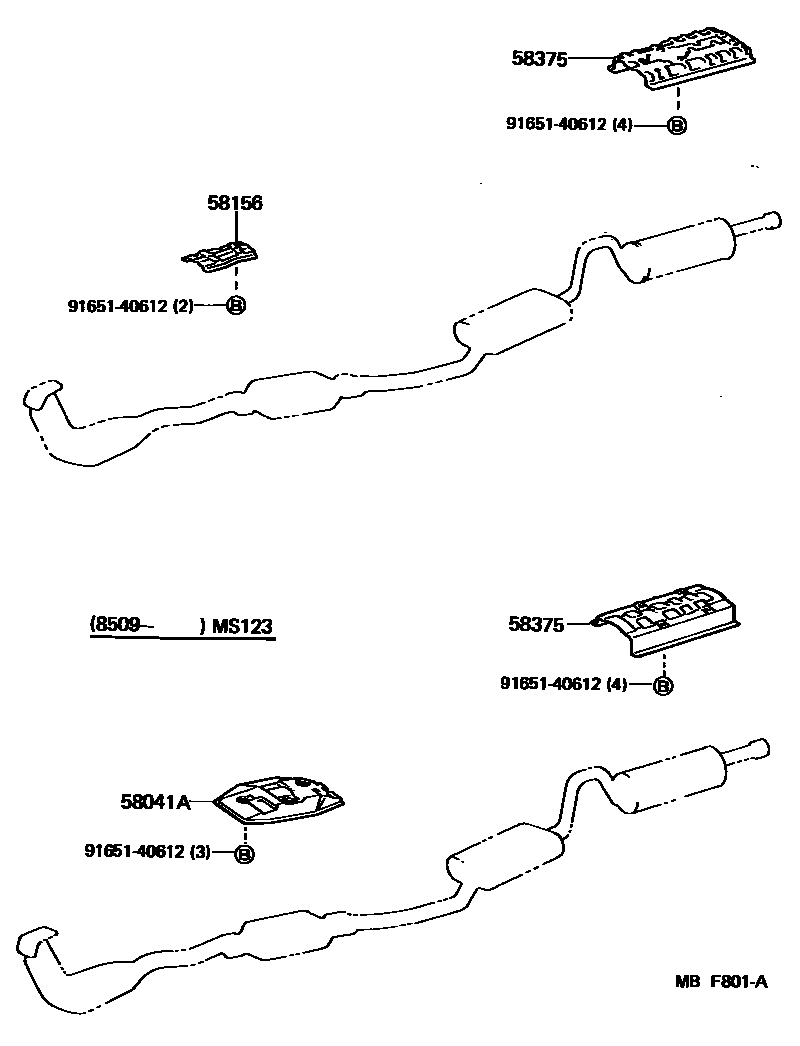

FLOOR INSULATOR

58041AINSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.1

main58041-30040iMS123198509-198708

sub58041-30050

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-30050iMS12#,YS120..ARL,GEN,SAA198308-198708

58375INSULATOR, REAR FLOOR HEAT, NO.1

main58321-30050iLS120,MS122,YS120..HT,SED198308-198708

main58321-30060iMS123,125198308-198505

sub58321-30070

main58321-30070iMS123,125198505-198708

sub58321-30080

9165140612

main91651-40612

4 parts on this diagram · 1 diagram in section
