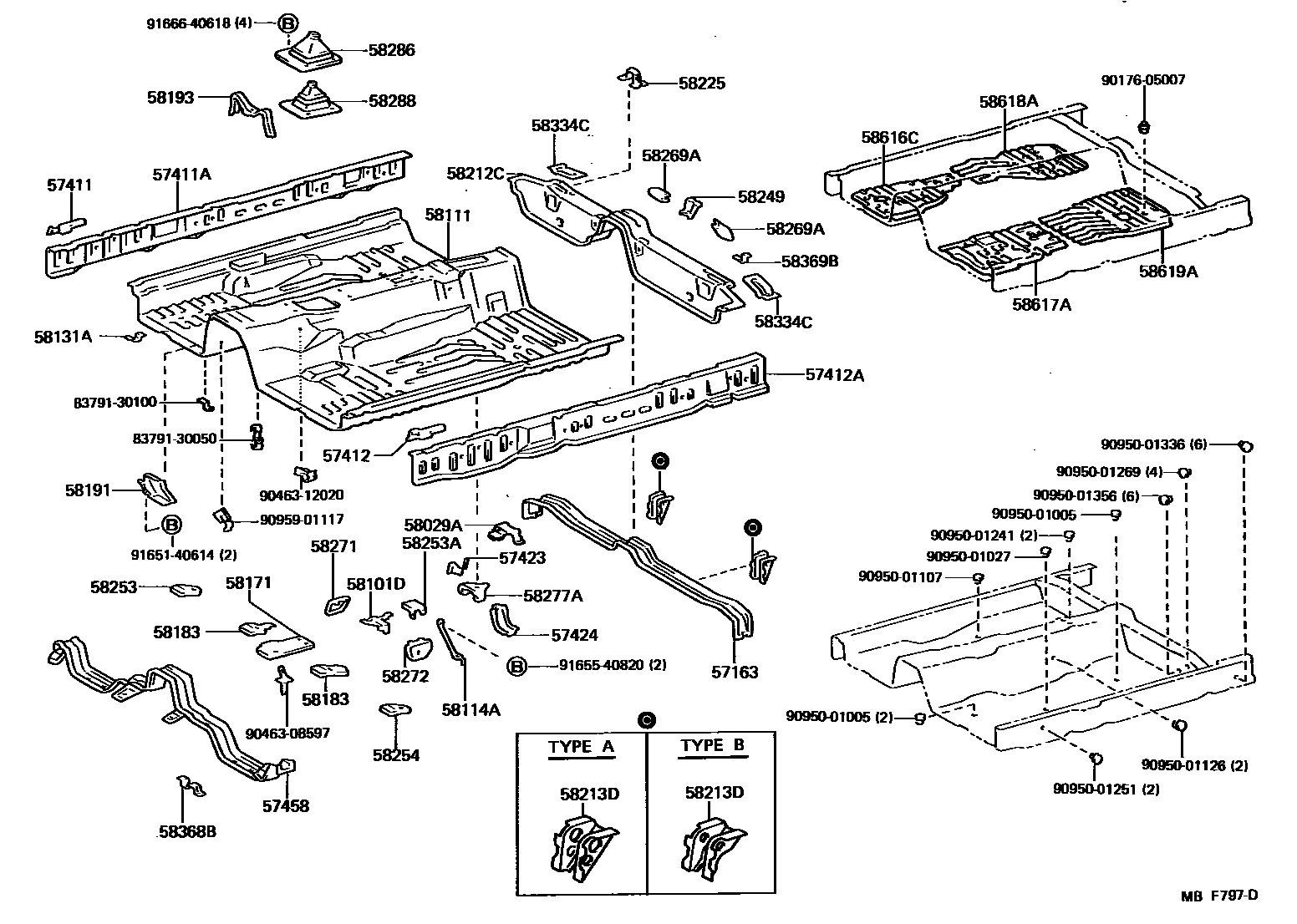

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1

57163MEMBER, FRONT FLOOR CROSS, NO.2

main57206-91704iMS122..WG198308-198708

main57459-30030iLS120,MS12#,YS120..HT,SED198509-198708

main57459-30040iMS123,125198308-198509

57411PLATE, FLOOR SIDE RAIL, RH

main57421-30020iLS120,MS12#,YS120198308-198708

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-30040iLS120,MS12#,YS120198308-198708

57412PLATE, FLOOR SIDE RAIL, LH

main57421-30020iLS120,MS12#,YS120198406-198708

main57422-30020iLS120,MS12#,YS120198308-198406

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-30040iLS120,MS12#,YS120198308-198708

57423BRACKET, FRONT FLOOR REINFORCEMENT, RH

main57423-30010iMS123,125198308-198708

57424BRACKET, FRONT FLOOR REINFORCEMENT, LH

main57424-30010iMS123,125198308-198708

57458MEMBER, FRONT FLOOR CROSS, NO.1

main57408-30070iLS120,MS12#,YS120..4F,4FC,5F198308-198708

main57408-30080iLS120,MS12#,YS120..4H,4HC198308-198708

58029ABRACKET SUB-ASSY, PARKING BRAKE WIRE CLAMP

main58029-30010iLS120,YS120..4H198608-198708

main58029-30020iMS122..4FC,4HC,5F198608-198708

main58029-30030iMS123,125198608-198708

58101DBRACKET, PARKING BRAKE CABLE GUIDE

main58265-30020iLS120,MS122,YS120198308-198708

sub58265-30030

58111PAN, FRONT FLOOR

main58111-30240iLS120,MS12#,YS120..4F,4FC,5F198308-198608

sub90119-11013

main58111-30241iLS120,MS12#,YS120..4F,4FC,5F198608-198708

main58111-30250iLS120,MS12#,YS120..4H,4HC198308-198608

sub90119-11013

main58111-30251iLS120,MS122,125,YS120..4H,4HC198608-198708

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-30030iMS123,125198308-198708

58131ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-12020iLS120,MS12#,YS120198308-198708

sub58131-14030

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-30040iMS122..RHD..ATM198308-198708

sub58107-30070

main58107-30060iMS123,125..RHD..GEN198308-198708

sub58107-30050

main58171-30010iLS120,MS122,123,YS120..4F,5F198308-198708

sub58171-30050

58183BRACKET, FRONT SEAT MOUNTING, INNER

main58183-30020iLS120,MS12#,YS120..4F,4FC,5F198308-198708

RH

main58184-30020iLS120,MS12#,YS120..4F,4FC,5F198308-198708

LH

58191FOOTREST, FRONT FLOOR

main58191-30010iLS120,MS12#..RHD..(ROY,SAL)198308-198708

main58192-30010iLS120,MS12#,YS120..LHD..(ROY,SAL)198308-198708

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-30010iMS12#,YS120;LS120..4F,5F;LS120..LHD..STD198308-198708

58212CPAN, CENTER FLOOR, FRONT

main58212-30020iLS120,MS12#,YS120198308-198410

main58212-30021iLS120,MS12#,YS120198410-198708

sub58212-30030

sub58215-30020

sub58216-30010

58213DREINFORCEMENT, CENTER FLOOR PANEL

main58213-30020×2iMS123198308-198410

main58213-30030iMS123,125198509-198708

TYPE B

main58213-91701iMS122..WG198603-198608

main58213-91702iMS122..WG198608-198708

58225HOLDER, REAR SEAT CUSHION

main58225-30040×2iLS120,MS12#,YS120..HT,SED198308-198708

58249HANGER, PARKING BRAKE RETURN SPRING

main58249-30020iMS122..LHD..4FC;LS120,MS122,YS120..MTM198308-198708

main58249-30030iMS123,125198308-198708

58253BRACKET, FRONT SEAT, OUTER REAR RH

main57468-30030iLS120,MS12#,YS120198308-198708

58253ABRACKET, PARKING CABLE CLAMP

main58253-30030iLS120,MS122,YS120..4H198308-198608

sub58253-30050

58254BRACKET, FRONT SEAT, OUTER REAR LH

main57469-30040iLS120,MS12#,YS120198308-198708

58269ABRACKET, PARKING BRAKE CABLE GUIDE, NO.3

main58266-30010iMS123,125198308-198708

RH

main58269-30050iLS120,MS12#,YS120198308-198708

LH

58271PLATE, BELT ANCHOR, FRONT

main58271-30040iLS120,MS122,YS120198509-198608

main58271-30050iMS125..HT198509-198608

main58271-30060iLS120,MS12#,YS120198608-198708

58272REINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58272-30040iLS120,MS122,YS120198509-198608

main58272-30050iMS125..HT198509-198608

main58272-30060iLS120,MS12#,YS120198608-198708

58277ABRACKET, PARKING BRAKE CABLE GUIDE, NO.4

main58269-30060iLS120,MS122,YS120..4H198308-198708

main58269-30070iLS120,MS122,YS120..4F,5F198308-198708

main58269-30080iMS122..RHD..ATM198308-198708

main58277-30010iMS123,125198308-198608

sub58277-30020

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-30020iLS120,MS122,123,YS120..4F,5F198308-198708

58288SEAL, SHIFT LEVER BOOT

main58288-30011iLS120,MS122,123,YS120..4F,5F198308-198708

58334CREINFORCEMENT, NO.5 BODY MOUNTING

main58334-30030×2iLS120,MS12#,YS120198308-198708

58368BBRACKET, FUEL TUBE, NO.2

main58368-30020iLS120,MS12#,YS120198308-198708

sub58368-30030

58369BBRACKET, FUEL TUBE, NO.3

main58369-30010iLS120,MS12#,YS120198308-198412

sub58369-30040

main58369-32010iLS120,MS12#,YS120..HT,SED198412-198708

PLANT.A21-A26

58616CPANEL, FRONT FLOOR SILENCER, NO.1

main58631-30020iLS120,MS12#,YS120198408-198708

58617APANEL, FRONT FLOOR SILENCER, NO.2

main58632-30010iLS120,MS12#,YS120198408-198708

58618APANEL, FRONT FLOOR SILENCER, NO.3

main58633-30020iLS120,MS12#,YS120198408-198708

58619APANEL, FRONT FLOOR SILENCER, NO.4

main58634-30010iLS120,MS12#,YS120198408-198708

8379130050

main83791-30050

8379130100

main83791-30100

9017605007

main90176-05007

9046308597

main90463-08597

9046312020

main90463-12020

9095001005

main90950-01005

9095001027

main90950-01027

9095001107

main90950-01107

9095001126

main90950-01126

9095001241

main90950-01241

9095001251

main90950-01251

9095001269

main90950-01269

9095001336

main90950-01336

9095001356

main90950-01356

9095901117

main90959-01117

9165140614

main91651-40614

9165540820

main91655-40820

9166640618

main91666-40618

55 parts on this diagram · 4 diagrams in section
