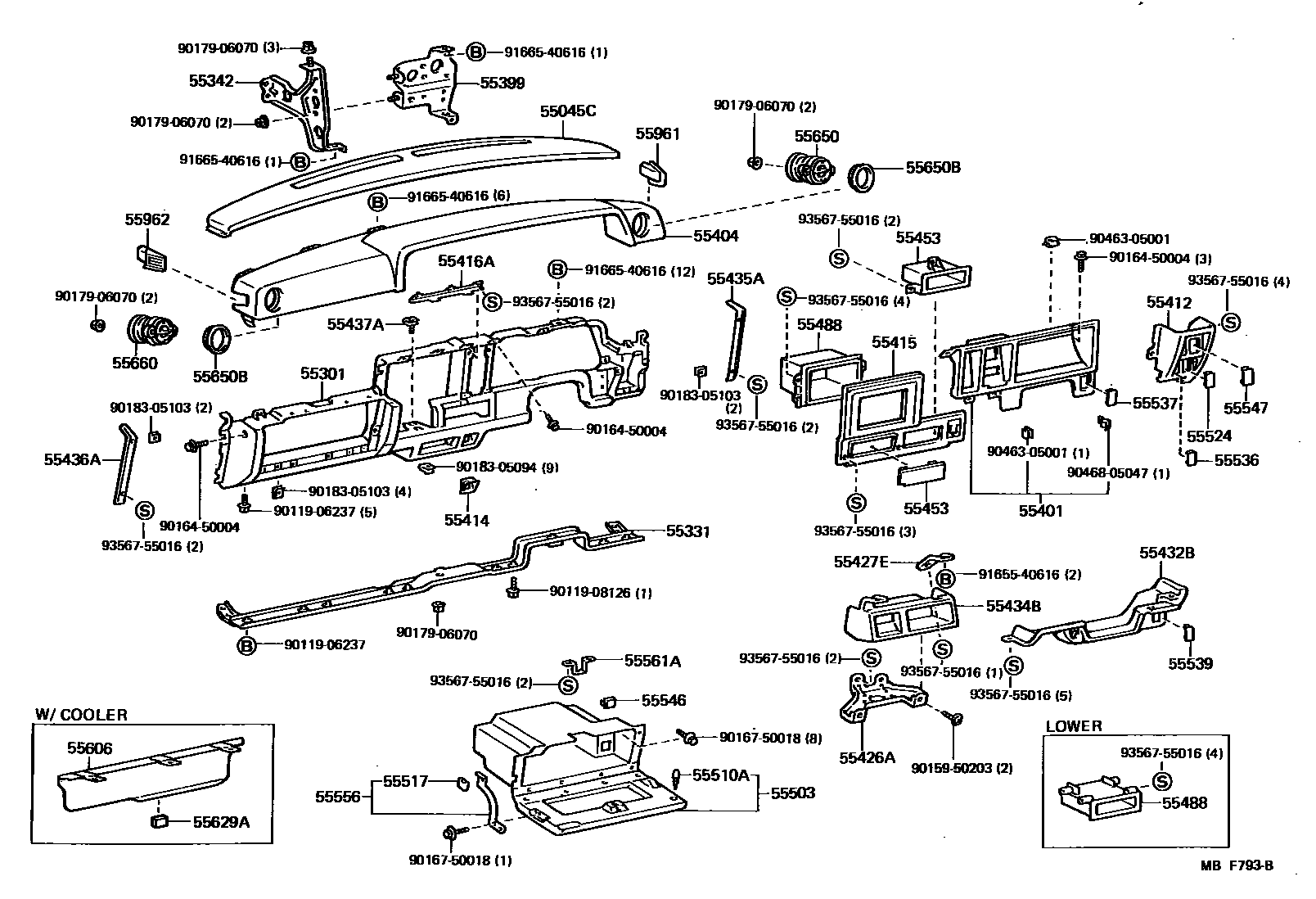

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55045CPANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER

main55044-30120iLS120..RHD..4H198308-198708

55301PANEL SUB-ASSY, INSTRUMENT

main55311-30220-04iLS120..RHD..4H198308-198509

BLUE,BLUE,TRIM8#

sub55311-30H00

main55311-30221-04iLS120..RHD..4H198509-198708

BLUE,BLUE,TRIM8#

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-30121iLS120..RHD..4H198308-198708

main55330-30010iLS120,MS12#,YS120..LHD198308-198509

main55330-30020iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)198308-198509

main55330-30040iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)198509-198708

main55330-30050iLS120,MS122,125,YS120..LHD198509-198708

55342BRACE, INSTRUMENT PANEL, NO.2

main55306-30090iLS120..RHD..4H198308-198708

main55307-30030iLS120,MS12#,YS120..LHD198308-198708

main55307-30040iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)198308-198708

55399PLATE, TAXIMETER MOUNTING

main55399-30050iLS120..RHD..4H198308-198708

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55404-30540iLS120..RHD..4H198308-198708

main55404-30550iLS120,MS12#,YS120..LHD198308-198708

main55404-30570iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)198308-198708

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-30260-04iLS120..RHD..4H198308-198708

BLUE,BLUE,TRIM8#

main55401-30270-02iLS120,MS12#,YS120..LHD..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main55401-30270-04iLS120,MS12#,YS120..SED..LHD198308-198509

BLUE,BLUE,TRIM8#

main55401-30270-05iLS120,MS12#,YS120..LHD198308-198509

BEIGE,BEIGE,TRIM4#

main55401-30270-06iMS125..SED..LHD;LS120,MS122,YS120..(HT,SED)..LHD198509-198708

BROWN,BROWN,TRIM4#

main55401-30270-12iMS122,125..LHD..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main55401-30290-02iLS120,MS12#..RHD..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main55401-30290-04iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)198308-198708

BLUE,BLUE,TRIM8#

main55401-30290-05iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)198308-198509

BEIGE,BEIGE,TRIM4#

main55401-30290-06iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)198509-198708

BROWN,BROWN,TRIM4#

main55401-30290-12iMS12#..RHD198509-198708

MAROON,MAROON,TRIM3#

55412PANEL, INSTRUMENT CLUSTER FINISH, END

main55414-30090-04iLS120..RHD..4H198308-198708

BLUE,BLUE,TRIM8#

55414BEZEL, CIGAR LIGHTER HOLE

main55477-14050iMS12#,YS120;LS120..4F,5F;LS120..LHD..STD198308-198708

main55477-30030iLS120..RHD..4H198308-198708

55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-30190iLS120..RHD..4H198308-198708

main55412-30200-02iMS12#..RHD198509-198708

MAROON,MAROON,TRIM3#

main55412-30200-04iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)198308-198708

BLUE,BLUE,TRIM8#

main55412-30200-05iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)198308-198509

BEIGE,BEIGE,TRIM4#

main55412-30200-06iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)198509-198708

BROWN,BROWN,TRIM4#

main55412-30200-12iLS120,MS12#..RHD..(ROY,SAL)198308-198509

DEEP MAROON,DEEP MAROON,TRIM3#

main55412-30210-02iLS120,MS12#,YS120..LHD..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main55412-30210-04iLS120,MS12#,YS120..SED..LHD198308-198509

BLUE,BLUE,TRIM8#

main55412-30210-05iLS120,MS12#,YS120..LHD198308-198509

BEIGE,BEIGE,TRIM4#

main55412-30210-06iMS125..SED..LHD;LS120,MS122,YS120..(HT,SED)..LHD198509-198708

BROWN,BROWN,TRIM4#

main55412-30210-12iMS122,125..LHD..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main55412-30220-04iYS120..LHD..STD198308-198708

TAXI,IRAQ SPEC,BLUE,BLUE,TRIM8#

main55412-30220-05iYS120..LHD..STD198308-198509

TAXI,IRAQ SPEC,BEIGE,BEIGE,TRIM4#

main55412-30220-06iYS120..LHD198509-198708

TAXI,IRAQ SPEC,BROWN,BROWN,TRIM4#

55416ARETAINER, METER HOOD, NO.1

main55416-30070iLS120..RHD..4H198308-198708

55426ABRACKET, CLUSTER FINISH PANEL, NO.1

main55426-30010iLS120..RHD..4H198308-198708

55427EBRACKET, CLUSTER FINISH PANEL, NO.2

main55427-30100iLS120..RHD..4H198308-198708

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-30120-04iLS120..RHD..4H198308-198708

BLUE,BLUE,TRIM8#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55413-30070-04iLS120..RHD..4H198308-198708

BLUE,BLUE,TRIM8#

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-30110-04iLS120..RHD..4H198308-198708

BLUE,BLUE,TRIM8#

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-30060-04iLS120..RHD..4H198308-198708

BLUE,BLUE,TRIM8#

55437ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1

main55437-30060iLS120..RHD..4H198308-198708

55453COVER, RADIO TUNER OPENING

main55522-14080iLS120..4F;YS120..STD;LS120..LHD..STD198308-198708

sub55522-20070

main55522-30040iLS120..RHD..4H198308-198708

RH

main55522-30060iLS120..RHD..4H198308-198708

LH

55488COVER, STEREO OPENING

main55521-16010iLS120..4F;YS120..STD;LS120..LHD..STD198308-198708

LWR

sub55521-16030

main55521-30100iLS120..RHD..4H198308-198708

UPR

55503COMPARTMENT SUB-ASSY, GLOVE

main55506-30030iLS120,MS12#,YS120..LHD198308-198708

main55506-30050iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)198308-198708

main55550-30190-04iLS120..RHD..4H198308-198708

BLUE,BLUE,TRIM8#

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-30200-02iLS120,MS12#,YS120..ROY,SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main55550-30200-04iLS120..4F,5F;MS123,125,YS120;LS120..LHD..STD198308-198509

BLUE,BLUE,TRIM8#

main55550-30200-05iMS12#,YS120;LS120..4F,5F;LS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

main55550-30200-06iLS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC)198509-198708

BROWN,BROWN,TRIM4#

main55550-30200-12iMS12#..ROY,SAL198509-198708

MAROON,MAROON,TRIM3#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015×2iMS12#,YS120;LS120..4F,5F;LS120..LHD..STD198308-198708

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iLS120,MS12#,YS120198308-198708

55524COVER, SWITCH BACE HOLE

main55527-30010-02iLS120,MS12#,YS120..ROY,SAL198308-198708

DEEP MAROON,RED/MAROON,TRIM3#

main55527-30010-04iLS120..4F,5F;MS123,125,YS120;LS120..LHD..STD198308-198509

BLUE,BLUE,TRIM8#

main55527-30010-05iMS12#,YS120;LS120..4F,5F;LS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

main55527-30010-06iLS120..LHD;MS123,YS120;LS120,MS122..(SED,WG)..(4F,4FC,4HC,5F)..(DLX,SAL,STD)198509-198708

BROWN,BROWN,TRIM4#

main55527-30010-12iMS123;MS122..(SED,WG)..SAL198509-198708

MAROON,MAROON,TRIM3#

main55539-32010-04iLS120..RHD..4H198308-198708

BLUE,BLUE,TRIM8#

sub55539-32030

55536COVER, REAR WINDOW WIPER SWITCH HOLE

main55527-30010-02iLS120,MS12#,YS120..LHD..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main55527-30010-04iLS120,MS12#,YS120..SED..LHD198308-198509

BLUE,BLUE,TRIM8#

main55527-30010-05iLS120,MS12#,YS120..LHD198308-198509

BEIGE,BEIGE,TRIM4#

main55527-30010-06iLS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC)198509-198708

BROWN,BROWN,TRIM4#

main55527-30010-12iMS12#..ROY,SAL198509-198708

MAROON,MAROON,TRIM3#

main55539-32010-04iLS120..RHD..4H198308-198708

BLUE,BLUE,TRIM8#

sub55539-32030

55537COVER, REAR WINDOW DEFOGGER SWITCH HOLE

main55537-30060iLS120,MS122,YS120..(SED,WG)..SAL198308-198701

main55539-32010-01iLS120..RHD..4H198308-198708

BLACK,BLACK

sub55539-32030

55539COVER, SPARE SWITCH HOLE

main55539-24010-04iLS120..RHD..4H198308-198708

BLUE,BLUE,TRIM8#

sub55539-14030

sub55539-20030

main55539-32010-02iLS120,MS12#,YS120..SED..LHD..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub55539-32030

main55539-32010-04iLS120,MS12#,YS120..(HT,SED)..LHD198308-198708

BLUE,BLUE,TRIM8#

sub55539-32030

main55539-32010-05iLS120,MS12#,YS120..SED..LHD198308-198509

BEIGE,BEIGE,TRIM4#

sub55539-32030

main55539-32010-22iMS122,125..(HT,SED)..LHD..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

sub55539-32030

main55539-32010-46iMS125..SED..LHD;LS120,MS122,YS120..(HT,SED)..LHD198509-198708

BROWN,SEPIA BROWN,TRIM4#

sub55539-32030

55546COVER, LUGGAGE COMPARTMENT OPENER SWITCH HOLE

main55546-30030iMS122..WG;LS120,YS120..STD198308-198708

55547COVER, REMOTE CONTROL MIRROR HOLE

main74267-24010-01iMS122..WG;LS120,MS122,YS120..DLX,STD198308-198708

BLACK

55556ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-30040iLS120,MS12#,YS120198308-198708

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-12010iLS120..RHD..4H198308-198708

main55561-16020iMS12#,YS120;LS120..4F,5F;LS120..LHD..STD198308-198708

sub55561-32010

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-30060iLS120,MS12#,YS120..LHD198308-198708

main55606-30070iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)198308-198708

main55606-30080iLS120..RHD..4H198308-198509

main55641-30110iLS120..RHD..4H198509-198708

55629ACUSHION, INSTRUMENT PANEL UNDER TRAY

main55629-30030iLS120..RHD..4H198509-198708

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-30060iLS120..RHD..4H198308-198708

main55650-30090iLS120,MS12#,YS120..LHD198308-198509

main55650-30110iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)198308-198708

main55650-30120iLS120,MS122,125,YS120..LHD198509-198708

55650BBEZEL, INSTRUMENT PANEL REGISTER

main55661-30080-04×2iLS120..RHD..4H198308-198708

BLUE,BLUE,TRIM8#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55650-30060iLS120..RHD..4H198308-198708

main55660-30090iLS120,MS12#,YS120..LHD198308-198509

main55660-30130iLS120,MS122,YS120..RHD..(4F,4FC,4HC,5F)..(SAL,STD)198509-198708

main55660-30160iLS120,MS122,125,YS120..LHD198509-198708

main55660-30180iMS12#..RHD..ROY198509-198708

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-30010-14iLS120..RHD..4H198308-198604

BLUE,BLUE,TRIM8#

main55961-30010-24iLS120..RHD..4H198604-198708

BLUE,BLUE,TRIM8#

main55961-30040-02iLS120,MS12#,YS120..ROY,SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main55961-30040-04iLS120..4F,5F;MS123,125,YS120;LS120..LHD..STD198308-198509

BLUE,BLUE,TRIM8#

main55961-30040-05iMS12#,YS120;LS120..4F,5F;LS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

main55961-30040-06iLS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC)198509-198708

BROWN,BROWN,TRIM4#

main55961-30040-12iMS12#..ROY,SAL198509-198708

MAROON,MAROON,TRIM3#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55961-30020-14iLS120..RHD..4H198308-198604

BLUE,BLUE,TRIM8#

main55961-30020-24iLS120..RHD..4H198604-198708

BLUE,BLUE,TRIM8#

main55962-30020-02iLS120,MS12#,YS120..ROY,SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main55962-30020-04iLS120..4F,5F;MS123,125,YS120;LS120..LHD..STD198308-198509

BLUE,BLUE,TRIM8#

main55962-30020-05iMS12#,YS120;LS120..4F,5F;LS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

main55962-30020-06iLS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC)198509-198708

BROWN,BROWN,TRIM4#

main55962-30020-12iMS12#..ROY,SAL198509-198708

MAROON,MAROON,TRIM3#

main55962-30020-14iLS120..4F;LS120..LHD;MS12#,YS120198604-198708

BLUE,BLUE,TRIM8#

9011906237

main90119-06237

9011908126

main90119-08126

9015950203

main90159-50203

9016450004

main90164-50004

9016750018

main90167-50018

9017906070

main90179-06070

9018305094

main90183-05094

9018305103

main90183-05103

9046305001

main90463-05001

9046805047

main90468-05047

9165540616

main91655-40616

9166540616

main91665-40616

9356755016

main93567-55016

52 parts on this diagram · 4 diagrams in section
