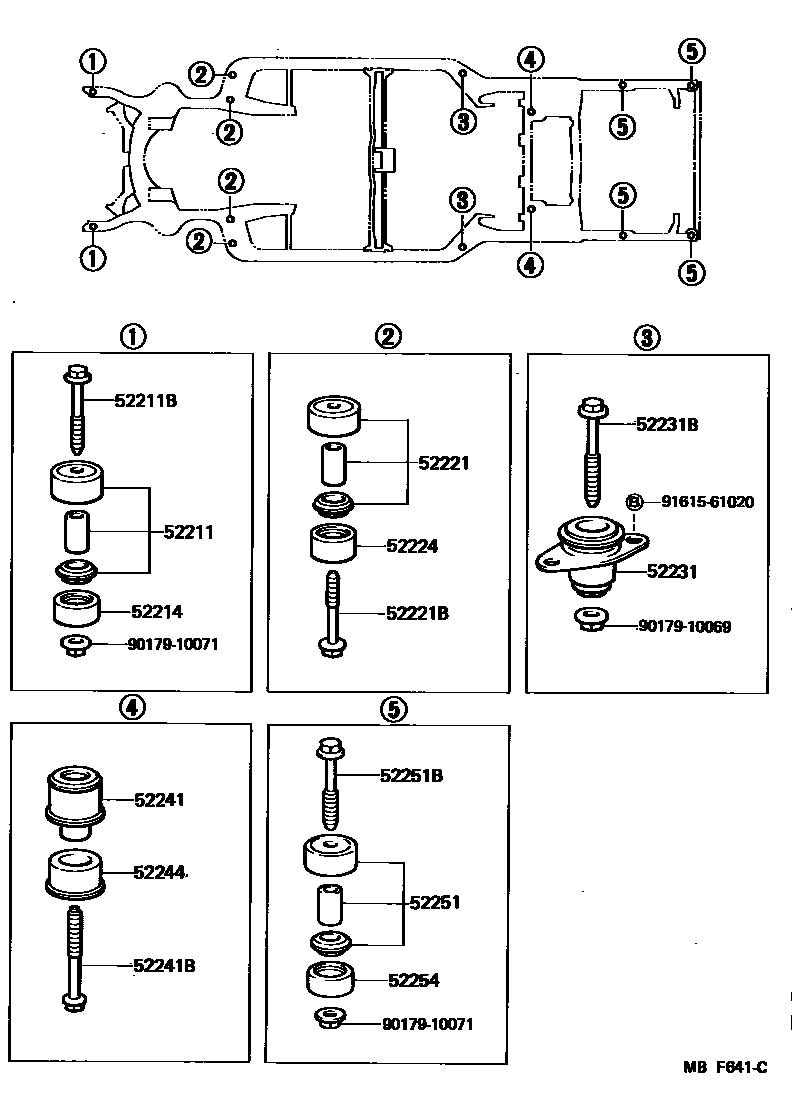

BODY MOUNTING
52211CUSHION, BODY MOUNTING, NO.1 UPPER
sub52210-30010
52211BBOLT(FOR BODY MOUNTING NO.1 CUSHION)
52214CUSHION, BODY MOUNT, NO.1 LOWER
52221CUSHION, BODY MOUNT, NO.2 UPPER
52221BBOLT(FOR BODY MOUNT NO.2 CUSHION)
52224CUSHION, BODY MOUNT, NO.2 LOWER
52231CUSHION, BODY MOUNT, NO.3 UPPER
52231BBOLT(FOR BODY MOUNT NO.3 CUSHION)
52241CUSHION, BODY MOUNT, NO.4 UPPER
52241BBOLT(FOR BODY MOUNT NO.4 CUSHION)
52244CUSHION, BODY MOUNT, NO.4 LOWER
52251BBOLT(FOR BODY MOUNT NO.5 CUSHION)
52254CUSHION, BODY MOUNT, NO.5 LOWER
9017910069
main90179-10069
9017910071
main90179-10071
9161561020
main91615-61020
17 parts on this diagram · 3 diagrams in section
