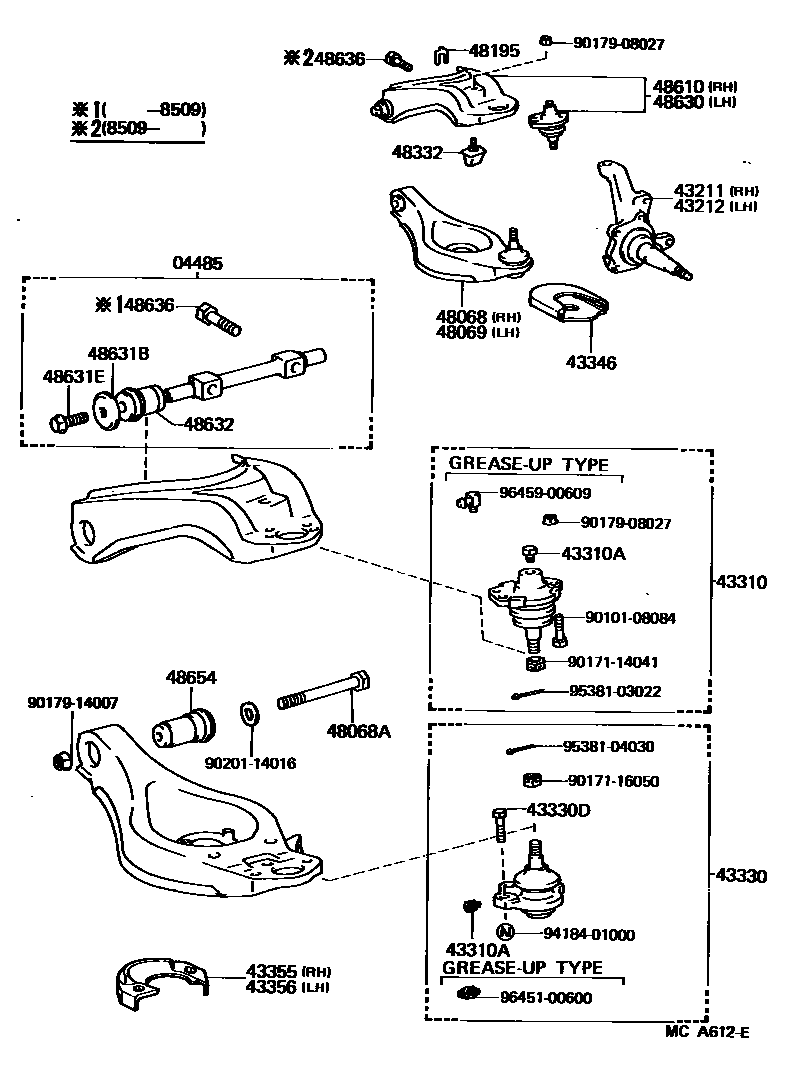

FRONT AXLE ARM & STEERING KNUCKLE

04485SHAFT KIT, UPPER SUSPENSION ARM

main04485-30042iLS120,MS12#,YS120198308-198509

main04485-30043iLS120,MS12#,YS120198509-198708

sub04485-30050

43211KNUCKLE, STEERING, RH

main43211-30090iMS123..4FC..EUG198308-198509

W/ESC

main43211-30120iLS120,MS122,YS120..(DLX,STD)..GEN198308-198708

main43211-30130iYS120..LHD;LS120,MS12#198308-198708

W/POWER STEERING

43212KNUCKLE, STEERING, LH

main43212-30060iLS120,MS122,YS120..(DLX,STD)..GEN198308-198708

main43212-30070iMS123..4FC..EUG198308-198509

W/ESC

main43212-30080iYS120..LHD;LS120,MS12#198308-198708

W/POWER STEERING

43310JOINT ASSY, UPPER BALL

main43350-39025iYS120..LHD..STD198308-198708

TAXI SPEC

main43360-39065iLS120,MS12#,YS120198308-198708

43310APLUG (FOR BALL JOINT)

main90345-06014iLS120,MS12#,YS120198308-198708

43330JOINT ASSY, LOWER BALL, FRONT

main43330-39145iYS120..LHD..STD198308-198708

TAXI SPEC,RH

main43330-39155iLS120,MS12#,YS120198308-198708

RH

main43340-39125iLS120,MS122..(DLX,STD)..GEN198308-198708

TAXI SPEC,LH

main43340-39135iLS120,MS12#,YS120198308-198708

LH

43330DBOLT (FOR FRONT LOWER BALL JOINT)

main90101-10439iLS120,MS12#,YS120198308-198708

43346PROTECTOR, LOWER BALL JOINT DUST COVER

main43346-30010iLS120..STD198308-198509

TAXI SPEC

43355DEFLECTOR, LOWER ARM ICE, RH

main43355-30010iLS120..STD198308-198509

TAXI SPEC

43356DEFLECTOR, LOWER ARM ICE, LH

main43356-30010iLS120..STD198308-198509

TAXI SPEC

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-30060iYS120..LHD..STD198308-198708

TAXI SPEC,W/POWER STEERING

main48068-30080iLS120,MS122..(DLX,STD)..GEN198308-198708

TAXI SPEC

main48068-30090iLS120,MS122,YS120..(DLX,STD)..GEN198308-198708

main48068-30130iYS120..LHD;LS120,MS12#198308-198708

W/POWER STEERING

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90101-14022iLS120,MS12#,YS120198308-198708

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-30060iYS120..LHD..STD198308-198708

TAXI SPEC,W/POWER STEERING

main48069-30080iYS120..LHD..STD198308-198708

TAXI SPEC

main48069-30090iLS120,MS122,YS120..(DLX,STD)..GEN198308-198708

main48069-30130iYS120..LHD;LS120,MS12#198308-198708

W/POWER STEERING

48195SHIM, CAMBER ADJUST

main90565-15016iLS120,MS12#,YS120198308-198708

T=1.6,T=1.6

main90565-15017iLS120,MS12#,YS120198308-198708

T=1.0,T=1.0

main90565-15018iLS120,MS12#,YS120198308-198708

T=2.0,T=2.0

48332BUMPER, FRONT SPRING, NO.2

main48333-30010iLS120,MS12#,YS120198308-198708

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-30010iLS120,YS120..STD198308-198509

sub48610-30060

main48610-30020iYS120..LHD;LS120,MS12#198308-198509

W/POWER STEERING

sub48610-30070

main48610-30030iLS120..STD198308-198509

TAXI SPEC

sub48610-30080

main48610-30040iLS120..STD198308-198509

TAXI SPEC,W/POWER STEERING

sub48610-30090

main48610-30900iLS120,MS122,YS120..(DLX,STD)..GEN198509-198708

main48610-30901iYS120..LHD;LS120,MS12#198509-198708

W/POWER STEERING

main48610-30902iYS120..LHD;LS120,MS122..(DLX,STD)..GEN198509-198708

TAXI SPEC

main48610-30903iYS120..LHD;LS120,MS122..(DLX,STD)..GEN198509-198708

TAXI SPEC,W/POWER STEERING

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-30010iLS120,YS120..STD198308-198509

sub48630-30060

main48630-30020iYS120..LHD;LS120,MS12#198308-198509

W/POWER STEERING

sub48630-30070

main48630-30030iLS120..STD198308-198509

TAXI SPEC

sub48630-30080

main48630-30040iLS120..STD198308-198509

TAXI SPEC,W/POWER STEERING

sub48630-30090

main48630-30900iLS120,MS122,YS120..(DLX,STD)..GEN198509-198708

main48630-30901iYS120..LHD;LS120,MS12#198509-198708

W/POWER STEERING

main48630-30902iYS120..LHD;LS120,MS122..(DLX,STD)..GEN198509-198708

TAXI SPEC

main48630-30903iYS120..LHD;LS120,MS122..(DLX,STD)..GEN198509-198708

TAXI SPEC,W/POWER STEERING

48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)

main90948-02020iLS120,MS12#,YS120198308-198708

48631EBOLT(FOR UPPER SUSPENSION ARM)

main90105-12017iLS120,MS12#,YS120198308-198708

48632BUSH, UPPER ARM

main48632-30040iLS120,MS12#,YS120198308-198708

48636BOLT, UPPER ARM SET

main90105-14026iLS120,MS12#,YS120198308-198708

sub90105-14062

48654BUSH, LOWER ARM

main48654-30020iLS120,MS12#,YS120198308-198708

9010108084

main90101-08084

9017114041

main90171-14041

9017116050

main90171-16050

9017908027

main90179-08027

9017914007

main90179-14007

9020114016

main90201-14016

9418401000

main94184-01000

9538103022

main95381-03022

9538104030

main95381-04030

9645100600

main96451-00600

9645900609

main96459-00609

33 parts on this diagram · 1 diagram in section
