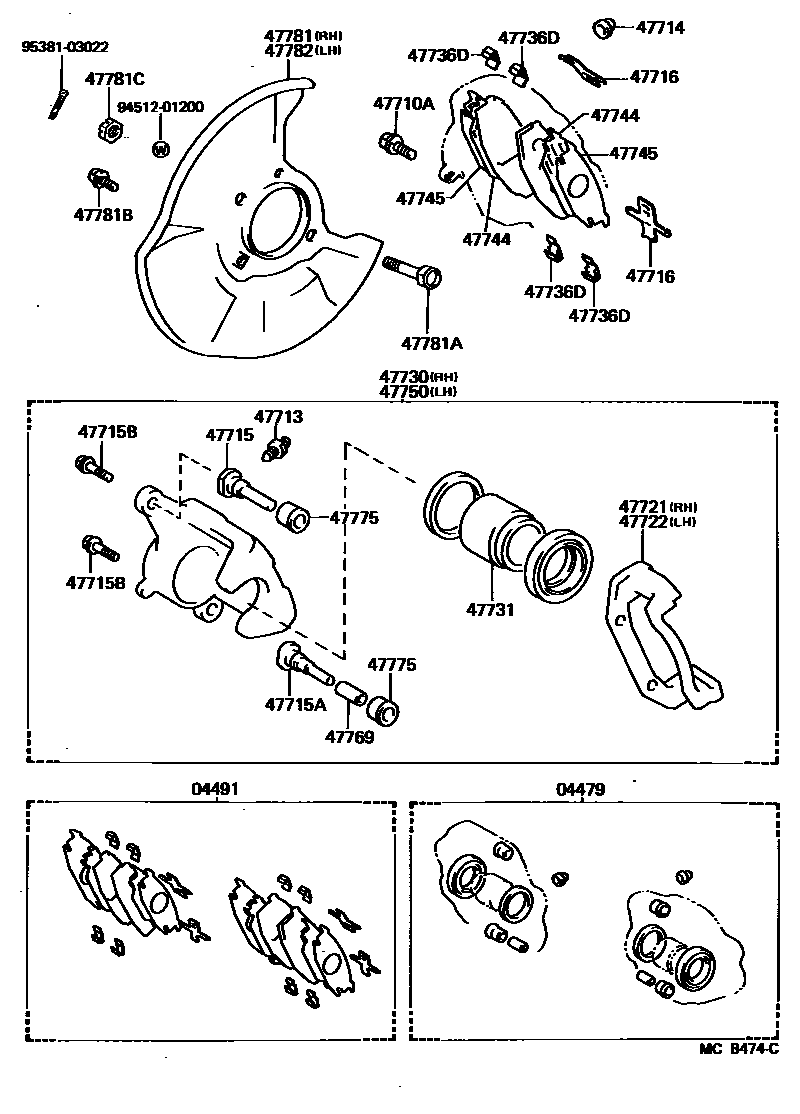

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-30060iLS120,MS12#,YS120..ARL,GEN,SAA¥3,550198308-198708

main04479-30080iMS123..SAL¥3,250198308-198401

sub04479-30081¥3,410

main04479-30081iMS123..SAL¥3,410198401-198509

04491PAD KIT, DISC BRAKE, FRONT

main04491-30122iLS120..RHD¥8,100198701-198708

sub04465-30021¥10,900

main04491-30150iLS120,MS12#,YS120..ARL,GEN,SAA¥8,100198308-198501

sub04465-30021¥10,900

main04491-30160iMS123..SAL¥8,600198308-198509

sub04491-30161

main04491-30170iLS120,MS12#,YS120..ARL,GEN,SAA¥8,100198501-198604

sub04491-30171¥8,100

main04491-30171iLS120..LHD¥8,100198604-198708

sub04465-30021¥10,900

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12058iLS120,MS12#,YS120¥280198308-198708

*12-1.25PX31-20

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-35020iLS120,MS12#,YS120¥220198308-198708

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iLS120,MS12#,YS120¥160198308-198708

47715PIN, MAIN(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main47715-30010iLS120,MS12#,YS120..ARL,GEN,SAA¥730198308-198708

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-39015iLS120,MS12#,YS120..ARL,GEN,SAA¥720198308-198708

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08019iLS120,MS12#,YS120..ARL,GEN,SAA¥340198308-198708

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-30020iLS120,MS12#,YS120..ARL,GEN,SAA¥600198308-198604

sub47716-30021¥400

main47716-30021iLS120,MS12#,YS120¥400198604-198708

main47716-30030iMS123..SAL¥540198308-198509

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-30030iLS120,MS12#,YS120..ARL,GEN,SAA¥10,200198308-198708

main47721-30040iMS123..SAL¥10,100198308-198509

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-30030iLS120,MS12#,YS120..ARL,GEN,SAA¥10,200198308-198708

main47721-30040iMS123..SAL¥10,100198308-198509

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-30130iLS120,MS12#,YS120..ARL,GEN,SAA¥46,300198308-198708

main47730-30140iMS123..SAL¥45,900198308-198509

47731PISTON, FRONT DISC BRAKE

main47731-30050iLS120,MS12#,YS120¥2,770198308-198708

47736DLINER, FRONT DISC BRAKE PAD

main47736-30030iLS120,MS12#,YS120..ARL,GEN,SAA¥180198308-198604

main47736-30031iLS120,MS12#,YS120¥330198604-198708

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-22050iLS120,MS12#,YS120..ARL,GEN,SAA¥270198501-198708

INNER

main47744-30110iLS120..RHD¥270198308-198708

OUTER

main47744-30120iMS123..SAL¥250198308-198509

main47744-30140iLS120..LHD¥270198604-198708

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47742-30040iLS120,MS12#,YS120¥270198604-198708

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-30130iLS120,MS12#,YS120..ARL,GEN,SAA¥46,300198308-198708

main47750-30140iMS123..SAL¥45,900198308-198509

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-30010iLS120,MS12#,YS120..ARL,GEN,SAA¥270198308-198708

main47769-40020iMS123..SAL¥740198308-198509

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30010iLS120,MS12#,YS120..ARL,GEN,SAA¥300198308-198708

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-30080iYS120..LHD;LS120,MS12#¥1,980198308-198509

W/POWER STEERING

sub47703-30110¥2,010

main47703-30090iMS123..4FC..EUG¥1,840198308-198509

W/ESC

main47703-30100iLS120,YS120..STD¥1,980198308-198509

sub47703-30120¥2,010

main47703-30110iYS120..LHD;LS120,MS12#¥2,010198509-198708

W/POWER STEERING

main47703-30120iLS120,MS122,YS120..(DLX,STD)..GEN¥2,010198509-198708

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90102-12009iLS120,MS12#,YS120¥350198308-198708

47781BBOLT(FOR DUST COVER SETTING)

main91611-60812iLS120,MS12#,YS120¥140198308-198708

*8-1.25PX12-7,L=12

sub91611-B0812¥70

main91611-60825iLS120,MS12#,YS120¥140198308-198708

*8-1.25PX25-25,L=25

sub91611-B0825¥160

main91611-60830iMS123..4FC..EUG¥100198308-198407

*8-1.25PX30-30,L=30,W/ESC

main91611-60835iMS123..4FC..EUG¥90198407-198509

*8-1.25PX35-30,L=35,W/ESC

47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main94145-71200iLS120,MS12#,YS120¥110198308-198708

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-30080iYS120..LHD;LS120,MS12#¥1,980198308-198509

W/POWER STEERING

sub47704-30110¥2,010

main47704-30090iMS123..4FC..EUG¥1,840198308-198509

W/ESC

main47704-30100iLS120,YS120..STD¥1,980198308-198509

sub47704-30120¥2,010

main47704-30110iYS120..LHD;LS120,MS12#¥2,010198509-198708

W/POWER STEERING

main47704-30120iLS120,MS122,YS120..(DLX,STD)..GEN¥2,010198509-198708

9451201200

main94512-01200¥100

9538103022

main95381-03022¥110

26 parts on this diagram · 3 diagrams in section
