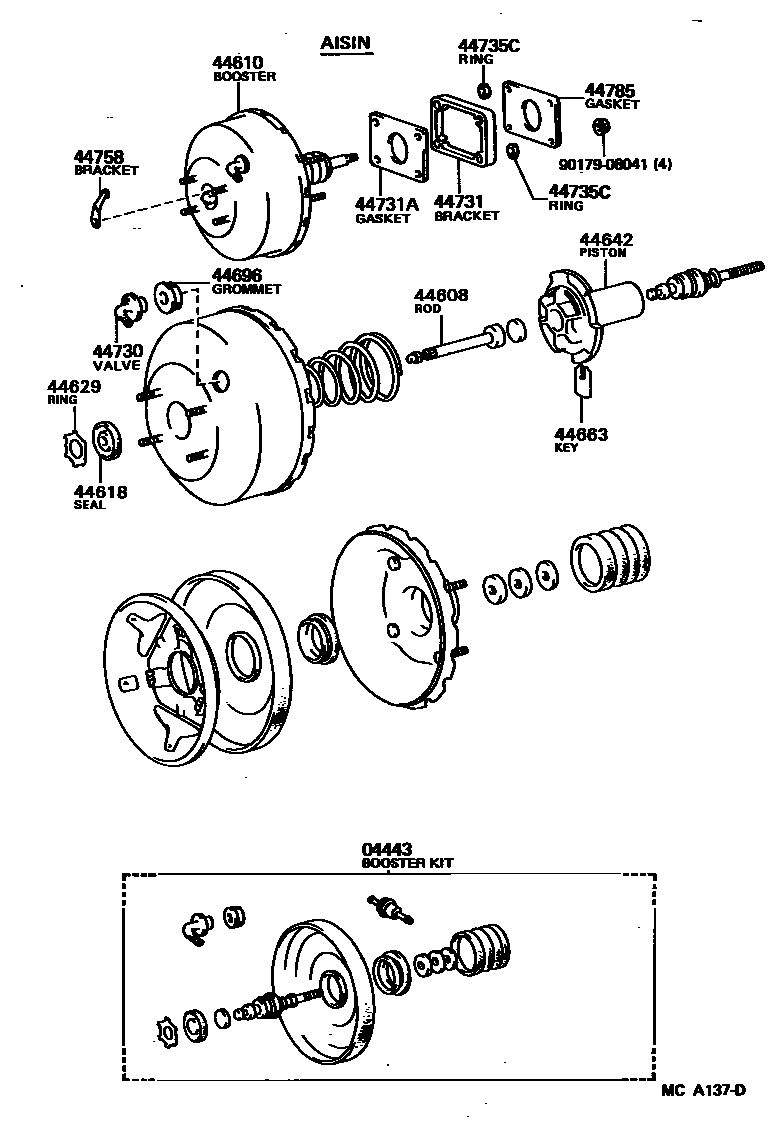

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

04443BOOSTER KIT, BRAKE

main04443-30330iMS122..ROY¥11,500198308-198509

main04443-30340iMS122,YS120..SAL,STD¥12,700198308-198509

main04443-30360iLS120198308-198509

main04443-30390iMS123,125..LHD..(EUG,GEN,SAA)¥10,400198308-198509

main04443-30420iMS123..SWZ198308-198509

main04443-30430iMS123,125..RHD¥12,700198308-198509

main04443-30460iMS12#..RHD¥15,400198509-198708

main04443-30480iYS120¥7,200198509-198708

main04443-30490iLS120¥11,800198509-198708

main04443-30510iMS122,125..LHD¥16,500198509-198708

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iMS122..ROY¥2,660198410-198509

main44606-20800iMS12#..RHD¥1,260198509-198708

main44606-30460iMS123,125..LHD..(EUG,GEN,SAA)¥1,630198308-198509

main44606-32010iMS122..ROY198308-198410

main44608-20810iMS122,125..LHD¥2,010198509-198708

main44608-30440iMS123,125..RHD198308-198509

main44608-32020iLS120,MS122,YS120..SAL,STD¥2,670198308-198708

44610BOOSTER ASSY, BRAKE

main44610-30400iMS122..ROY¥47,100198308-198509

sub44610-30510¥47,300

main44610-30410iMS122,YS120..SAL,STD¥47,100198308-198509

sub44610-30520¥47,300

main44610-30430iLS120¥48,300198308-198509

sub44610-30540¥48,500

main44610-30440iMS123,125..RHD¥67,800198308-198509

main44610-30470iMS123,125..LHD..(EUG,GEN,SAA)¥67,800198308-198509

main44610-30490iMS123..SWZ¥45,900198308-198509

main44610-30520iYS120¥47,300198509-198708

main44610-30540iLS120¥48,500198509-198708

main44610-30560iMS12#..RHD¥69,700198509-198708

main44610-30570iMS122,125..LHD¥69,700198509-198708

44618SEAL, BOOSTER BODY

main44621-14030iMS123,125..LHD..(EUG,GEN,SAA)¥400198308-198708

main44621-28120iMS122..ROY¥590198308-198509

44629RING, CIRCULAR INTERNAL

main44628-28120iMS123..SWZ¥390198308-198509

main44628-60010iMS123,125..LHD..(EUG,GEN,SAA)¥440198308-198708

44642PISTON, BRAKE BOOSTER

main44642-20800iMS12#..RHD¥2,740198509-198708

main44642-30340iMS123,125..LHD..(EUG,GEN,SAA)¥4,090198308-198509

main44642-32010iMS122..ROY¥6,100198308-198509

44663KEY, VALVE STOPPER

main44635-20800iMS12#..RHD¥230198509-198708

main44635-28120iMS122..ROY¥370198308-198509

main44635-30340iMS123,125..LHD..(EUG,GEN,SAA)¥270198308-198509

44696GROMMET, CHECK VALVE

main90480-24439iMS122..ROY¥390198308-198708

main90480-24517iYS120¥580198308-198708

sub90480-24015¥130

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iMS12#..RHD¥1,380198509-198708

main44730-20010iMS123,125..LHD¥2,300198308-198509

main44730-20030iMS122..ROY¥2,160198308-198509

main44730-20040iMS122,YS120..SAL,STD¥2,780198308-198509

main44730-22090iMS123,125..RHD¥2,300198308-198509

main44730-24010iLS120¥2,190198308-198708

main44730-24020iMS122,125..LHD¥2,190198509-198708

main44730-30030iYS120¥2,170198509-198708

sub44730-30050¥2,170

44731BRACKET, BRAKE BOOSTER, FRONT

main44731-30060iLS120,MS12#,YS120¥1,690198308-198708

44731AGASKET, BRAKE BOOSTER BRACKET

main44785-30020iLS120,MS12#,YS120¥250198308-198708

44735CRING, BOOSTER BRACKET STOPPER

main44735-30010iLS120,MS12#,YS120¥130198308-198708

44758BRACKET, VACUUM CHECK VALVE

main44758-30050iMS123,125..RHD¥210198308-198509

main44758-30070iMS122,YS120¥260198308-198708

main44758-30080iMS123,125..LHD198308-198509

main44758-30090iMS122,125..LHD¥740198509-198708

main44758-30100iMS12#..RHD¥140198509-198708

44785GASKET, BRAKE BOOSTER

main44785-30020iLS120,MS12#,YS120¥250198308-198708

9017908041

main90179-08041¥140

15 parts on this diagram · 12 diagrams in section
