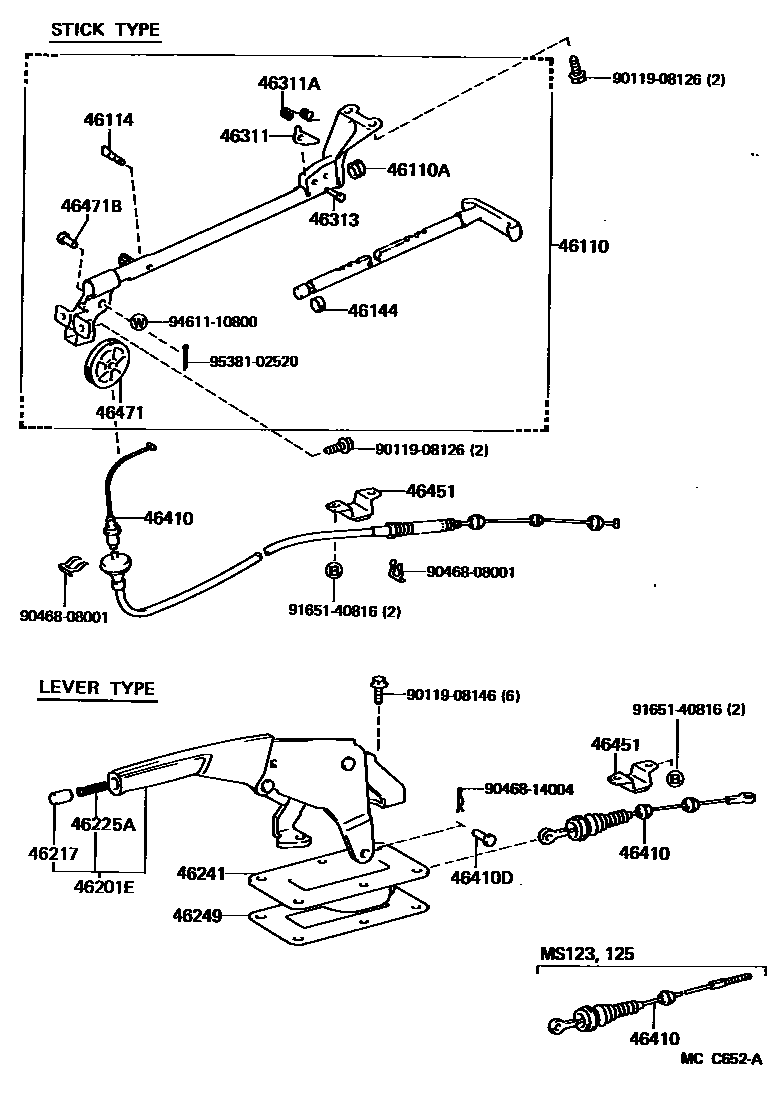

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

46110HANDLE ASSY, PARKING BRAKE CONTROL

main46104-30090iLS120..RHD..4H198308-198708

main46104-30100iLS120,MS122,YS120..LHD..4H198308-198708

46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

main90386-11195iLS120,MS122,YS120..4H198308-198708

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iLS120,MS122,YS120..4H198308-198708

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-30020iLS120,MS122,YS120..4H198308-198708

46201PEDAL SUB-ASSY, PARKING BRAKE

main46201-30070iMS12#..RHD..ATM..GEN198308-198708

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-30060-02iLS120,MS122,YS120..5F198308-198411

DEEP MAROON,RED/MAROON,TRIM3#

sub46201-30061

main46201-30060-04iMS122..LHD..4FC198308-198411

BLUE,BLUE,TRIM8#

sub46201-30061

main46201-30060-05iMS122..LHD..4FC198308-198411

BEIGE,BEIGE,TRIM4#

sub46201-30061

main46201-30061-02iMS122..LHD..4FC198411-198509

DEEP MAROON,DEEP MAROON,TRIM3#

sub46201-30062

sub46201-30061

main46201-30061-04iLS120,MS122,YS120..4F,5F198411-198603

BLUE,BLUE,TRIM8#

sub46201-30062

sub46201-30061

main46201-30061-05iMS122..LHD..4FC198411-198509

BEIGE,BEIGE,TRIM4#

sub46201-30062

sub46201-30061

main46201-30061-06iMS122..LHD..4FC198509-198708

BROWN,BROWN,TRIM4#

sub46201-30062

sub46201-30061

main46201-30061-12iMS122..5F..SAL198509-198708

MAROON,MAROON,TRIM3#

sub46201-30062

sub46201-30061

main46201-30061-14iLS120,MS122,YS120..4F,5F198603-198708

BLUE,BLUE,TRIM8#

sub46201-30062

sub46201-30061

main46201-30080-02iMS125..LHD;MS123..LHD..GEN;MS123..ARL,EUG,SAA,SWZ198308-198411

DEEP MAROON,RED/MAROON,TRIM3#

sub46201-30081

main46201-30080-04iMS125..LHD;MS123..LHD..GEN;MS123..ARL,EUG,SAA,SWZ198308-198411

BLUE,BLUE,TRIM8#

sub46201-30081

main46201-30080-05iMS125..LHD;MS123..LHD..GEN;MS123..ARL,EUG,SAA,SWZ198308-198411

BEIGE,BEIGE,TRIM4#

sub46201-30081

main46201-30081-02iMS123;MS125..LHD198411-198509

DEEP MAROON,DEEP MAROON,TRIM3#

sub46201-30082

sub46201-30081

main46201-30081-04iMS123;MS125..LHD198411-198603

BLUE,BLUE,TRIM8#

sub46201-30082

sub46201-30081

main46201-30081-05iMS123;MS125..LHD198411-198509

BEIGE,BEIGE,TRIM4#

sub46201-30082

sub46201-30081

main46201-30081-06iMS123;MS125..LHD198509-198708

BROWN,BROWN,TRIM4#

sub46201-30082

sub46201-30081

main46201-30081-12iMS123;MS125..LHD198509-198708

MAROON,MAROON,TRIM3#

sub46201-30082

sub46201-30081

main46201-30081-14iMS123198603-198708

BLUE,BLUE,TRIM8#

sub46201-30082

sub46201-30081

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10020-14iMS122..LHD..4FC198308-198603

BLUE,BLUE,TRIM8#

sub46217-10020

sub46217-20020

main46217-10020-15iLS120,MS122,YS120..4F,5F198308-198509

BEIGE,BEIGE,TRIM4#

sub46217-10020

sub46217-20020

main46217-10020-22iMS125..LHD;MS123..LHD..GEN;MS123..ARL,EUG,SAA,SWZ198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub46217-10020

sub46217-20020

main46217-10020-32iMS122..5F..SAL198509-198708

MAROON,MAROON,TRIM3#

sub46217-10020

sub46217-20020

main46217-10020-54iMS122..LHD..4FC198603-198708

BLUE,BLUE,TRIM8#

sub46217-10020

sub46217-20020

main46217-10020-56iLS120,MS122,YS120..(HT,SED)..(4F,5F)198509-198708

BROWN,BROWN,TRIM4#

sub46217-10020

sub46217-20020

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10085iMS125..LHD;MS123..LHD..GEN;MS123..ARL,EUG,SAA,SWZ198308-198708

46241BOOT, PARKING BRAKE LEVER

main46241-30010iLS120,MS122,YS120..4F,5F198308-198708

46249SHIELD, PARKING BRAKE HOLE

main46249-30010iLS120,MS122,YS120..4F,5F198308-198708

46311PAWL, PARKING BRAKE

main46311-30041iLS120,MS122,YS120..4H198308-198708

46311ASPRING(FOR PARKING BRAKE PAWL)

main90506-07007iMS12#..RHD..ATM..GEN198308-198708

main90508-08106iLS120,MS122,YS120..4H198308-198708

46313PIN, PARKING BRAKE PAWL

main46313-40010iLS120,MS122,YS120..4H198308-198708

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-30310iMS125..LHD;MS123..LHD..GEN;MS123..ARL,EUG,SAA,SWZ198308-198708

sub46410-30570

main46410-30330iLS120,MS122,YS120..4F,5F198308-198708

main46410-30350iLS120..RHD..4H198308-198708

main46410-30370iMS122..RHD..ATM198308-198708

main46410-30390iMS123,125..RHD..GEN198308-198708

sub46410-30530

main46410-30410iLS120,MS122,YS120..LHD..4H198308-198708

46410DPIN(FOR PARKING BRAKE FRONT CABLE)

main90240-08021iLS120,MS122,YS120..4F,5F198308-198708

main90249-10012iMS12#..RHD..ATM..GEN198308-198708

46451BRACKET, CABLE SUPPORT

main46451-30080iMS125..LHD;MS123..LHD..GEN;LS120,MS122,YS120;MS123..ARL,EUG,SAA,SWZ198308-198708

46471PULLEY, WIRE

main46471-30010iLS120,MS122,YS120..4H198308-198708

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08062iLS120,MS122,YS120..4H198308-198708

9011908126

main90119-08126

9011908146

main90119-08146

9046808001

main90468-08001

9046814004

main90468-14004

9165140816

main91651-40816

9461110800

main94611-10800

9538102520

main95381-02520

25 parts on this diagram · 6 diagrams in section
