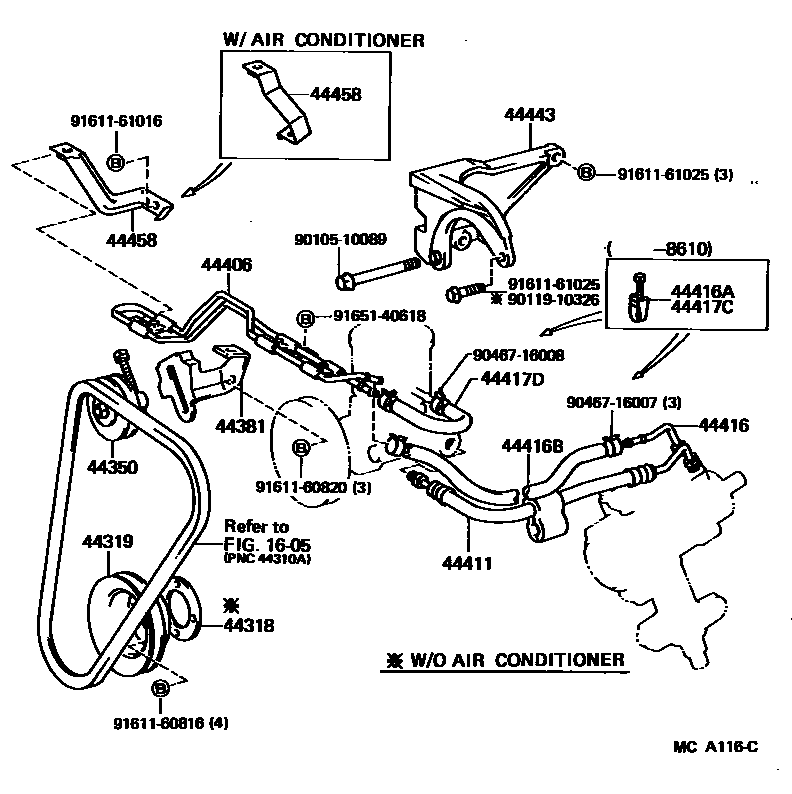

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

1605

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-28012iYS120..LHD¥380198308-198708

44319PULLEY, VANE PUMP DRIVE

main44319-28013iYS120..LHD¥1,920198308-198708

main44319-30030iLS120¥9,100198308-198708

44350PULLEY ASSY, POWER STEERING IDLE

main44350-20040iYS120..LHD¥7,900198308-198708

44381BRACKET, POWER STEERING IDLE PULLEY

main44381-20010iYS120..LHD198308-198708

44406TUBE SUB-ASSY, RETURN

main44406-30010iYS120..LHD¥7,600198308-198412

sub44406-30011¥7,800

main44406-30011iYS120..LHD¥7,800198412-198708

main44406-30020iLS120..LHD¥7,400198308-198708

44411HOSE, PRESSURE FEED

main44411-30210iLS120..RHD¥26,000198308-198708

main44411-30260iMS123,125..RHD..GEN¥17,100198308-198708

main44411-30280iMS123..4FC..EUG¥17,100198308-198509

W/ESC,PUMP TO ESC

main44411-30290iLS120..LHD¥15,300198308-198708

main44411-30300iYS120..LHD¥15,300198308-198708

main44411-30310iMS12#..LHD¥15,300198308-198708

main44411-30320iMS123..ARL¥14,100198308-198509

main44411-30330iMS122..RHD¥15,100198308-198708

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-30060iLS120,MS12#..RHD¥1,260198308-198708

main44416-30070iLS120,MS12#,YS120..LHD¥1,190198308-198708

44416ACLAMP(FOR RETURN HOSE)

main90460-01001iLS120;YS120..LHD¥580198308-198610

44416BHOSE(FOR STEERING GEAR TO RETURN TUBE)

main90445-18085iLS120..LHD¥1,550198308-198708

main90445-18108iYS120..LHD¥1,820198308-198708

main90445-18123iLS120..RHD¥2,640198308-198708

44417TUBE, RETURN, NO.2

main44417-30050iLS120..RHD¥2,630198308-198708

44417CCLAMP, RETURN TUBE HOSE

main90460-01001iLS120;YS120..LHD¥580198308-198610

44417DHOSE(FOR RETURN TUBE TO RESERVOIR)

main44412-30020iYS120..LHD¥2,190198308-198708

main90445-18126iLS120¥1,300198308-198708

44443BRACKET, PUMP

main44443-24010iMS123,125..EUG,GEN,SAA¥11,500198308-198708

main44443-28021iYS120..LHD¥7,700198308-198708

main44443-30051iMS122¥9,200198308-198708

main44443-30080iLS120¥13,000198308-198708

44458BRACKET, TUBE SUPPORT, NO.2

main44458-30030iYS120..LHD¥790198308-198708

main44458-30070iYS120..LHD¥1,220198308-198708

W/COOLER

9010510089

main90105-10089¥360

9011910326

main90119-10326¥140

9046716007

main90467-16007¥370

9046716008

main90467-16008¥240

9161160816

main91611-60816¥230

9161160820

main91611-60820¥200

9161161016

main91611-61016¥270

9161161025

main91611-61025¥240

9165140618

main91651-40618¥260

24 parts on this diagram · 11 diagrams in section
