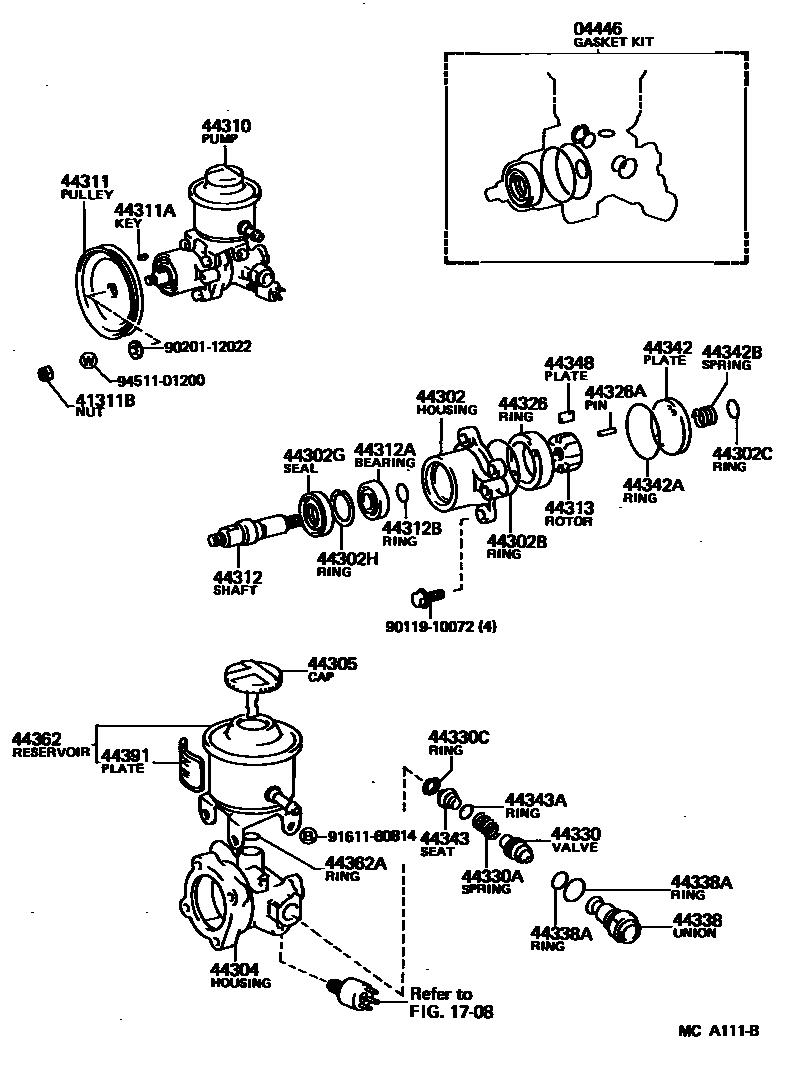

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0005 1 0007 1

04446GASKET KIT, POWER STEERING PUMP

main04446-30030iMS123,125¥3,580198308-198708

main04446-30050iMS122¥1,730198308-198708

1708

41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-14010iYS120..LHD¥15,500198505-198708

main44302-22020iLS120;YS120..LHD¥15,500198308-198708

main44302-30020iMS122¥15,600198308-198708

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90301-60001iLS120;YS120..LHD¥350198308-198708

main90301-69170iMS122;MS123..ARL,SWZ¥300198308-198708

44302CRING, O, NO.2(FOR VANE PUMP HOUSING)

main96711-19016iMS123,125..EUG,GEN,SAA¥300198308-198708

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-24001iMS123,125¥220198308-198708

main90311-24006iYS120..LHD¥430198505-198708

sub90311-24009

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90521-44002iMS123,125..EUG,GEN,SAA¥580198308-198708

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-22010iMS123..EUG,GEN¥33,500198308-198311

sub44304-22011¥35,400

sub90105-10092¥260

main44304-22011iMS123,125..EUG,GEN,SAA¥35,400198311-198610

sub44304-22012¥35,200

sub44343-12040¥670

sub90501-12103¥160

main44304-22012iMS123,125¥35,200198610-198708

main44304-28010iYS120..LHD198308-198311

main44304-28011iYS120..LHD¥37,000198311-198610

sub44304-28012¥35,200

sub44343-12040¥670

sub90501-12103¥160

main44304-28012iYS120..LHD¥35,200198610-198708

main44304-30022iMS122;MS123..ARL,SWZ¥38,900198308-198408

main44304-30050iLS120¥33,400198308-198610

sub44304-30051¥35,200

sub44343-12040¥670

sub90501-12103¥160

main44304-30051iLS120¥35,200198610-198708

main44304-30070iMS122¥33,500198408-198708

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-30020iYS120..LHD;LS120,MS12#¥1,950198308-198708

sub44305-22040¥1,940

main44305-30040iMS123..4FC..EUG¥1,830198308-198509

W/ESC

44310PUMP ASSY, VANE

main44320-30150iLS120¥82,200198308-198708

sub44320-30340¥82,200

main44320-30170iMS123..4FC..EUG¥90,200198308-198311

W/ESC

sub44320-30171¥90,400

sub90105-10092¥260

main44320-30171iMS123..4FC..EUG¥90,400198311-198509

W/ESC

main44320-30180iYS120..LHD¥90,200198308-198311

sub44320-30181¥90,100

sub90105-10092¥260

main44320-30181iYS120..LHD¥90,100198311-198505

sub44320-30182¥90,400

main44320-30182iYS120..LHD¥90,400198505-198708

sub44320-30260¥90,400

main44320-30190iMS122;MS123..ARL,SWZ¥90,400198308-198708

main44320-30210iMS123..EUG,GEN¥90,200198308-198311

sub44320-30211¥90,400

sub90105-10092¥260

main44320-30211iMS123,125..EUG,GEN,SAA¥90,400198311-198708

44311PULLEY, VANE PUMP

main44311-12010iYS120..LHD¥7,600198308-198708

main44311-22030iMS123,125..EUG,GEN,SAA¥6,400198308-198708

main44311-30030iMS122¥7,200198308-198708

sub44311-30070¥6,800

main44311-30040iLS120¥6,100198308-198708

44311AKEY, VANE PUMP PULLEY

main90280-05008iYS120..LHD;LS120,MS12#¥220198308-198708

44312SHAFT, VANE PUMP

main44312-12010iMS123,125..EUG,GEN,SAA¥3,340198308-198708

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-17004iMS123,125..EUG,GEN,SAA¥1,240198308-198708

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-15001iMS123,125..EUG,GEN,SAA¥240198308-198708

sub90520-15005¥80

44313ROTOR, VANE PUMP

main44313-12010iMS123,125..EUG,GEN,SAA¥7,900198308-198708

NO MARK,NO MARK

sub44313-22040¥7,700

main44313-12020iLS120;YS120..LHD¥7,900198308-198708

MARK 1,MARK 1

sub44313-22050¥7,700

main44313-12030iMS123,125¥7,900198308-198708

MARK 2,MARK 2

sub44313-22060¥7,700

main44313-12040iMS123,125¥7,900198308-198708

MARK 3,MARK 3

sub44313-22070¥7,700

main44313-12050iMS123,125..EUG,GEN,SAA¥7,900198308-198708

MARK 4,MARK 4

sub44313-22080¥7,700

44326RING, CAM(FOR VANE PUMP)

main44325-12010iMS123,125..EUG,GEN,SAA¥8,700198308-198708

NO MARK,NO MARK

main44325-12020iLS120;YS120..LHD¥8,700198308-198708

MARK 1,MARK 1

main44325-12030iMS123,125¥8,700198308-198708

MARK 2,MARK 2

main44325-12040iMS123,125¥8,700198308-198708

MARK 3,MARK 3

main44325-12050iMS123,125¥8,700198308-198708

MARK 4,MARK 4

main44325-30050iMS123..4FC..EUG¥8,100198308-198509

NO MARK,W/ESC,NO MARK

main44325-30060iMS123..4FC..EUG¥8,100198308-198509

MARK 1,W/ESC,MARK 1

main44325-30070iMS123..4FC..EUG¥8,100198308-198509

MARK 2,W/ESC,MARK 2

main44325-30080iMS123..4FC..EUG¥8,100198308-198509

MARK 3,W/ESC,MARK 3

main44325-30090iMS123..4FC..EUG¥8,100198308-198509

MARK 4,W/ESC,MARK 4

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-05008iMS123,125..EUG,GEN,SAA¥240198308-198708

L=25,OD=5.0

44330VALVE ASSY, FLOW CONTROL

main44330-30041iMS122¥8,200198308-198708

MARK A

main44330-30051iMS122¥7,900198308-198708

MARK B

main44330-30061iMS122;MS123..ARL,SWZ¥7,900198308-198708

MARK C

main44330-30071iMS122¥7,900198308-198708

MARK D

main44330-30081iMS122¥7,900198308-198708

MARK E

main44330-30091iMS122;MS123..ARL,SWZ¥6,700198308-198708

MARK F

main44330-30100iLS120;YS120..LHD¥9,200198308-198708

MARK A,MARK A

sub44330-32130¥8,600

main44330-30110iLS120;YS120..LHD¥9,200198308-198708

MARK B,MARK B

sub44330-32140¥8,600

main44330-30120iLS120;YS120..LHD¥9,200198308-198708

MARK C,MARK C

sub44330-32150¥8,600

main44330-30130iLS120;YS120..LHD¥9,200198308-198708

MARK D,MARK D

sub44330-32160¥8,600

main44330-30140iLS120;YS120..LHD¥9,200198308-198708

MARK E,MARK E

sub44330-32170¥8,600

main44330-30150iLS120;YS120..LHD¥9,200198308-198708

MARK F,MARK F

sub44330-32180¥8,600

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iYS120..LHD¥160198610-198708

main90501-12447iMS122¥660198308-198708

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iYS120..LHD;LS120,MS12#¥260198308-198708

44338UNION, PRESSURE PORT

main44308-30060iLS120;YS120..LHD¥1,620198308-198708

main44308-30070iMS122;MS123..ARL,SWZ¥1,540198308-198708

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-22001iMS123,125..EUG,GEN,SAA¥590198308-198708

OD=25.5,ID=22.5,OD=25.5

main96711-19014iYS120..LHD;LS120,MS12#¥210198308-198708

OD=17.0,ID=13.0,OD=17.0

44342PLATE, VANE PUMP SIDE, REAR

main44341-12010iLS120;YS120..LHD¥6,800198308-198708

main44341-30020iMS122;MS123..ARL,SWZ¥1,820198308-198708

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-53002iMS123,125..EUG,GEN,SAA¥300198308-198708

44342BSPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)

main90501-23014iMS123,125..EUG,GEN,SAA¥350198308-198708

44343SEAT, FLOW CONTROL SPRING

main44343-12010iYS120..LHD;LS120,MS12#¥1,240198308-198708

main44343-12040iLS120,MS123,125¥670198610-198708

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96711-19014iYS120..LHD;LS120,MS12#¥210198308-198708

44348PLATE, VANE PUMP

main44345-12010iMS123,125..EUG,GEN,SAA¥660198308-198708

L=14.997,L=14.996-14.998,ROTOR NO MARK

main44345-12020iLS120;YS120..LHD¥660198308-198708

L=14.995,L=14.994-14.996,ROTOR MARK 1

main44345-12030iMS123,125..EUG,GEN,SAA¥660198308-198708

L=14.993,L=14.992-14.994,ROTOR MARK 2

main44345-12040iMS123,125..EUG,GEN,SAA¥660198308-198708

L=14.991,L=14.990-14.992,ROTOR MARK 3

main44345-12050iMS123,125..EUG,GEN,SAA¥660198308-198708

L=14.989,L=14.988-14.990,ROTOR MARK 4

44362RESERVOIR, OIL(FOR VANE PUMP)

main44306-22100iMS123,125¥10,700198308-198708

sub44306-22200¥10,300

main44306-30110iYS120..LHD¥10,100198308-198708

sub44306-30200¥10,000

sub44305-22040¥1,940

main44306-30130iMS123..4FC..EUG¥9,500198308-198509

W/ESC

main44306-30160iMS122;MS123..ARL,SWZ¥9,500198308-198708

main44360-30080iLS120¥9,500198308-198708

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main96711-19013iMS12#;YS120..LHD¥240198308-198708

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-14010iMS123,125¥240198610-198708

main44391-30020iYS120..LHD;LS120,MS12#¥240198308-198708

9011910072

main90119-10072¥160

9020112022

main90201-12022¥110

9161160814

main91611-60814¥100

9451101200

main94511-01200¥200

37 parts on this diagram · 4 diagrams in section
