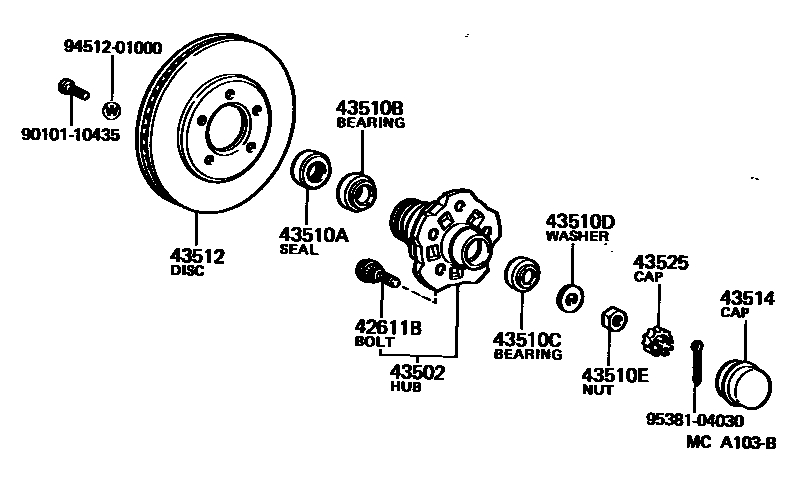

FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02048iLS120,MS12#,YS120198308-198708

43502HUB SUB-ASSY, FRONT AXLE

main43502-30020iMS123..4FC..EUG198308-198509

W/ESC

main43502-30030iLS120,MS12#,YS120198308-198708

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-48001iLS120,MS12#,YS120198308-198708

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-34083iLS120,MS12#,YS120198308-198708

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-21082iLS120,MS12#,YS120198308-198708

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20005iLS120,MS12#,YS120198308-198708

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185iLS120,MS12#,YS120198308-198708

43512DISC, FRONT

main43512-30110iLS120,MS12#,YS120..ARL,GEN198308-198312

sub43512-30112

main43512-30111iLS120,MS12#,YS120..ARL,GEN198312-198606

sub43512-30112

main43512-30112iLS120,MS12#,YS120198606-198708

main43512-30120iMS123..SAL198308-198509

43514CAP, FRONT HUB GREASE

main43514-22020iLS120,MS12#,YS120198308-198708

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010iLS120,MS12#,YS120198308-198708

9010110435

main90101-10435

9451201000

main94512-01000

9538104030

main95381-04030

13 parts on this diagram · 1 diagram in section
