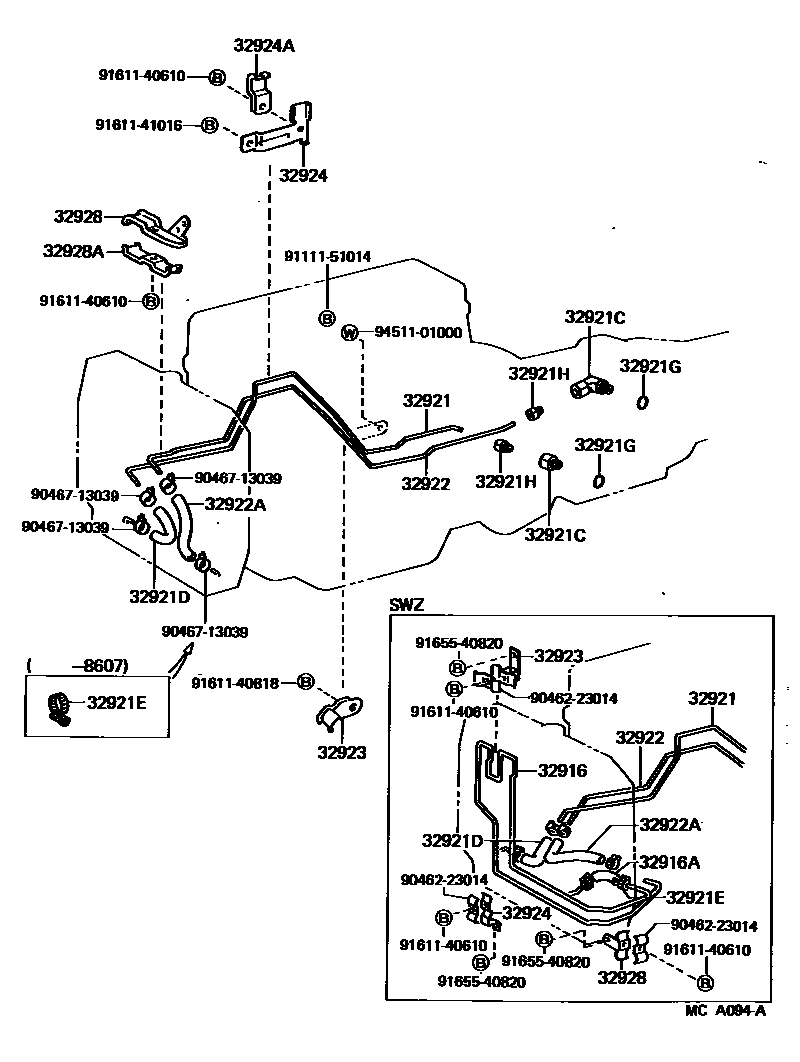

OIL COOLER & TUBE (ATM)

0001 1 0002 1

32916TUBE, OIL COOLER

main32916-30010iMS123..SWZ198308-198509

32916AHOSE, OIL COOLER OUTLET

main32942-12090iMS123..SWZ198308-198509

32921TUBE, OIL COOLER INLET, NO.1

main32921-30270iMS122,123..ATM198308-198607

main32921-30320iMS125198410-198708

main32921-30370iMS122,123..ATM198607-198708

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iMS122,123..ATM198308-198708

INLET

main90404-16020iMS125198410-198708

INLET

sub90404-16029

main90407-14003iMS122,123..ATM198308-198708

OUTLET

main90407-16009iMS125198410-198708

OUTLEL

32921DHOSE(FOR OIL COOLER INLET)

main32941-22020iMS122,123..ATM198308-198607

main32941-30070iMS122,123..ATM198607-198708

sub32941-30071

main32942-22060iMS125198607-198708

sub32942-22061

main32942-30030iMS125198410-198607

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-14085iMS122,123..ATM198308-198607

sub90460-20004

main90460-18002iMS125198410-198607

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iMS122,123..ATM198308-198708

main90301-11006iMS125198410-198708

32921HNUT, FLARE(FOR OIL COOLER TUBE)

main90402-14004iMS122,123..ATM198308-198708

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-30270iMS122,123..ATM198308-198607

main32922-30320iMS125198410-198708

main32922-30370iMS122,123..ATM198607-198708

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-22010iMS122,123..ATM..(ARL,EUG,GEN,SAA)198308-198607

main32942-22060iMS122,123..ATM198607-198708

sub32942-22061

main32943-14010iMS123..SWZ198308-198509

main90445-15015iMS125198607-198708

sub90445-15046

main90445-16022iMS125198410-198607

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-30080iMS123..RHD198308-198708

main32923-30100iMS123..SWZ198308-198509

RADIATOR SIDE

main32923-30120iMS125198410-198708

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-22040iMS122,123..ATM198308-198708

main32924-30110iMS123..SWZ198308-198509

RADIATOR SIDE

main32924-30120iMS125198410-198708

sub32924-30160

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main32929-30060iMS122,123..ATM198308-198708

main32929-30110iMS125198410-198708

32928CLAMP, FLEXIBLE HOSE, NO.1

main15781-42020iMS125198410-198708

main15781-45012iMS122,123..ATM198308-198708

main32928-30070iMS123..SWZ198308-198509

RADIATOR SIDE

32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main90461-12028iMS122,123..ATM198308-198708

main90929-01043iMS125198410-198708

9046223014

main90462-23014

9046713039

main90467-13039

9111151014

main91111-51014

9161140610

main91611-40610

9161140818

main91611-40818

9161141016

main91611-41016

9165540820

main91655-40820

9451101000

main94511-01000

23 parts on this diagram · 2 diagrams in section
