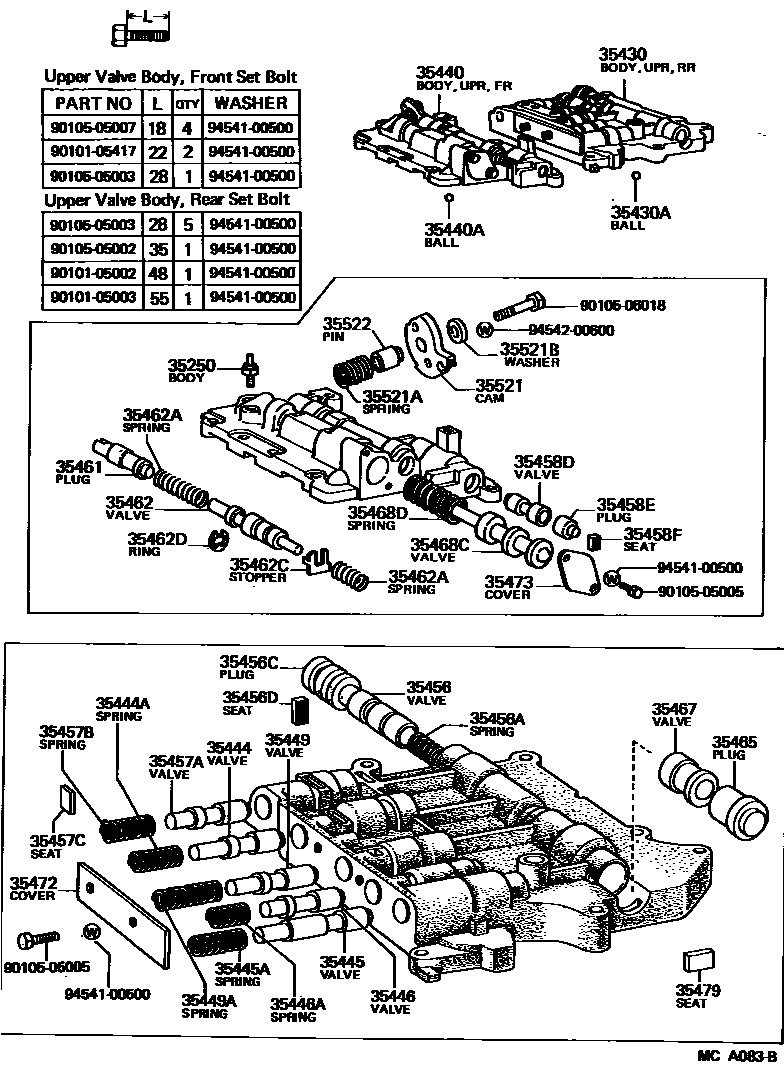

VALVE BODY & OIL STRAINER (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0009 1 0011 1 0013 1 0014 1 0015 1 0016 1

35250BODY ASSY, CHECK BALL

main35250-30010iMS123..ARL,SWZ198409-198509

35430BODY ASSY, REAR UPPER VALVE

main35430-22140iMS122..SED..ATM198509-198708

main35430-30070iMS123..ARL,SWZ198308-198509

main35430-30120iMS123..4FC..EUG198308-198708

main35430-30140iMS122..SED..ATM198308-198609

main35430-30150iMS123..GEN,SAA198308-198410

main35430-30160iMS122..HT..4FC198609-198708

35430ABALL (FOR REAR UPPER VALVE BODY)

main35495-22010iMS122,123..ATM..(ARL,GEN,SAA,SWZ)198308-198708

OD=5.535,RUBBER,OD=5.56,GUM

sub35495-22020

main90360-06023iMS122,123..ATM198308-198708

0D=5.56,OD=5.56,STEEL

35440BODY ASSY, FRONT UPPER VALVE

main35440-22100iMS122..HT..4FC198509-198607

main35440-22101iMS122..HT..4FC198607-198708

main35440-30021iMS123..ARL,SWZ198308-198409

sub35440-30022

main35440-30022iMS123..ARL,SWZ198409-198509

main35440-30070iMS123..4FC..EUG198308-198509

main35440-30071iMS123198509-198708

main35440-30090iMS122,123..SED..ATM..(GEN,SAA)198308-198607

main35440-30091iMS122..SED..ATM198607-198609

main35440-30120iMS122..HT..4FC198609-198708

35440ABALL (FOR FRONT UPPER VALVE BODY)

main35495-22010iMS123..ARL,SWZ198308-198509

OD=5.535,RUBBER,OD=5.56,GUM

sub35495-22020

35444VALVE, INTERMEDIATE MODULATOR

main35444-22010iMS122,123..ATM198308-198708

35444ASPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE)

main90501-08725iMS123..4FC..EUG198308-198708

LWR

main90501-09686iMS123198308-198708

INTERMEDIATE

main90501-11009iMS122,123..ATM..(ARL,GEN,SAA,SWZ)198308-198708

35445VALVE, LOW MODULATOR

main35445-22010iMS122,123..ATM..(ARL,GEN,SAA,SWZ)198308-198708

35445ASPRING, COMPRESSION (FOR LOW MODULATOR VALVE)

main90501-08725iMS122,123..ATM..(ARL,GEN,SAA,SWZ)198308-198708

35446VALVE, GOVERNOR MODULATOR

main35446-22010iMS122,123..ATM..(ARL,GEN,SAA,SWZ)198308-198708

35446ASPRING, COMPRESSION (FOR GOVERNOR MODULATOR VALVE)

main90501-07019iMS123..GEN,SAA198308-198410

main90501-07688iMS123..ARL,SWZ198308-198708

35449VALVE, SEQUENCE

main35447-22010iMS122,123..ATM..(ARL,GEN,SAA,SWZ)198308-198708

35449ASPRING, COMPRESSION (FOR SEQUENCE VALVE)

main90501-12055iMS122,123..SED..ATM198308-198708

main90501-12726iMS123..ARL,SWZ198308-198509

main90501-13017iMS122..HT..4FC198609-198708

35456VALVE, 2-3 SHIFT

main35456-22010iMS122..ATM198308-198708

main35456-30050iMS123198308-198708

main35456-30060iMS125198410-198708

35456ASPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

main90501-08724iMS122,123..ATM..(ARL,GEN,SAA,SWZ)198308-198708

main90501-09028iMS123..4FC..EUG198308-198708

main90501-09053iMS125198410-198708

35456CPLUG (FOR 2-3 SHIFT VALVE)

main35452-22010iMS122..ATM198308-198708

main35452-30010iMS123..4FC..EUG198308-198512

sub90339-05014

main90339-03004iMS125198410-198512

main90339-05014iMS123,125198512-198708

35456DSEAT (FOR 2-3 SHIFT VALVE)

main35493-22020iMS122,123..ATM..(ARL,GEN,SAA,SWZ)198308-198708

main35493-30030iMS123..4FC..EUG198308-198708

35457AVALVE, DETENT REGULATOR

main35457-22010iMS122,123..ATM..(ARL,GEN,SAA,SWZ)198308-198708

35457BSPRING, COMPRESSION (FOR DETENT REGULATOR VALVE)

main90501-09007iMS122..ATM198308-198708

35457CSEAT (FOR DETENT REGULATOR VALVE)

main35438-22020iMS122,123..ATM..(ARL,GEN,SAA,SWZ)198308-198708

35458DVALVE, CUT BACK

main35458-22010iMS122,123..ATM..(ARL,GEN,SAA,SWZ)198308-198708

main35458-30020iMS123..4FC..EUG198308-198708

main35458-30030iMS125198410-198708

35458EPLUG (FOR CUT BACK VALVE)

main35459-22010iMS122,123..ATM198308-198708

main90339-04002iMS125198410-198708

35458FSEAT (FOR CUT BACK VALVE)

main35493-22010iMS122,123..ATM198308-198708

35461PLUG, DOWN SHIFT

main35408-22020iMS122..ATM198308-198708

main35408-30020iMS123198308-198708

main35408-30040iMS125198410-198708

35462VALVE, THROTTLE

main35462-22011iMS122,123..ATM198308-198708

main35462-30020iMS125198410-198708

35462ASPRING, COMPRESSION (FOR THROTTLE VALVE)

main90501-07051iMS125198410-198708

L=20.58

main90501-07680iMS122,123..ATM198308-198708

L=19.24,SECONDARY

main90501-11011iMS123..4FC..EUG198308-198708

PRIMARY

main90501-12011iMS122..ATM198308-198609

L=39.71,PRIMARY

main90501-12077iMS122..ATM198609-198708

L=39.76,PRIMARY

35462CSTOPPER, VALVE VIBRATING

main35422-22010iMS122,123..ATM198308-198708

35462DRING, E (FOR THROTTLE VALVE)

main90523-06023iMS12#..ATM198308-198708

35465PLUG, INTERMEDIATE SHIFT VALVE

main35465-22010iMS122,123..ATM..(ARL,GEN,SAA,SWZ)198308-198708

35467VALVE, INTERMEDIATE SHIFT

main35467-22010iMS122,123..ATM..(ARL,GEN,SAA,SWZ)198308-198708

35468CVALVE, SECONDARY REGULATOR

main35204-30010iMS122,123..ATM198509-198708

main35468-12020iMS125198410-198708

main35468-14010iMS122,123..ATM198308-198607

main35468-22010iMS123..ARL,SWZ198308-198509

35468DSPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

main90501-15007iMS125198410-198708

main90501-19001iMS122,123..ATM198308-198708

35472COVER, VALVE BODY, NO.2

main35472-22010iMS122,123..ATM..(ARL,GEN,SAA,SWZ)198308-198708

main35472-30010iMS123..4FC..EUG198308-198708

35473COVER, TRANSMISSION VALVE BODY

main35473-22010iMS122,123..ATM198308-198708

35479SEAT, INTERMEDIATE SHIFT VALVE

main35479-22010iMS122,123..ATM..(ARL,GEN,SAA,SWZ)198308-198708

35521CAM, THROTTLE VALVE

main35521-24010iMS122..HT..4FC198609-198708

main35521-30010iMS122..ATM198308-198708

main35521-30030iMS123,125198308-198708

35521ASPRING (FOR THROTTLE VALVE CAM RETURN)

main90508-11007iMS125198410-198708

main90508-12331iMS122,123..ATM198308-198708

35521BWASHER (FOR THROTTLE VALVE CAM SET)

main90201-06472iMS12#..ATM198308-198708

35522PIN, THROTTLE VALVE CAM

main35522-22010iMS12#..ATM198308-198708

9010105002

main90101-05002

9010105003

main90101-05003

9010105417

main90101-05417

9010505002

main90105-05002

9010505003

main90105-05003

9010505005

main90105-05005

9010505007

main90105-05007

9010506018

main90105-06018

9454100500

main94541-00500

9454200600

main94542-00600

49 parts on this diagram · 13 diagrams in section
