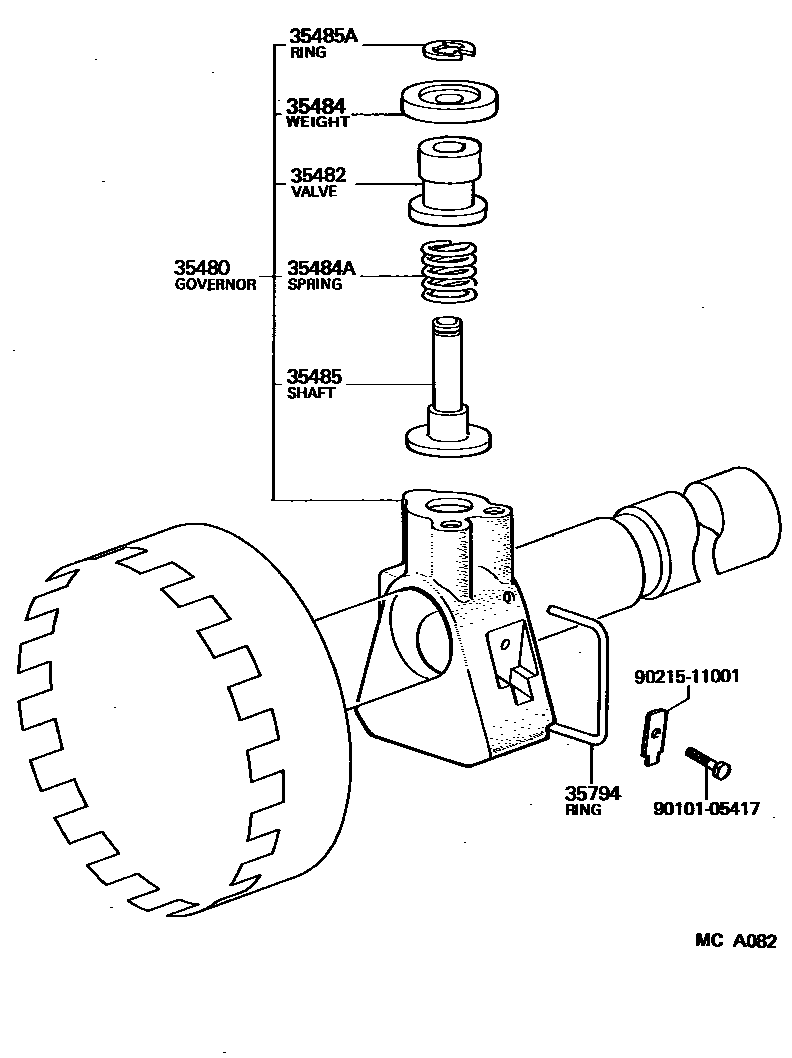

REAR OIL PUMP & GOVERNOR (ATM)

35480GOVERNOR

main35480-28030iMS122..HT..4FC198609-198708

main35480-30060iMS122..ATM198308-198708

35482VALVE, GOVERNOR

main35482-22010iMS122,123..ATM..(ARL,GEN,SAA,SWZ)198308-198708

main35482-30030iMS122..HT..4FC198609-198708

35484WEIGHT, GOVERNOR, OUTER

main35484-22010iMS122,123..ATM..(ARL,GEN,SAA,SWZ)198308-198708

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-09070iMS122..HT..4FC198609-198708

main90501-09673iMS122,123..ATM..(ARL,GEN,SAA,SWZ)198308-198708

35485SHAFT, GOVERNOR VALVE

main35485-22010iMS122,123..ATM..(ARL,GEN,SAA,SWZ)198308-198708

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iMS122,123..ATM..(ARL,GEN,SAA,SWZ)198308-198708

35794RING, GOVERNOR RETAINING

main35794-22010iMS122,123..ATM..(ARL,GEN,SAA,SWZ)198308-198708

9010105417

main90101-05417

9021511001

main90215-11001

9 parts on this diagram · 1 diagram in section
