EXTENSION HOUSING (ATM)

04332SEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)

main04332-30020iMS122,123..ATM198308-198708

sub04332-30030

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-30091iMS12#..ATM..(ARL,GEN,SAA,SWZ)198308-198410

sub35108-30092

main35108-30092iMS122..ATM198410-198708

sub35108-30130

main35108-30100iMS123..4FC..EUG198308-198410

sub35108-30101

main35108-30101iMS123198410-198708

sub35108-30102

main35108-30110iMS125198410-198708

sub35108-30111

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-40001iMS125198410-198708

35108SRETAINER, EXTENSION HOUSING DUST SEAL (ATM)

main33145-30010iMS122,123..ATM198308-198708

35108TSEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90303-38010iMS122,123..ATM198308-198708

35146DEFLECTOR, EXTENSION HOUSING DUST (ATM)

main33146-30010iMS12#..ATM198308-198708

sub33146-30020

35182GASKET, EXTENSION HOUSING (ATM)

main35182-22010iMS12#..ATM198308-198708

sub35182-28010

35189AGASKET, EXTENSION HOUSING BUSH APPLY TUBE

main35189-30010iMS12#..ATM198410-198708

35847ATUBE, EXTENSION HOUSING BUSH APPLY

main35847-30020iMS12#..ATM198410-198708

9011910232

main90119-10232

9011910233

main90119-10233

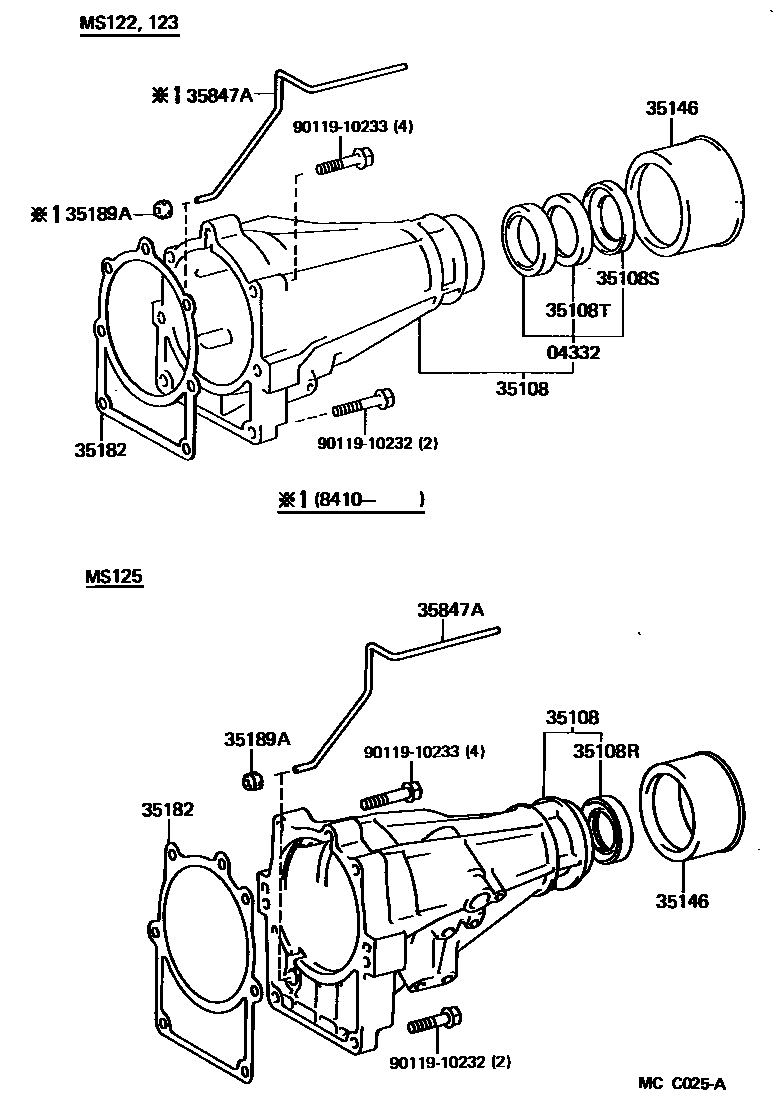

11 parts on this diagram · 1 diagram in section
