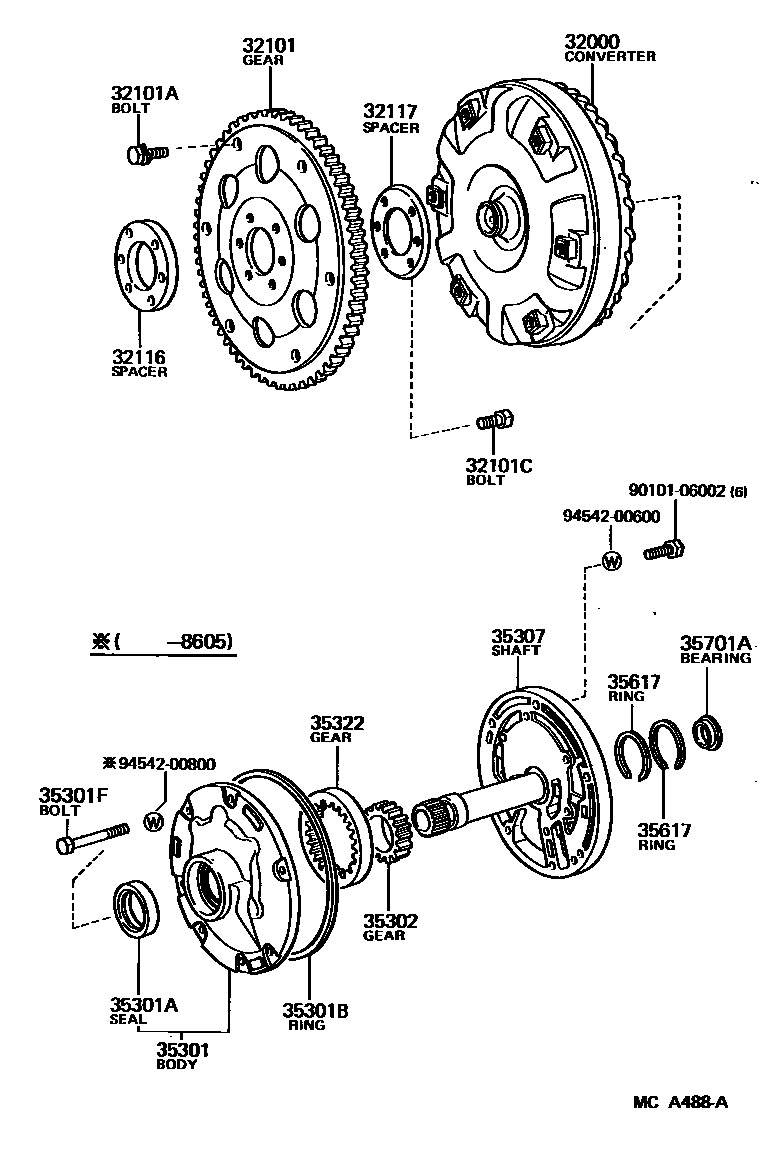

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1 0002 1

32000CONVERTER ASSY, TORQUE

main32000-14070iMS12#..ATM..(EUG,GEN,SAA)198308-198408

sub32000-14071

main32000-14071iMS122,123..ATM..(EUG,GEN,SAA)198408-198708

main32000-30100iMS123..ARL,SWZ198308-198407

sub32000-30101

main32000-30101iMS123..ARL,SWZ198407-198509

main32000-30120iMS125198410-198708

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-30040iMS12#..ATM198308-198408

sub32101-30060

main32101-30060iMS12#..ATM198408-198708

sub32101-30061

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08107iMS12#..ATM198308-198408

*8-1.25PX12-8.4,OLIVE GREEN

main90109-08113iMS12#..ATM198408-198708

*8-1.25PX12-8.4,OLIVE GREEN

main90119-08498iMS12#..ATM198408-198708

*8-1.25PX12-8,BLACK

main91611-60812iMS12#..ATM198308-198408

*8-1.25PX12-7,YELLOW

sub91611-B0812

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90109-10037iMS12#..ATM198308-198708

*10-1.25PX18-12

32116SPACER, DRIVE PLATE, FRONT

main32116-30011iMS12#..ATM198308-198708

32117SPACER, DRIVE PLATE, REAR

main32117-30011iMS12#..ATM198308-198708

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-14010iMS122,123..ATM198308-198708

main35301-30030iMS123..ARL,SWZ198308-198509

main35301-30040iMS125198410-198708

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iMS122,123..ATM198312-198708

main90311-38029iMS125198410-198708

sub90311-38020

main90311-38129iMS12#..ATM198308-198312

sub90311-38020

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99010iMS122,123..ATM198308-198708

main90301-99033iMS125198410-198708

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90101-08042iMS122,123..ATM198308-198605

sub90105-08137

main90105-08091iMS125198410-198708

*8-1.25PX35-35

main90105-08137iMS122,123..ATM198605-198708

35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE

main35321-14010iMS122,123..ATM..(EUG,GEN,SAA)198308-198708

sub35321-22020

sub35321-22030

sub35321-22040

sub35321-22050

sub35321-22060

main35321-22010iMS123..ARL,SWZ198308-198509

sub35321-22090

35307SHAFT SUB-ASSY, STATOR

main35370-14011iMS122,123..ATM..(EUG,GEN,SAA)198308-198412

sub35370-14012

main35370-14012iMS122,123..ATM198412-198708

main35370-30022iMS123..ARL,SWZ198308-198412

sub35370-30023

main35370-30023iMS123..ARL,SWZ198412-198509

main35370-30030iMS125198410-198412

sub35370-30031

main35370-30031iMS125198412-198708

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-14010iMS122,123..ATM..(EUG,GEN,SAA)198308-198708

T=17.286-17.235

sub35322-22020

sub35322-22030

sub35322-22040

sub35322-22050

sub35322-22060

main35322-22010iMS123..ARL,SWZ198308-198509

T=15.286-15.235

sub35322-22090

main35322-32020iMS125198410-198610

T=9.465-9.440

sub35322-32050

main35322-32050iMS125198610-198708

T=9.456-9.474

sub35322-12080

35617RING, CLUTCH DRUM OIL SEAL

main35617-16010iMS122,123..ATM198308-198708

main35617-30020iMS125198410-198708

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-25003iMS122,123..ATM198308-198708

9010106002

main90101-06002

9454200600

main94542-00600

9454200800

main94542-00800

18 parts on this diagram · 2 diagrams in section
