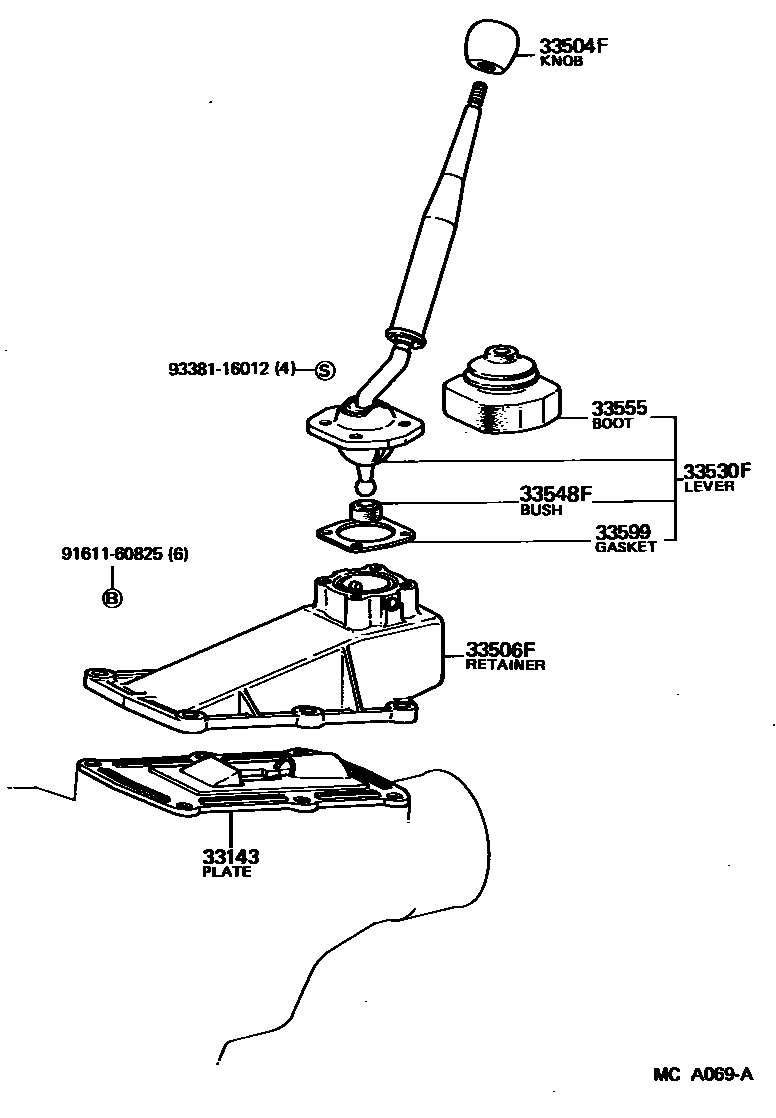

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33143PLATE, EXTENSION HOUSING OIL BAFFLE

main33143-22020iLS120,MS122,123,YS120..4F,5F¥2,920198308-198708

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14060-05iLS120..4F198308-198509

W/POWER STEERING,BEIGE,BEIGE,TRIM4#

sub33504-14060¥3,000

sub33504-14040¥3,000

main33504-14060-14iLS120..4F198308-198604

W/POWER STEERING,BLUE,BLUE,TRIM8#

sub33504-14060¥3,000

sub33504-14040¥3,000

main33504-14060-26iMS122,YS120..LHD..4F198509-198708

W/POWER STEERING,BROWN,BROWN,TRIM4#

sub33504-14060¥3,000

sub33504-14040¥3,000

main33504-14060-34iLS120..4F198604-198708

W/POWER STEERING,BLUE,BLUE,TRIM8#

sub33504-14060¥3,000

sub33504-14040¥3,000

main33504-22101-14iLS120,MS122,YS120..4F198308-198604

BLUE,BLUE,TRIM8#

sub33504-14040¥3,000

sub33504-22101¥2,710

main33504-22101-26iLS120,MS122,YS120..4F198509-198708

BROWN,BROWN,TRIM4#

sub33504-14040¥3,000

sub33504-22101¥2,710

main33504-22101-34iLS120,MS122,YS120..4F198604-198708

BLUE,BLUE,TRIM8#

sub33504-14040¥3,000

sub33504-22101¥2,710

main33504-22101-45iLS120,YS120..4F198308-198509

BEIGE,BEIGE,TRIM4#

sub33504-14040¥3,000

sub33504-22101¥2,710

main33504-24010-04iLS120,MS122,123,YS120..SED..5F198308-198603

BLUE,BLUE,TRIM8#

sub33504-24010¥1,710

main33504-24010-15iLS120,MS122,123,YS120..5F198308-198509

BEIGE,BEIGE,TRIM4#

sub33504-24010¥1,710

main33504-24010-22iLS120,MS122,123,YS120..5F198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub33504-24010¥1,710

main33504-24010-30iMS122..5F198603-198708

BLUE,BLUE,TRIM8#

sub33504-24010¥1,710

main33504-24010-32iMS122..5F..SAL198509-198708

MAROON,MAROON,TRIM3#

sub33504-24010¥1,710

main33504-24010-36iMS122..(HT,SED)..5F198509-198708

BROWN,BROWN,TRIM4#

sub33504-24010¥1,710

main33542-30130-02iMS12#..RHD..4FC198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub33542-30130¥4,750

main33542-30130-04iMS12#..RHD..4FC198308-198604

BLUE,BLUE,TRIM8#

sub33542-30130¥4,750

main33542-30130-05iMS12#..RHD..4FC198308-198509

BEIGE,BEIGE,TRIM4#

sub33542-30130¥4,750

main33542-30130-12iMS12#..RHD..4FC198509-198708

MAROON,MAROON,TRIM3#

sub33542-30130¥4,750

main33542-30130-14iMS12#..RHD..4FC198604-198708

BLUE,BLUE,TRIM8#

sub33542-30130¥4,750

main33542-30130-16iMS12#..RHD..4FC198509-198708

BROWN,SEPIA BROWN,TRIM4#

sub33542-30130¥4,750

main33542-30150-02iMS12#..LHD..4FC198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub33542-30150¥4,750

main33542-30150-04iMS12#..LHD..4FC198308-198604

BLUE,BLUE,TRIM8#

sub33542-30150¥4,750

main33542-30150-05iMS12#..LHD..4FC198308-198509

BEIGE,BEIGE,TRIM4#

sub33542-30150¥4,750

main33542-30150-12iMS122,125..LHD..4FC198509-198708

MAROON,MAROON,TRIM3#

sub33542-30150¥4,750

main33542-30150-14iMS122,125..LHD..4FC198604-198708

BLUE,BLUE,TRIM8#

sub33542-30150¥4,750

main33542-30150-16iMS122..LHD..4FC;MS125..SED..LHD198509-198708

BROWN,SEPIA BROWN,TRIM4#

sub33542-30150¥4,750

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33570-22070iLS120,MS122,123,YS120..4F,5F¥5,800198308-198708

sub33570-30010¥5,700

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-30210iLS120,MS122,YS120..RHD..(4F,5F)¥8,100198308-198708

sub33530-30250¥10,200

main33530-30220iLS120,MS122,123,YS120..LHD..(4F,5F)¥8,100198308-198708

sub33530-30260¥10,100

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-31010iLS120,MS122,123,YS120..4F,5F¥270198308-198708

33555BOOT, SHIFT LEVER

main33555-22050iLS120,MS122,123,YS120..4F,5F¥550198308-198708

main33555-30150iMS12#..4FC¥3,950198308-198708

33599GASKET, CONTROL SHIFT LEVER RETAINER, NO.2

main33584-22020iLS120,MS122,123,YS120..4F,5F¥180198308-198708

9161160825

main91611-60825¥140

9338116012

main93381-16012¥140

9 parts on this diagram · 3 diagrams in section
