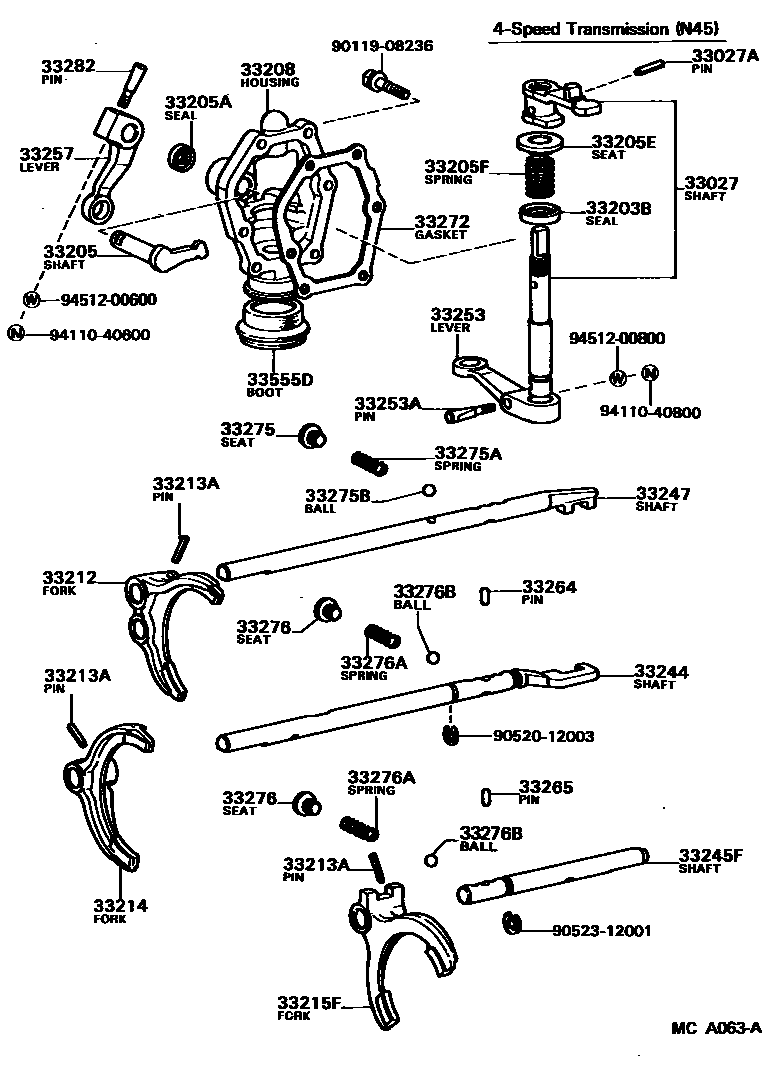

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33027SHAFT SET, SHIFT LEVER
sub33027-30030
33027APIN, SLOTTED SPRING(FOR SHIFT LEVER SHAFT SET)
33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1
33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)
33205SHAFT SUB-ASSY, SELECT LEVER
33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
33205FSPRING, COMPRESSION(FOR SELECT RETURN)
33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT
33213FORK, 1ST & 2ND SHIFT
sub33212-30050
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33215FORK, 3RD & 4TH SHIFT
sub33213-22040
33215FFORK, 4TH SHIFT
sub33214-30031
33244SHAFT, 2ND & 3RD SHIFT FORK
33245FSHAFT, 4TH SHIFT FORK
sub33244-30041
33247SHAFT, 1ST & REVERSE SHIFT FORK
33253LEVER, SHIFT OUTER, NO.1
33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)
33257LEVER, SELECT OUTER
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
L=13.4,OD=6
33265PIN, SHIFT INTERLOCK, NO.2
L=11.2,OD=4,L=11.2
L=13.6,OD=6,L=13.6
L=13.4,OD=6
L=8.6,OD=6,L=8.6
33272GASKET, SHIFT LEVER SHAFT HOUSING
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=18
OD=17
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
33275BBALL, SHAFT DETENT
33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
sub90501-14123
33276BBALL, SHIFT DETENT, NO.2
33282PIN, LEVER LOCK, NO.2
33555DBOOT, SHIFT LEVER
9011908236
main90119-08236
9052012003
main90520-12003
9052312001
main90523-12001
9411040600
main94110-40600
9411040800
main94110-40800
9451200600
main94512-00600
9451200800
main94512-00800
40 parts on this diagram · 4 diagrams in section
