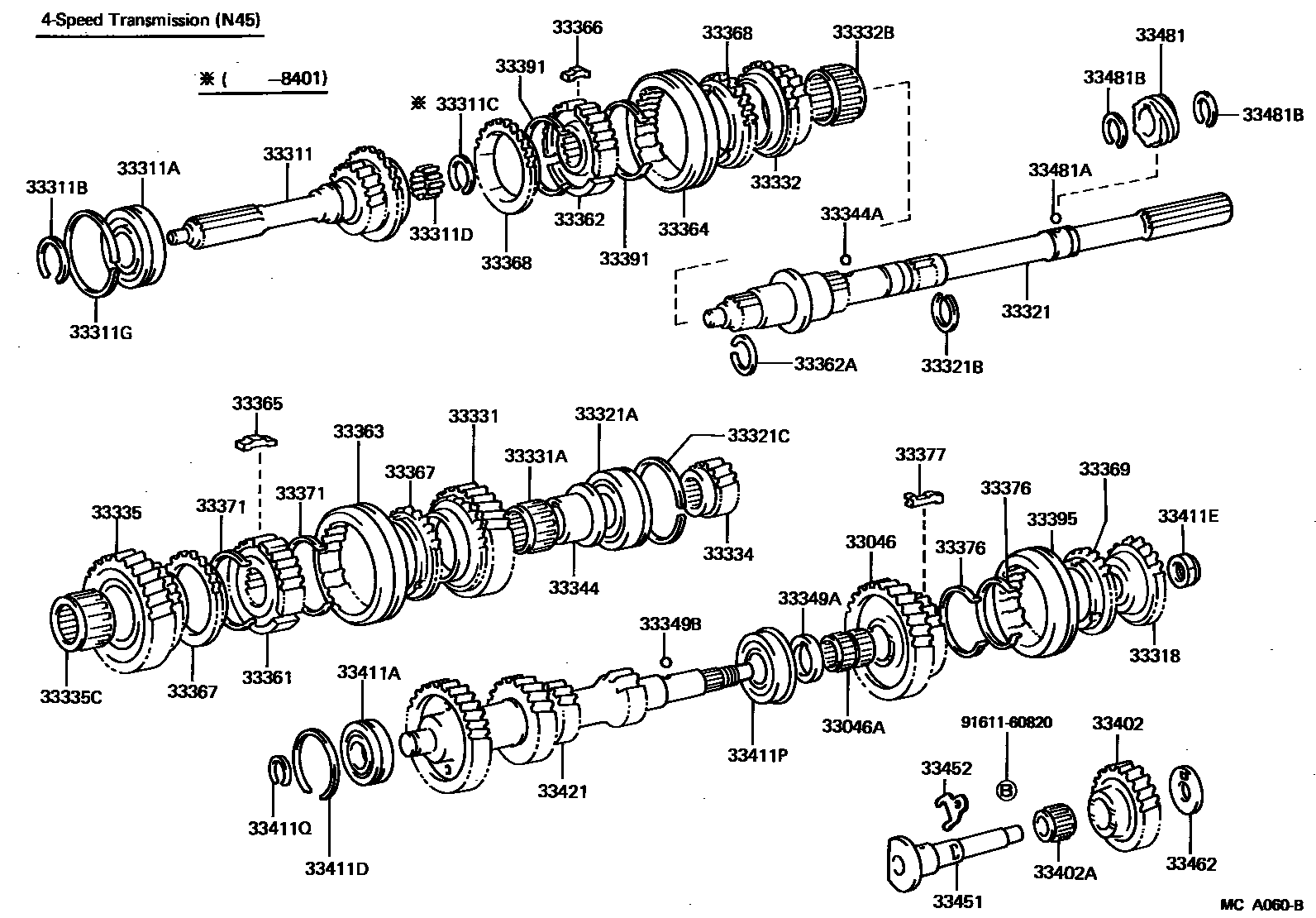

TRANSMISSION GEAR (MTM)
33046ABEARING(FOR COUNTERSHAFT 4TH GEAR)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.05,MARK 0,T=2.05
T=2.10,MARK 1,T=2.10
T=2.15,MARK 2,T=2.15
T=2.20,MARK 3,T=2.20
T=2.25,MARK 4,T=2.25
T=2.30,MARK 5,T=2.30
T=2.30-2.35,MARK 11,T=2.30
T=2.35-2.40,MARK 12,T=2.35
T=2.05,MARK 1,T=2.05
T=2.10,MARK 2,T=2.10
T=2.15,MARK 3,T=2.15
T=2.20,MARK 4,T=2.20
T=2.25,MARK 5,T=2.25
33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
ID=71.1
ID=76.4
33318PIECE, GEAR SPLINE, NO.5
sub33318-35030
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=2.68,MARK 14,T=2.68
T=2.74,MARK 15,T=2.74
T=2.67-2.72,MARK A,T=2.67
T=2.73-2.78,MARK B,T=2.73
T=2.79-2.84,MARK C,T=2.79
T=2.85-2.90,MARK D,T=2.85
T=2.91-2.96,MARK E,T=2.91
T=2.97-3.02,MARK F,T=2.97
T=3.03-3.08,MARK G,T=3.03
T=3.09-3.14,MARK H,T=3.09
T=3.15-3.20,MARK J,T=3.15
T=3.21-3.26,MARK K,T=3.21
T=3.27-3.32,MARK L,T=3.27
T=2.43-2.48,MARK 10,T=2.43
T=2.49-2.54,MARK 11,T=2.49
T=2.55-2.60,MARK 12,T=2.55
T=2.61-2.66,MARK 13,T=2.61
T=2.31-2.36,MARK 8,T=2.36
T=2.37-2.42,MARK 9,T=2.37
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.65,ID=71.1
33331ABEARING (FOR REVERSE GEAR)
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33334GEAR, 4TH
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33344BUSH, REVERSE GEAR
33344AKEY OR BALL, REVERSE GEAR BEARING
33349AWASHER, 4TH GEAR
sub33349-35010
33349BBALL (FOR 4TH GEAR WASHER)
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=1.85-1.90,MARK D-1,T=1.85
T=1.95-2.00,MARK E-1,T=1.95
T=1.75-1.80,MARK C-1,T=1.75
T=2.05-2.10,MARK F-1,T=2.05
T=1.80-1.85,MARK D,T=1.80
T=1.90-1.95,MARK E,T=1.90
T=2.00-2.05,MARK F,T=2.00
33363SLEEVE, TRANSMISSION HUB, NO.1
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
1ST
REVERSE
33368RING, SYNCHRONIZER, NO.2
33369RING, SYNCHRONIZER, NO.3
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33376SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB)
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33402ABUSH OR BEARING (FOR REVERSE IDLER GEAR)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
T=1.07,OD=55.6
33411ENUT(FOR COUNTER GEAR SHAFT)
33411PBEARING, COUNTERSHAFT CENTER
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
T=2.10-2.15,T=2.10
T=2.20-2.25,T=2.20
T=2.05-2.10,T=2.05
T=2.15-2.20,T=2.15
T=2.25-2.30,T=2.25
T=2.30-2.35,T=2.35
T=2.35-2.40,T=2.40
33421GEAR, COUNTER
33451SHAFT, REVERSE IDLER GEAR
33452STOPPER, REVERSE IDLER GEAR SHAFT
33462WASHER, REVERSE IDLER THRUST
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=6,MARK 6X18-20
N-11
N=10,MARK 10X31-33
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
9161160820
main91611-60820
