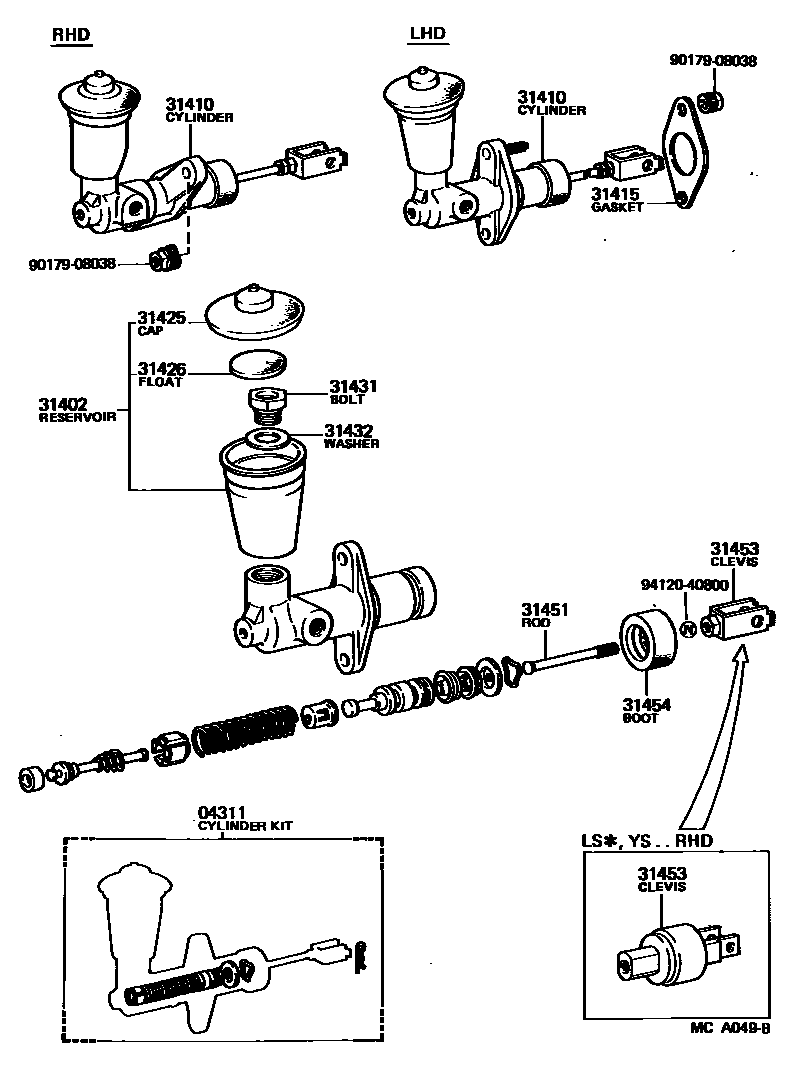

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-14030iLS120,MS122,YS120..MTM198609-198704

sub04311-14031

main04311-14031iLS120,MS122,YS120..MTM198704-198708

sub04311-14032

main04311-30090iLS120,MS122,123,YS120..MTM198308-198609

sub04311-30091

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-30050iYS120;LS120,MS12#..LHD..MTM198308-198708

main31402-30060iLS120,MS122,YS120..RHD..MTM198309-198708

sub31402-30061

sub47231-20010

main47202-12050iLS120,MS122..RHD..MTM198308-198309

31410CYLINDER ASSY, CLUTCH MASTER

main31410-30180iMS122..RHD..5F198308-198704

sub31410-30181

main31410-30181iMS122..RHD..5F198704-198708

sub31410-30182

main31410-30190iMS122,123,YS120..LHD..MTM198308-198702

sub31410-30191

main31410-30191iMS122,YS120..LHD..MTM198702-198708

sub31410-30192

main31410-30200iLS120..RHD198308-198502

sub31410-30201

main31410-30201iLS120..RHD198502-198612

sub31410-30202

main31410-30202iLS120..RHD198612-198704

sub31410-30203

main31410-30203iLS120..RHD198704-198708

sub31410-30204

main31410-30211iYS120..RHD198308-198502

sub31410-30212

main31410-30212iYS120..RHD198502-198708

sub31410-30213

main31410-30220iLS120..LHD198308-198502

sub31410-30221

main31410-30221iLS120..LHD198502-198612

sub31410-30222

main31410-30222iLS120..LHD198612-198704

sub31410-30223

main31410-30223iLS120..LHD198704-198708

sub31410-30224

31415GASKET, CLUTCH MASTER CYLINDER

main31415-30050iLS120,MS122,123,YS120..LHD..MTM198308-198708

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iLS120,MS122,123,YS120..MTM198308-198708

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iLS120,MS122,123,YS120..MTM198308-198708

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iLS120,MS122,123,YS120..MTM198308-198708

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iLS120,MS122,123,YS120..MTM198308-198708

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-12030iLS120..LHD198308-198609

main31451-22070iLS120,YS120..RHD198609-198708

main31451-30070iMS122,123,YS120..LHD..MTM198308-198609

main31451-30080iMS122..RHD..5F198308-198609

main31451-30090iLS120,YS120..RHD198308-198609

main31451-30100iLS120..LHD198609-198708

main31451-30110iMS122,YS120..LHD..MTM198609-198708

sub31410-30192

main31451-30120iMS122..RHD..5F198609-198708

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28011iLS120;YS120..RHD198502-198708

sub31404-28012

main31404-30041iLS120;YS120..RHD198308-198502

main31404-30050iLS120198612-198708

sub31404-30051

main31453-22010iYS120..LHD198308-198610

sub31453-35010

main31453-35010iYS120..LHD198610-198708

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iLS120,MS122,YS120..RHD..MTM198308-198708

main31454-30060iLS120,MS122,123,YS120..LHD..MTM198308-198708

9017908038

main90179-08038

9412040800

main94120-40800

13 parts on this diagram · 1 diagram in section
