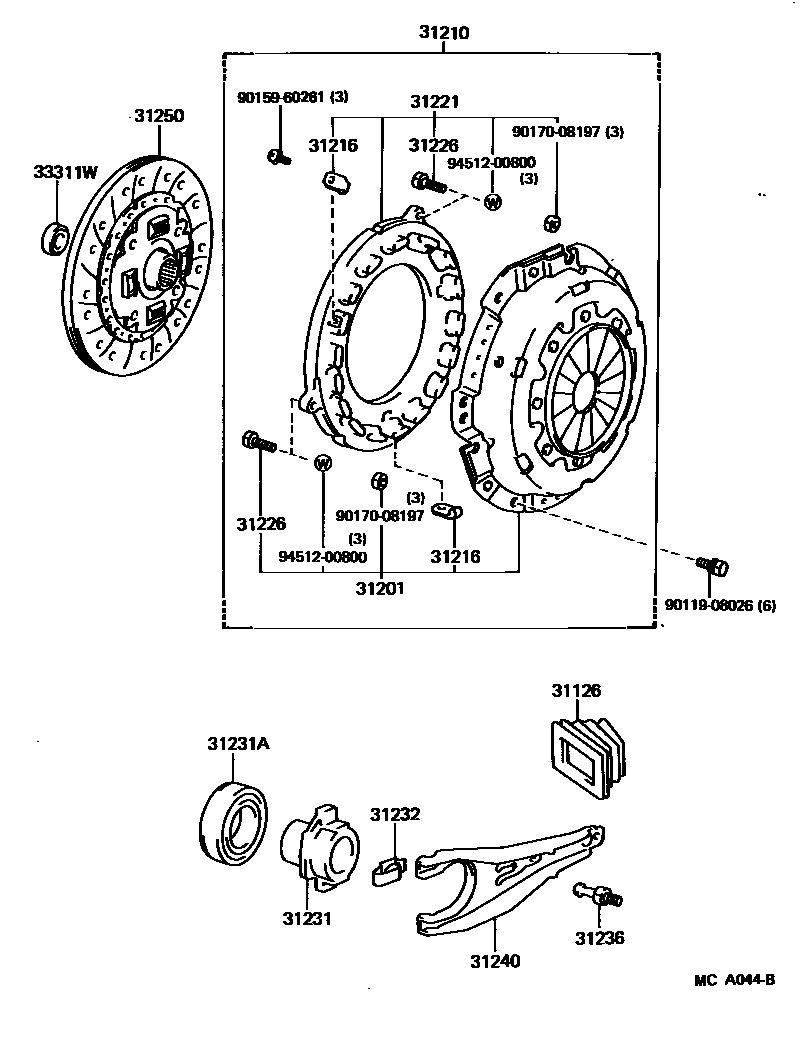

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iYS120198308-198708

main31126-20070iLS120,MS122,123..MTM198308-198708

31201COVER SUB-ASSY, CLUTCH

main31201-29085iLS120,YS120198308-198708

sub31201-26010

31210COVER ASSY, CLUTCH

main31210-14121iMS122,123..MTM198308-198708

sub31210-14122

main31210-26070iYS120198702-198708

sub31210-22121

main31210-36029iLS120198308-198708

sub31210-36200

31216SPRING, CLUTCH RETRACTING

main31216-30010iLS120,YS120198308-198708

31221PLATE, CLUTCH PRESSURE

main31221-39056iLS120,YS120198308-198708

sub31221-36025

31226BOLT, CLUTCH PRESSURE PLATE

main90101-08022iLS120,YS120198308-198708

31231HUB, CLUTCH RELEASE BEARING

main31231-20090iLS120198308-198708

main31231-36070iMS122,123,YS120..MTM198308-198708

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iLS120,MS122,123,YS120..MTM198308-198708

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010iLS120,MS122,123,YS120..MTM198308-198708

31236BALL, RELEASE FORK

main31236-30060iLS120,MS122,123,YS120..MTM198308-198708

31240FORK ASSY, CLUTCH RELEASE

main31204-20070iYS120198308-198511

sub31204-20072

main31204-20071iYS120198511-198708

main31204-20080iMS122,123..MTM198308-198708

main31204-20090iLS120198308-198708

31250DISC ASSY, CLUTCH

main31250-14130iMS122,123..MTM198308-198708

sub31250-36290

main31250-26090iYS120198508-198702

sub31250-26091

main31250-26091iYS120198702-198708

sub31250-25122

main31250-30330iYS120198308-198508

sub31250-25122

main31250-30340iLS120198308-198508

sub31250-30360

main31250-30360iLS120198508-198708

sub31250-35190

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLS120,MS122,123,YS120..MTM198308-198708

sub90363-12024

9011908026

main90119-08026

9015960261

main90159-60261

9017008197

main90170-08197

9451200800

main94512-00800

17 parts on this diagram · 3 diagrams in section
