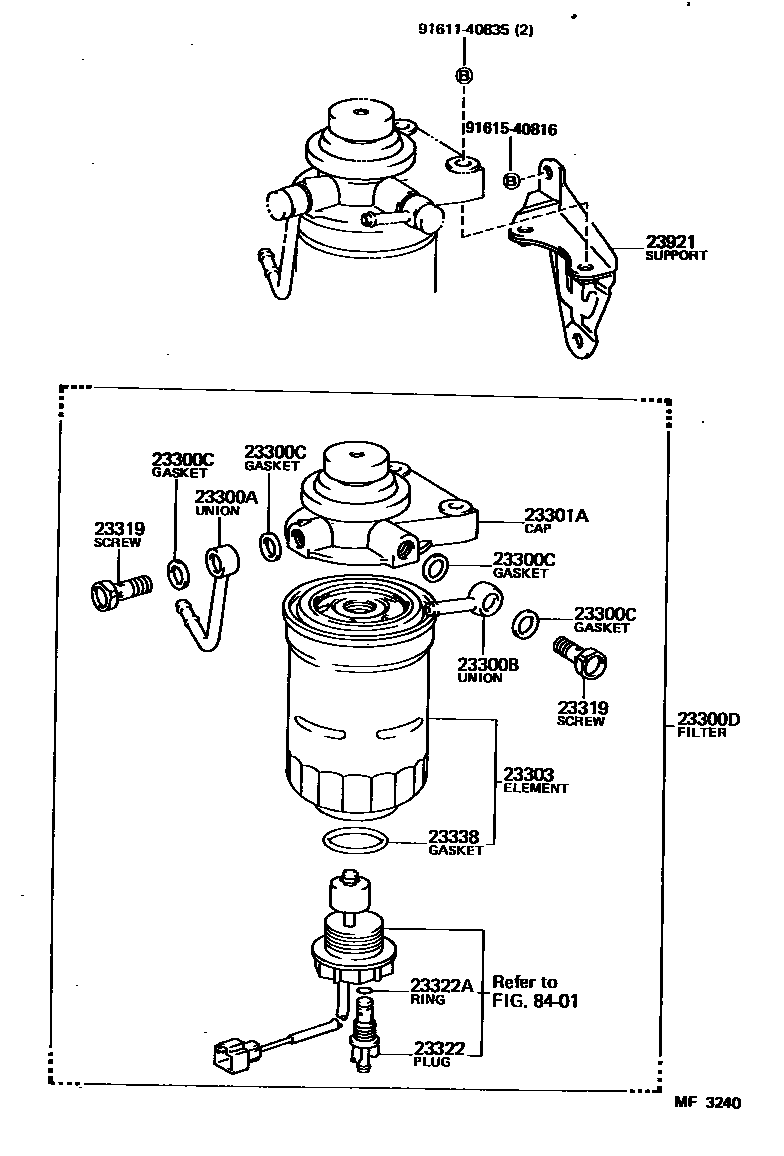

FUEL FILTER

0001 1 0002 1 0003 1 0004 1 0005 1

23300FILTER ASSY, FUEL

main23300-41031i3Y..YS120198308-198708

23300AUNION, NIPPLE(FOR FUEL FILTER INLET)

main23323-54040i2L..LS120..RHD198308-198609

main23323-54080i2L..LS120..LHD198308-198708

23300BUNION, NIPPLE(FOR FUEL FILTER OUTLET)

main23323-54090i2L..LS120..LHD198308-198708

main90405-08016i2L..LS120..RHD198308-198609

23300CGASKET, NIPPLE UNION(FOR FUEL)

main22447-47030i2L..LS120198308-198708

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-54150i2L..LS120..RHD198308-198609

sub23301-54260

sub23303-64010

sub84461-14030

main23300-54160i2L..LS120..LHD198308-198708

23301ACAP ASSY, FUEL FILTER

main23301-54260i2L..LS120..RHD198609-198708

main23301-64010i2L..LS120..RHD198308-198609

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-54071i2L..LS120..LHD198308-198708

sub23303-54072

main23303-64010i2L..LS120..RHD198308-198708

23319SCREW, FUEL PIPE FOLLOW

main90099-18011i2L..LS120198308-198708

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-54010i2L..LS120..LHD198308-198708

main23322-64010i2L..LS120..RHD198308-198708

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2L..LS120198308-198708

23338GASKET(FOR WARNING SWITCH)

main23338-54010i2L..LS120..LHD198308-198708

main23344-64010i2L..LS120..RHD198308-198708

23921SUPPORT, FUEL FILTER

main23921-54120i2L..LS120..RHD198308-198509

main23921-54121i2L..LS120..RHD198509-198708

main23921-54130i2L..LS120..LHD198308-198702

sub23921-54131

main23921-54131i2L..LS120..LHD198702-198708

main90929-01062i5M..MS122198308-198708

main90929-01067i3Y..YS120198308-198708

8401

9161140835

main91611-40835

9161540816

main91615-40816

15 parts on this diagram · 5 diagrams in section
