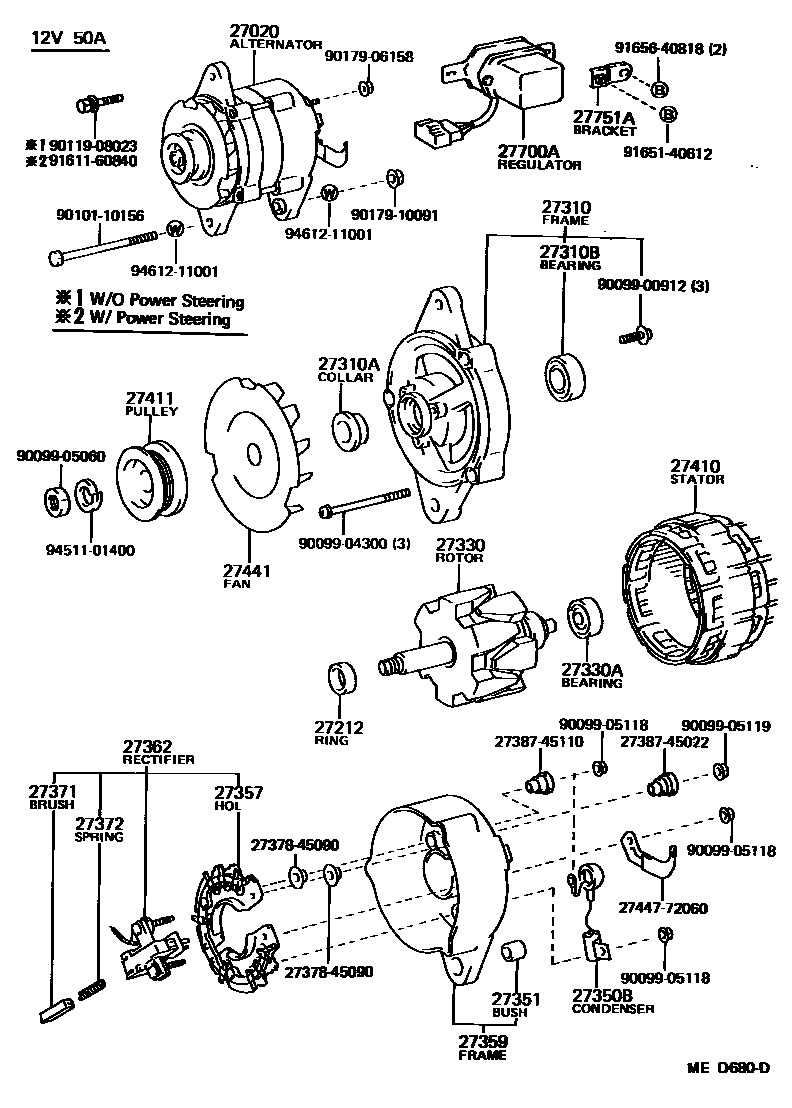

ALTERNATOR

0001 1 0002 1 0003 1

27020ALTERNATOR ASSY

main27020-54160i2L..LS120198308-198708

12V 55A,12V 55A

main27020-72010i3Y..YS120198704-198708

12V 55A,12V 50A

main27020-72060i3Y..YS120198308-198704

12V 50A,12V 50A

sub27020-72010

main27060-43060i5ME..MS123198308-198608

12V 60A,12V 60A

sub27060-43110

main27060-43061i5ME..MS122198608-198702

12V 60A,12V 60A

sub27060-43062

main27060-43062i5ME..MS122198702-198704

12V 60A,12V 60A

sub27060-43092

main27060-43070i5M..MS122198308-198604

12V 55A

main27060-43090i5MGE,6MGE..MS123,125198308-198608

12V 60A

main27060-43091i5MGE,6MGE..MS123,125198608-198702

12V 60A

sub27060-43092

main27060-43092i5MGE,6MGE..MS123,125198702-198708

12V 60A

main27060-43120i5M..MS122198511-198608

12V 60A

main27060-43121i5M..MS122198608-198703

12V 60A

sub27060-43122

sub12511-41050

main27060-43122i5M..MS122198703-198708

12V 60A

sub27060-43150

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27333-57060i2L..LS120198308-198708

12V 55A

main27412-15150i3Y..YS120198604-198708

12V 50A

main27412-45070i3Y..YS120198308-198604

12V 50A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-43060i5ME,5MGE,6MGE..MS12#198702-198708

12V 60A

sub27310-75040

main27310-43080i5M..MS122198308-198501

12V 55A

main27310-43081i5M..MS122198509-198604

12V 55A

main27310-43100i5ME..MS122198409-198702

12V 60A

sub27310-72101

main27310-43132i5M..MS122198703-198708

12V 60A

main27310-45110i3Y..YS120198308-198311

12V 50A

main27310-54130i2L..LS120198308-198708

12V 55A

sub27310-54131

main27310-72040i3Y..YS120198311-198401

12V 50A

sub27310-72041

sub27412-16030

main27310-72041i3Y..YS120198401-198708

12V 50A

main27310-72050i5ME,5MGE..MS123198308-198408

12V 60A

main27310-72090i5ME..MS123198408-198509

12V 60A

sub27310-72050

main27310-72160i5M..MS122..GEN198511-198703

12V 60A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-16030i3Y..YS120198401-198604

12V 50A

main27412-16040i3Y..YS120198604-198708

12V 50A

main27412-31040i3Y..YS120198308-198311

12V 50A

main27412-57060i2L..LS120198308-198708

12V 55A

main27412-63030i3Y..YS120198311-198401

12V 50A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10125i3Y..YS120198308-198311

12V 50A

main90099-10137i2L..LS120198308-198708

12V 55A

main90099-10142i3Y..YS120198311-198708

12V 50A

sub90099-10223

main90099-10152i5M#..MS12#198308-198408

12V 55A,60A

main90099-10156i5ME..MS123198409-198509

12V 60A

sub90099-10152

main90099-10156i5M#..MS12#198408-198501

12V 55A,60A

sub90099-10152

main90099-10159i5M..MS122..SAA198501-198604

12V 55A

sub90099-10199

main90099-10159i5MGE,6MGE..MS123,125198409-198702

12V 60A

sub90099-10199

main90099-10169i5M..MS122198511-198703

12V 60A

main90099-10177i5M..MS122198703-198708

12V 60A

main90099-10178i5ME,5MGE,6MGE..MS12#198702-198708

12V 60A

27330ROTOR ASSY, ALTERNATOR

main27330-10020i5M..MS122198501-198604

12V 55A

sub27330-10021

main27330-43132i5M..MS122198703-198708

12V 60A

main27330-45070i3Y..YS120198308-198708

12V 50A

sub27330-16030

main27330-63021i5ME..MS123198308-198509

12V 60A

sub27330-72100

main27330-63041i5M..MS122198308-198501

12V 55A

sub27330-10020

main27330-64010i2L..LS120198308-198708

12V 55A

main27330-72100i5ME..MS122198409-198706

12V 60A

sub27330-72101

main27330-72101i5MGE,6MGE..MS123,125198706-198708

12V 60A

main27330-72161i5M..MS122198511-198704

12V 60A

sub27330-72130

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10116i3Y..YS120198308-198708

12V 50A

main90099-10140i5M#,6MGE..MS12#198308-198708

12V 55A,60A

27350FRAME ASSY, RECTIFIER END

main27350-54130i2L..LS120198308-198708

12V 55A

27350BCONDENSER, ALTERNATOR

main90099-52065i3Y..YS120198308-198708

12V 50A

sub90099-52034

main90099-52082i2L..LS120198308-198611

12V 55A

main90099-52083i5MGE,6MGE..MS123,125198308-198708

12V 60A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i3Y..YS120198308-198708

12V 50A

main27351-56013i2L..LS120198308-198708

12V 55A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-15022i3Y..YS120198308-198708

12V 50A

main27357-63020i5MGE,6MGE..MS123,125198308-198708

12V 60A

main27357-63040i5M..MS122..SAA198308-198604

12V 55A

main27357-64060i2L..LS120198408-198708

12V 55A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16010i5ME,5MGE..MS123198308-198404

12V 60A

sub27359-16011

sub27370-16011

main27359-16011i5MGE,6MGE..MS123,125198409-198702

12V 60A

sub27359-16012

sub27384-16380

main27359-16180i5MGE,6MGE..MS123,125198702-198708

12V 60A

sub27359-16181

sub27384-16380

main27359-43050i5ME..MS122198404-198702

12V 60A

sub27359-16011

main27359-43051i5ME..MS122198702-198704

12V 60A

sub27359-16180

main27359-43080i5M..MS122198308-198404

12V 55A

sub27359-43081

sub27370-63021

main27359-43081i5M..MS122..SAA198404-198604

12V 55A

sub27359-16081

main27359-43130i5M..MS122198511-198703

12V 60A

sub27359-72160

main27359-43132i5M..MS122198703-198708

12V 60A

sub27359-72130

main27359-72010i3Y..YS120198308-198708

12V 50A

27362RECTIFIER ASSY, W/BRUSH

main27362-15022i3Y..YS120198308-198708

12V 50A

27371BRUSH, ALTERNATOR

main27371-31011i3Y..YS120198308-198708

12V 50A

main27371-56070i2L..LS120198308-198708

12V 55A

sub27371-54412

main27371-63020i5ME,5MGE,6MGE..MS12#198308-198708

12V 55A,60A

sub27371-70300

main27371-63020i5M..MS122..SAA198511-198604

12V 55A

sub27371-70300

main27371-72161i5M..MS122..GEN198511-198708

12V 60A

sub27371-70300

27372SPRING, ALTERNATOR BRUSH

main27372-31011i3Y..YS120198308-198708

12V 50A

main27372-56070i2L..LS120198308-198708

12V 55A

main27372-63020i5M#,6MGE..MS12#198308-198501

12V 55A,60A

sub27372-87501

main27372-72100i5M#,6MGE..MS12#198501-198708

12V 55A,60A

sub27372-63020

27410STATOR ASSY, ALTERNATOR

main27410-41080i3Y..YS120198308-198708

12V 50A

main27410-43040i2L..LS120198408-198708

12V 55A

main27410-64010i2L..LS120198308-198408

12V 55A

27411PULLEY, ALTERNATOR

main27411-43050i5ME..MS123198308-198509

12V 60A

main27411-43051i5MGE,6MGE..MS123,125198702-198708

12V 60A

main27411-43080i5M..MS122198308-198501

12V 55A

main27411-43081i5M..MS122..SAA198501-198708

12V 55A

main27411-43120i5M,5ME..MS122198409-198708

12V 60A

main27411-54170i2L..LS120198308-198708

12V 55A

sub27411-54171

main27411-72040i3Y..YS120198308-198708

12V 50A

27441FAN, ALTERNATOR

main27441-56090i2L..LS120198308-198708

12V 55A

main27441-63030i3Y..YS120198308-198708

12V 50A

27700AREGULATOR ASSY, GENERATOR

main27700-63021i5ME,5MGE,6MGE..MS12#198308-198708

12V 55A,60A

sub27700-70030

main27700-63021i5M..MS122..SAA198511-198604

12V 55A

sub27700-70030

main27700-63040i2L,3Y..LS120,YS120198504-198708

sub27700-63010

main27700-72070i5M..MS122..GEN198511-198708

12V 60A

sub27700-72080

main27700-73010i2L,3Y..LS120,YS120198308-198504

27751ABRACKET, GENERATOR REGULATOR

main27751-73010i3Y..YS120198308-198708

2737845090INSULATOR, ALTERNATOR, NO.1

main27378-45090

2738745022INSULATOR, TERMINAL

main27387-45022

2738745110INSULATOR, TERMINAL

main27387-45110

2744772060CLIP, ALTERNATOR CORD

main27447-72060

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110156

main90101-10156

9011908023

main90119-08023

9017906158

main90179-06158

9017910091

main90179-10091

9161160840

main91611-60840

9165140612

main91651-40612

9165640818

main91656-40818

9451101400

main94511-01400

9461211001

main94612-11001
