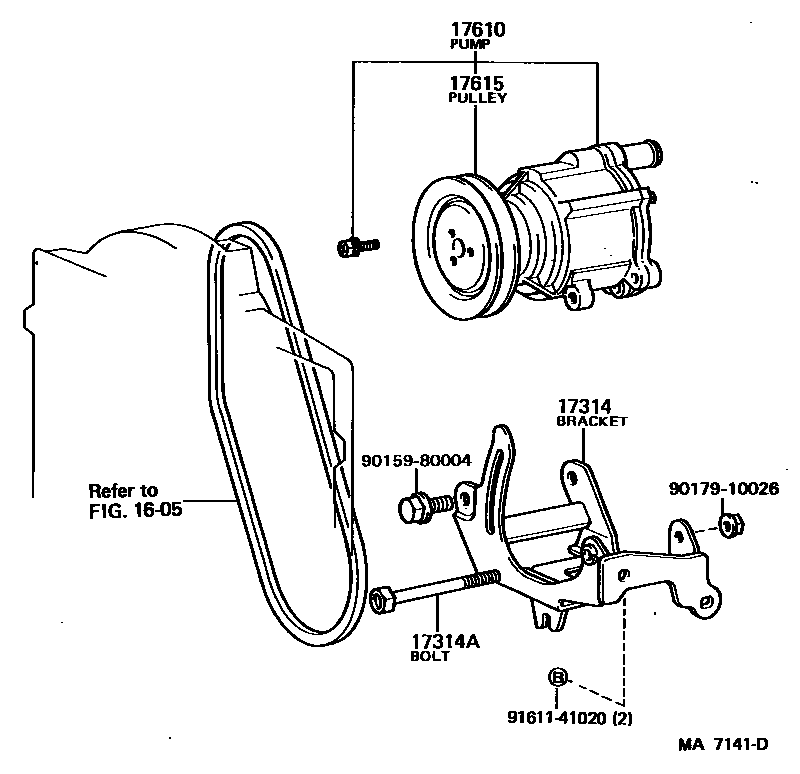

AIR PUMP

1605

17314BRACKET, AIR PUMP

main17314-41031i5ME..MS123198308-198502

main17314-43010i5ME..MS123198502-198509

17314ABOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING)

main90110-10001i5ME..MS123198308-198509

17610PUMP ASSY, AIR

main17610-45031i5ME..MS123198308-198509

17615PULLEY(FOR AIR PUMP)

main17615-41020i5ME..MS123198308-198509

9015980004

main90159-80004

9017910026

main90179-10026

9161141020

main91611-41020

8 parts on this diagram · 1 diagram in section
