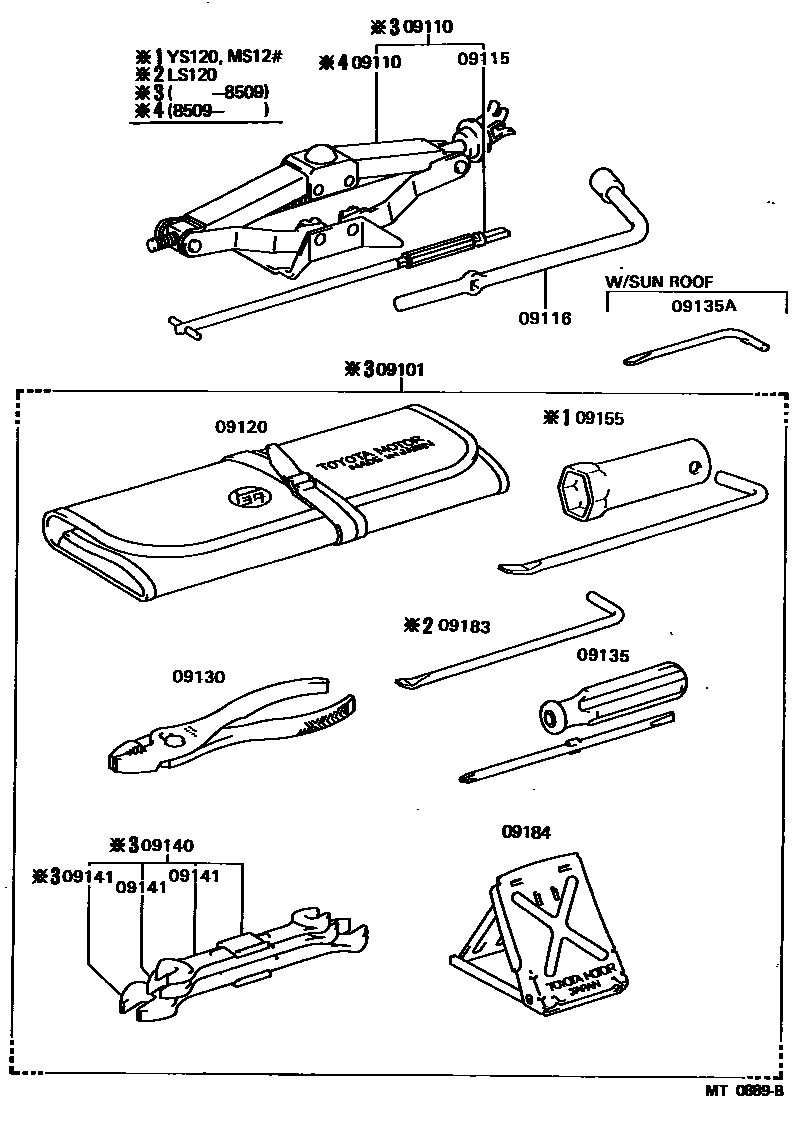

STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09102-30020iLS120198308-198509

main09102-30021iMS122,YS120198308-198509

main09102-30023iMS123,125..EUG,GEN,SAA198308-198509

09110JACK ASSY

main09111-30060iLS120,MS12#,YS120..SED198509-198602

sub09111-30070

main09111-30070iLS120,MS12#,YS120..SED198602-198708

main09111-31060iMS122..WG198509-198708

main09118-30010iLS120,MS12#,YS120..SED198308-198509

sub09111-30070

main09118-31010iMS122..WG198308-198509

sub09111-31060

sub09115-24010

09115ROD SUB-ASSY, JACK HANDLE

main09115-24010iLS120,MS12#,YS120198308-198708

09116LEVER, JACK HANDLE

main09116-16010iLS120,MS12#,YS120198308-198708

09120BAG, TOOL

main09120-30020iMS123,125198509-198708

main09120-30030iLS120,MS122,YS120198308-198708

09130PLIERS

main99913-11500iLS120,MS12#,YS120198308-198708

09135DRIVER, SCREW

main99915-10700iLS120,MS12#,YS120198308-198708

09135ABIT, SCREW DRIVER

main09135-00012iMS12#..SED..(EUG,GEN,SAA,SWZ)198308-198708

W/SUN ROOF

09140SPANNER SET

main09140-12011iLS120,MS12#,YS120198308-198509

09141SPANNER

main99914-10810iLS120,MS12#,YS120198308-198708

8 X 10,8X10

main99914-11012iLS120,MS12#,YS120198308-198509

10 X 12,10X12

main99914-11214iLS120,MS12#,YS120198509-198708

12 X 14,12X14

main99914-11417iLS120,MS12#,YS120198308-198509

14 X 17,14X17

09155WRENCH, SPARK PLUG

main09155-41020iMS122,YS120198308-198708

main09155-43021iMS123,125..EUG,GEN,SAA198308-198708

09183WRENCH, WHEEL CAP

main09183-00010iLS120198308-198708

09184STOPPER, WHEEL

main09184-00010iLS120,MS12#,YS120198308-198708

13 parts on this diagram · 1 diagram in section
