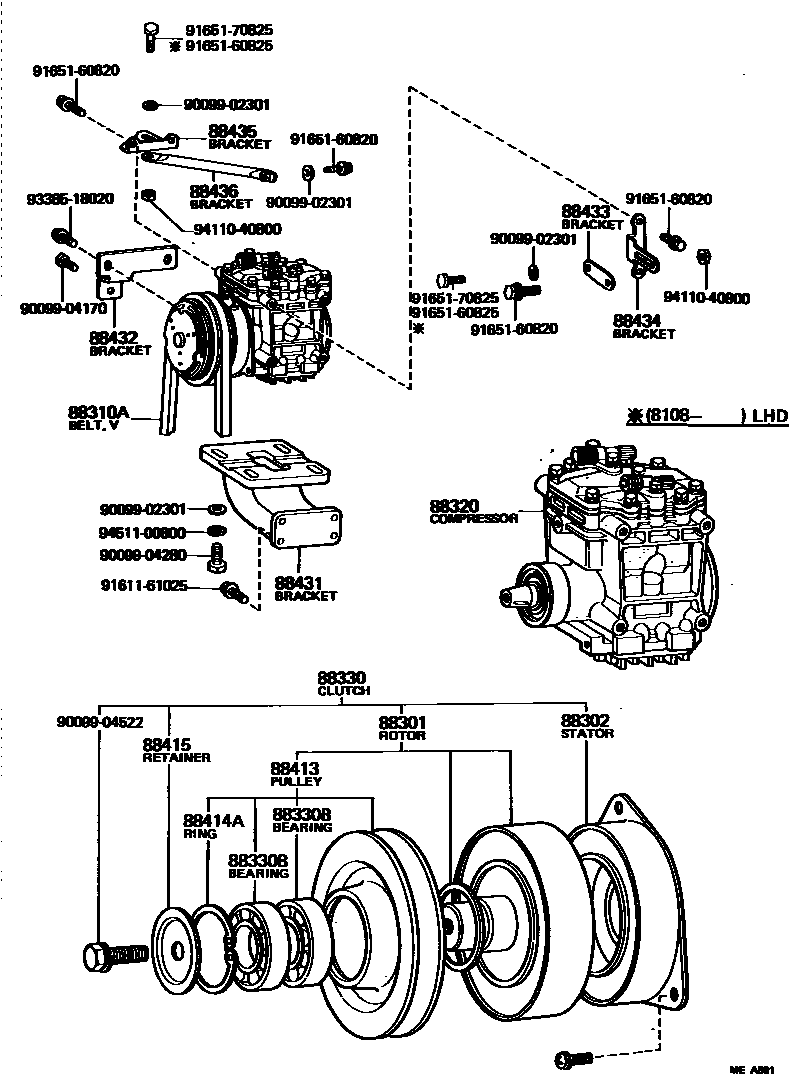

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88401-30280iRS110197909-198307

main88412-22020iMS11#..RHD197909-198105

W/HEATER

sub88412-26010

main88412-22030iMS112..RHD198105-198307

W/HEATER

main88412-26010iLS110197909-198105

sub88412-22240

main88412-30280iMS11#..LHD..(BTP,DLX,SAL)197909-198307

W/BOOST VENTILATOR

main88412-30290iMS11#..RHD..(DLX,SAL)197909-198307

W/HEATER

main88412-30290iMS11#..LHD197909-198307

W/BOOST VENTILATOR

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-30300iRS110197909-198307

main88411-30340iMS11#..RHD197909-198105

W/HEATER

sub88411-30390

main88411-30350iMS11#..LHD..(BTP,DLX,SAL)197909-198307

W/BOOST VENTILATOR

main88411-30360iLS110197909-198105

sub88411-30380

main88411-30370iMS11#..RHD..(DLX,SAL)197909-198307

W/BOOST VENTILATOR

sub88411-26030

main88411-30370iMS11#..LHD197909-198307

W/HEATER

sub88411-26030

main88411-30380iLS110198105-198307

main88411-30390iMS112..RHD198105-198307

W/HEATER

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99313-01070iRS110..LHD198108-198307

main99313-51070iRS110197909-198108

sub99313-01070

main99322-00940iMS11#..RHD..(DLX,SAL)197909-198307

W/HEATER

main99322-00950iMS11#..LHD..(BTP,DLX,SAL)197909-198307

W/BOOST VENTILATOR

sub99322-50950

main99322-11270iLS110197909-198307

sub99322-51270

88320COMPRESSOR ASSY, COOLER

main88320-30270iMS11#197909-198307

main88320-30280iRS110..RHD197909-198307

main88320-30300iRS110..LHD197909-198307

main88320-30310iLS110197909-198307

88330CLUTCH ASSY, MAGNET

main88410-30310iRS110197909-198307

main88410-30340iLS110197909-198105

sub88410-30380

main88410-30350iMS11#..RHD197909-198105

W/HEATER

sub88410-30390

main88410-30360iMS11#..LHD..(BTP,DLX,SAL)..CBR197909-198307

W/BOOST VENTILATOR

main88410-30370iMS11#..RHD..(DLX,SAL)..GEN..CBR197909-198307

W/HEATER

main88410-30370iMS11#..RHD..(DLX,SAL)..GEN..CBR197909-198307

W/BOOST VENTILATOR

main88410-30380iLS110198105-198307

main88410-30390iMS112..RHD198105-198307

W/HEATER

88330BBEARING, MAGNET CLUTCH

main90099-10083iRS110197909-198307

main90099-10117iMS11#..RHD197909-198102

W/HEATER

sub90099-10108

main90099-10117iMS11#..LHD..(BTP,DLX,SAL)197909-198307

W/BOOST VENTILATOR

sub90099-10108

main90099-10127iMS11#..RHD..(DLX,SAL)197909-198307

W/HEATER

sub90099-10133

main90099-10127iLS110197909-198105

sub90099-10133

main90099-10127iMS11#..LHD197909-198307

W/BOOST VENTILATOR

sub90099-10133

main90099-10133iMS112..RHD198102-198307

W/HEATER

main90099-10133iLS110198105-198307

88413PULLEY SUB-ASSY, MAGNET CLUTCH

main88402-30260iRS110197909-198307

88414ARING, SHIELD SNAP

main90096-90005iRS110197909-198307

main90099-07094iLS110197909-198105

main90099-07113iMS112..RHD..(DLX,SAL)..GEN198105-198307

W/BOOST VENTILATOR

sub90099-07094

main90099-07113iMS11#197909-198105

sub90099-07094

main90099-07114iMS112..RHD198105-198307

W/HEATER

88415RETAINER, MAGNET CLUTCH BEARING, NO.1

main88415-12020iRS110197909-198307

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-30400iLS110197909-198307

main88431-30420iMS11#..ROY197909-198307

sub88440-30250

sub88431-30430

main88431-30430iMS11#..BTP,DLX,SAL197909-198307

main88432-30350iRS110197909-198307

88432BRACKET, COMPRESSOR MOUNTING, NO.2

main88434-30321iLS110197909-198307

main88688-30410iRS110197909-198307

88433BRACKET, COMPRESSOR MOUNTING, NO.3

main88434-30250iRS110197909-198307

88434BRACKET, COMPRESSOR MOUNTING, NO.4

main88434-30260iRS110197909-198307

88435BRACKET, COMPRESSOR MOUNTING, NO.5

main88434-30280iRS110197909-198307

88436BRACKET, COMPRESSOR MOUNTING, NO.6

main88434-30290iRS110197909-198307

9009902301

main90099-02301

9009904170

main90099-04170

9009904280

main90099-04280

9009904522

main90099-04522

9161161025

main91611-61025

9165160820

main91651-60820

9165160825

main91651-60825

9165170825

main91651-70825

9338518020

main93385-18020

9411040800

main94110-40800

9451100800

main94511-00800

26 parts on this diagram · 6 diagrams in section
