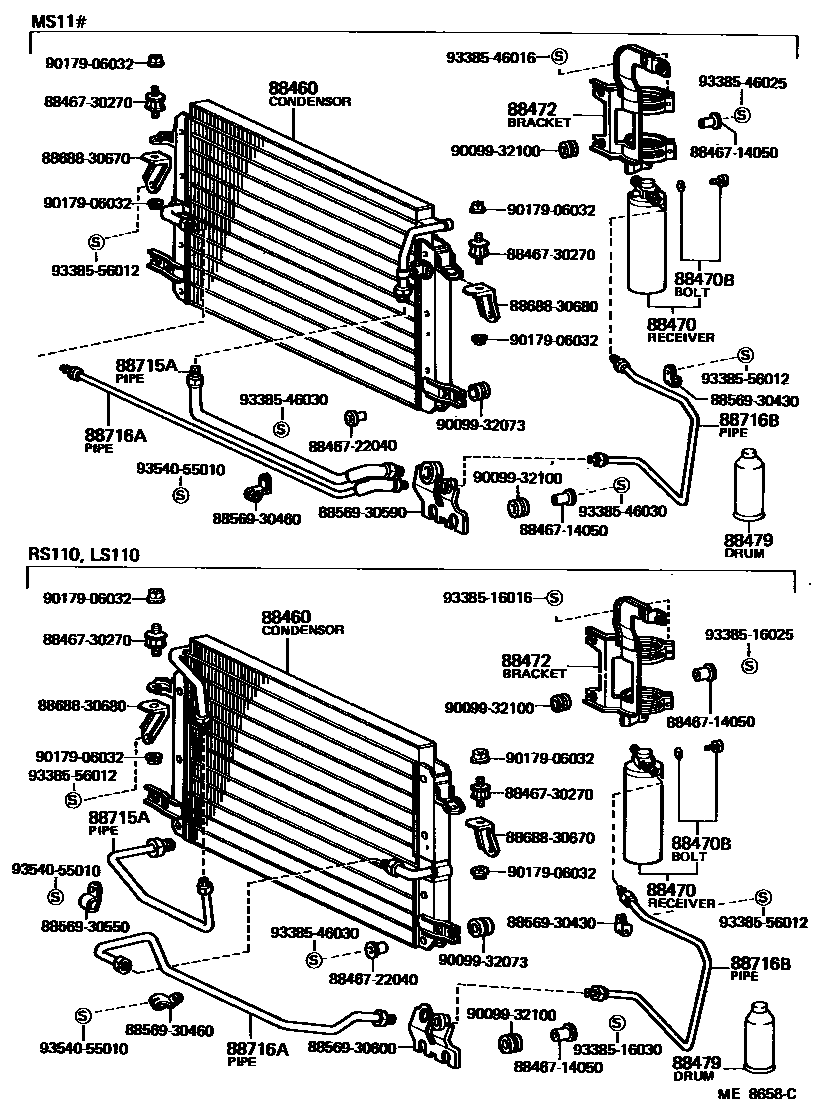

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

88460CONDENSER ASSY, COOLER

main88460-30430iMS11#..ROY197909-198307

main88460-30440iLS110,RS110197909-198307

main88460-30450iMS11#..BTP,DLX,SAL197909-198307

sub88460-30430

88470RECEIVER & DRYER ASSY, COOLER

main88470-14010iLS110,RS110197909-198307

sub04884-33110

main88470-30460iMS11#..ROY197909-198307

main88471-30280iMS11#..BTP,DLX,SAL197909-198307

sub88471-90K01

88470BBOLT, FUSE

main90099-04579iLS110,MS11#,RS110197909-198307

sub88475-12020

88472BRACKET, RECEIVER TANK, NO.1

main88472-30250iLS110,MS11#,RS110..BTP,DLX,SAL197909-198307

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02002iLS110,MS11#,RS110197909-198307

300G

sub90986-02004

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-30300iMS11#197909-198307

main88715-30310iLS110,RS110197909-198307

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88726-30290iMS11#197909-198307

main88726-30450iLS110,RS110197909-198307

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88726-30300iLS110,MS11#,RS110197909-198307

8846714050CUSHION, COOLER CONDENSER, NO.1

main88467-14050

8846722040CUSHION, COOLER CONDENSER, NO.1

main88467-22040

8846730270CUSHION, COOLER CONDENSER, NO.1

main88467-30270

8856930430CLAMP (FOR COOLER RELAY)

main88569-30430

8856930460CLAMP (FOR COOLER RELAY)

main88569-30460

8856930550CLAMP (FOR COOLER RELAY)

main88569-30550

8856930590CLAMP (FOR COOLER RELAY)

main88569-30590

8856930600CLAMP (FOR COOLER RELAY)

main88569-30600

8868830670BRACKET, COOLER DIAPHRAGM

main88688-30670

8868830680BRACKET, COOLER DIAPHRAGM

main88688-30680

9009932073

main90099-32073

9009932100

main90099-32100

9017906032

main90179-06032

9338516016

main93385-16016

9338516025

main93385-16025

9338516030

main93385-16030

9338546016

main93385-46016

9338546025

main93385-46025

9338546030

main93385-46030

9338556012

main93385-56012

9354055010

main93540-55010

29 parts on this diagram · 10 diagrams in section
