HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

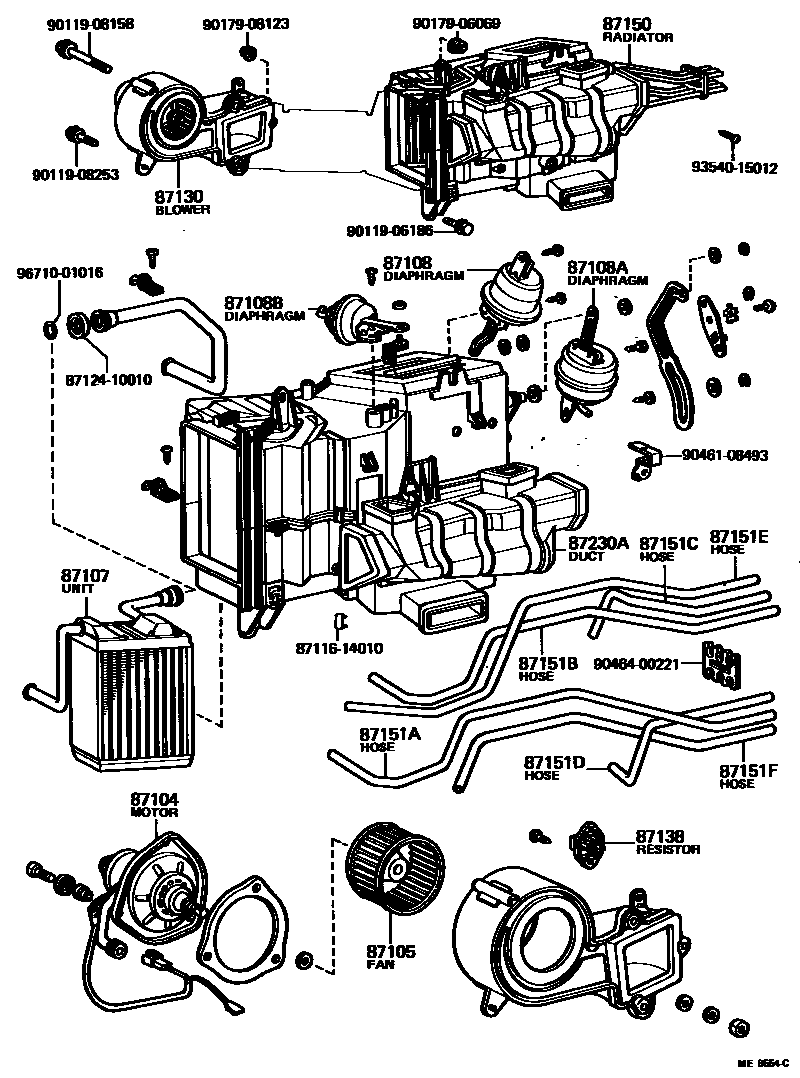

Parts diagram
87104MOTOR SUB-ASSY, HEATER BLOWER
main87104-30320i197909-198307
main87104-30350i197909-198307
87105FAN SUB-ASSY, HEATER BLOWER
main87134-30010i197909-198307
main87134-30020i197909-198307
87107UNIT SUB-ASSY, HEATER RADIATOR
main87107-30310i197909-198107
sub87107-30350
main87107-30320i197909-198307
main87107-30350i198107-198307
87108DIAPHRAGM SUB-ASSY, HEATER DOOR CONTROL
main87108-30310i197909-198307
87108ADIAPHRAGM SUB-ASSY, VENTILATOR DOOR CONTROL
main87108-30300i197909-198307
main87108-30330i197909-198307
87108BDIAPHRAGM SUB-ASSY, BI-LEVEL DOOR CONTROL
main87108-30320i197909-198307
main87108-30350i197909-198307
87130BLOWER ASSY, HEATER, FRONT
main87130-30310i197909-198307
main87130-30320i197909-198307
main87130-30330i197909-198307
main87130-30340i197909-198307
87138RESISTOR, HEATER BLOWER
main87138-30260i197909-198307
main87138-30270i197909-198307
87150RADIATOR ASSY, HEATER
main87150-30300i197909-198107
sub87150-30380
main87150-30310i197909-198108
main87150-30320i197909-198011
main87150-30321i198011-198307
main87150-30330i197909-198307
main87150-30350i198108-198307
main87150-30380i198107-198307
87151AHOSE, VACUUM, A
main90445-06006i197909-197912
NO.2,L=1000
sub90445-06042
main90445-06007i197909-198104
NO.2,L=1000
sub90445-06043
main90445-06043i198104-198307
NO.2,L=1000
sub90445-06058
87151BHOSE, VACUUM, B
main90445-06009i197909-198104
NO.3,L=1100
sub90445-06046
main90445-06010i197909-198104
NO.3,L=1500
sub90445-06051
main90445-06016i197909-198104
NO.9,L=1200
sub90445-06048
main90445-06046i198104-198307
NO.3,L=1100
main90445-06048i198104-198307
NO.9,L=1200
main90445-06051i198104-198307
NO.3,L=1500
sub95411-19990
87151CHOSE, VACUUM, C
main90445-06011i197909-198104
NO.5,L=275
sub90445-06033
main90445-06012i197909-198104
NO.5,L=930
sub90445-06041
main90445-06033i198104-198307
NO.5,L=275
sub90445-06065
main90445-06041i198104-198307
NO.5,L=930
sub90445-06044
87151DHOSE, VACUUM, D
main90445-06013i197909-198104
NO.6,L=350
sub90445-06034
main90445-06014i197909-198104
NO.6,L=1070
sub90445-06045
main90445-06034i198104-198110
NO.6,L=350
sub90445-06059
main90445-06045i198104-198307
NO.6,L=1070
sub90445-06047
main90445-06059i198110-198307
NO.6,L=310
87151EHOSE, VACUUM, E
main90445-06015i197909-198104
NO.7,L=1300
sub90445-06049
main90445-06049i198104-198307
NO.7,L=1300
87151FHOSE, VACUUM, F
main90445-06017i197909-198104
NO.10,L=530
sub90445-06037
main90445-06018i197909-198104
NO.10,L=730
sub90445-06039
main90445-06037i198104-198307
NO.10,L=530
sub90445-06039
main90445-06039i198104-198307
NO.10,L=730
87230ADUCT ASSY, HEATER AIR
main87201-30360i197909-198307
main87201-30370i197909-198307
8711614010SPRING, HEATER CASE FASTENING
main87116-14010
8712410010CLAMP, HEATER
main87124-10010
9011906186
main90119-06186
9011908158
main90119-08158
9011908253
main90119-08253
9017906069
main90179-06069
9017908123
main90179-08123
9046108493
main90461-08493
9046400221
main90464-00221
9354015012
main93540-15012
9671001016
main96710-01016

27 parts on this diagram · 5 diagrams in section
