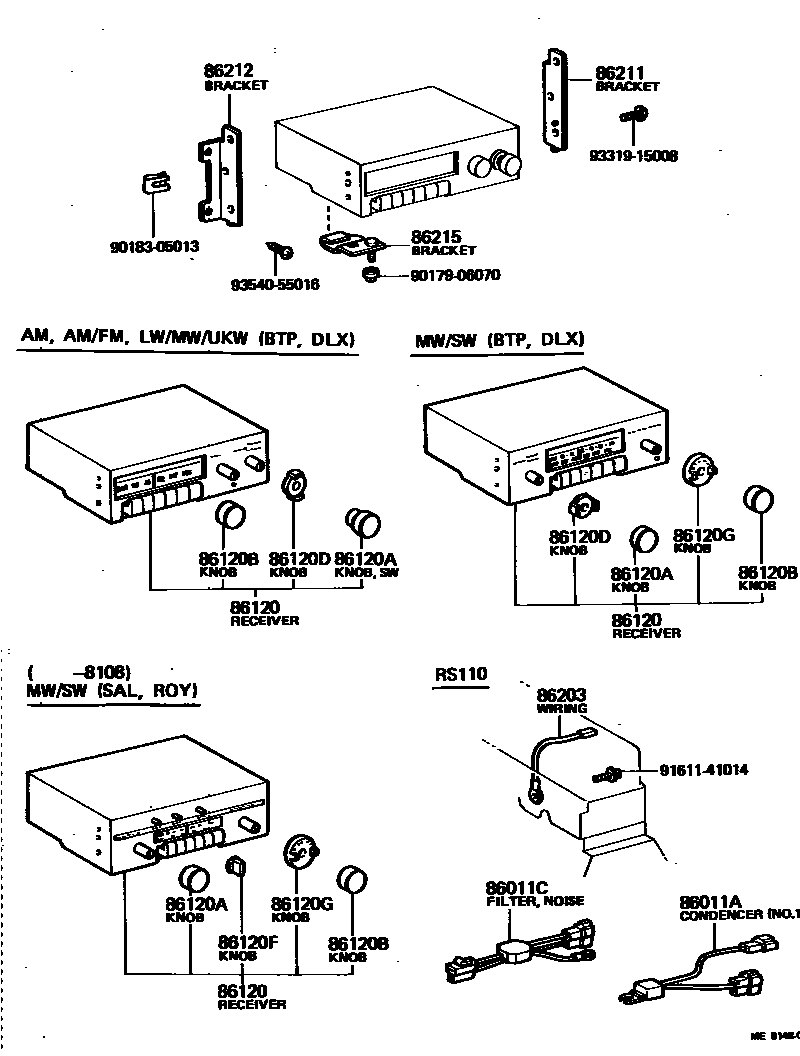

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1 0005 1

86011ACONDENSER, RADIO SETTING

main90980-04036iMS11#,RS110197909-198307

N0.1

86011CFILTER, NOISE

main90980-04035iMS11#..ROY197909-198307

W/RR COOLER

main90980-05056iMS11#..SED..(BTP,DLX,SAL)197909-198307

W/RR COOLER

86120RECEIVER ASSY, RADIO

main86120-30410iLS110,MS112,RS110..BTP..EUR197909-198307

AM

main86120-30460iLS110,MS112,RS110..(BTP,DLX)..GEN197909-198307

AM/FM

main86120-30480iMS112..LHD..SAL..EFI;MS11#,RS110..(ROY,SAL)..(ARL,GEN)197909-198108

AM/FM,AUTO SEARCH

sub86120-30481

main86120-30481iMS112..4FC..(ARL,GEN)..EFI;MS112,RS110..(ROY,SAL)..CBR198108-198307

AM/FM,AUTO SEARCH

main86120-30490iLS110,MS11#,RS110..(BTP,DLX)..GEN197909-198307

MW/SW

main86120-30500iLS110,MS112,RS110..(BTP,DLX)..EUR197909-198209

LW/MW/UKW

sub86120-30501

main86120-30501iLS110,MS112..(BTP,DLX)..EUR198209-198307

LW/MW/UKW,W/ARI

main86120-30510iMS112..SAL..EUR197909-198108

LW/MW/UKW,AUTO SEARCH

main86120-30530iMS11#,RS110..ROY,SAL197909-198108

MW/SW

main86120-30531iMS112..(ROY,SAL)..CBR198108-198303

MW/SW

sub86120-30532

main86120-30532iMS112..(ROY,SAL)..CBR198303-198307

MW/SW

main86120-30570iMS112..(ARL,GEN)..EFI198108-198307

AM/FM,ELECTRONIC SEARCH

main86120-30580iMS112..SAL..EUR198108-198307

LW/MW/UKW,ELECTRONIC SEARCH

86120AKNOB, RADIO RECEIVER SWITCH

main86128-30080iLS110,MS11#,RS110..(BTP,DLX)..GEN197909-198307

main86128-30080iLS110,MS112,RS110..(BTP,DLX)..EUR197909-198108

AM & AM/FM

main86128-30100iMS11#,RS110..ROY,SAL197909-198108

MW/SW

main86128-30140iLS110,MS112,RS110..(BTP,DLX)..EUR197909-198307

LW/MW/UKW

main86128-30200iMS112..LHD..SAL..EFI;MS11#,RS110..(ROY,SAL)..(ARL,GEN)197909-198108

AM/FM,AUTO SEARCH

main86128-30220iMS112..SAL..EUR197909-198108

LW/MW/UKW,AUTO SEARCH

main86128-30340iMS112..4FC..(ARL,GEN)..EFI;MS112,RS110..(ROY,SAL)..CBR198108-198307

AM/FM,AUTO SEARCH & MW/SW

main86128-30360iMS112..SAL..EUR198108-198307

LW/MW/UKW,ELECTRONIC SEARCH

86120BKNOB, RADIO RECEIVER TUNING, NO.1

main86128-30100iLS110,MS112,RS110..(BTP,DLX)..EUR197909-198108

MW/SW

main86128-30100iMS11#,RS110..ROY,SAL197909-198108

AM & AM/FM

main86128-30100iLS110,MS11#,RS110..(BTP,DLX)..GEN197909-198307

main86128-30120iLS110,MS112,RS110..(BTP,DLX)..EUR197909-198307

LM/MW/UKW

main86128-30200iMS112..LHD..SAL..EFI;MS11#,RS110..(ROY,SAL)..(ARL,GEN)197909-198108

AM/FM,AUTO SEARCH

main86128-30220iMS112..SAL..EUR197909-198108

LW/MW/UKW,AUTO SEARCH

main86128-30340iMS112..4FC..(ARL,GEN)..EFI;MS112,RS110..(ROY,SAL)..CBR198108-198307

AM/FM,ELECTRONIC SEARCH

main86128-30340iMS112..4FC..(ARL,GEN)..EFI;MS112,RS110..(ROY,SAL)..CBR198108-198307

AM/FM,AUTO SEARCH & MW/SW

main86128-30360iMS112..SAL..EUR198108-198307

LW/MW/UKW,ELECTRONIC SEARCH

86120DKNOB, RADIO RECEIVER TONE

main86128-30060iLS110,MS11#,RS110..BTP,DLX197909-198307

86120FKNOB, RADIO RECEIVER SUB VOLUME

main86128-30180iMS11#,RS110..ROY,SAL197909-198108

AM/FM,AUTO SEARCH & MW/SW

main86128-30240iMS112..SAL..EUR197909-198108

LW/MW/UKW,AUTO SEARCH

main86128-30320iMS112..4FC..(ARL,GEN)..EFI;MS112,RS110..(ROY,SAL)..CBR198108-198307

AM/FM,AUTO SEARCH & MW/SW

main86128-30380iMS112..SAL..EUR198108-198307

LW/MW/UKW,ELECTRONIC SEARCH

86120GKNOB, RADIO RECEIVER BAND

main86128-30160iMS11#,RS110..ROY,SAL197909-198307

MW/SW

main86128-30300iMS112..(ROY,SAL)..CBR198108-198307

MW/SW

86203WIRE, RADIO

main86203-30231iMS11#..(3HC,4H,4HC)..(ROY,SAL)197909-198307

L=2000

main86203-30251iMS11#,RS110..(3FC,4F,4FC,5F)..(ROY,SAL)197909-198307

L=1200

main86203-30261iMS11#..(3FC,4F,4FC,5F)..(ROY,SAL)197909-198008

L=700

sub86203-30290

main86203-30280iMS11#..(3HC,4H,4HC)..(ROY,SAL)197909-198307

L=950

sub86203-30290

main86203-30310iRS110197909-198307

L=400

86211BRACKET, RADIO, NO.1

main86211-30030iLS110,MS11#,RS110197909-198307

86212BRACKET, RADIO, NO.2

main86212-30030iLS110,MS11#,RS110197909-198307

86215BRACKET, RADIO, NO.5

main86215-30040iLS110,MS11#,RS110197909-198307

9017906070

main90179-06070

9018305013

main90183-05013

9161141014

main91611-41014

9331915008

main93319-15008

9354055016

main93540-55016

17 parts on this diagram · 5 diagrams in section
