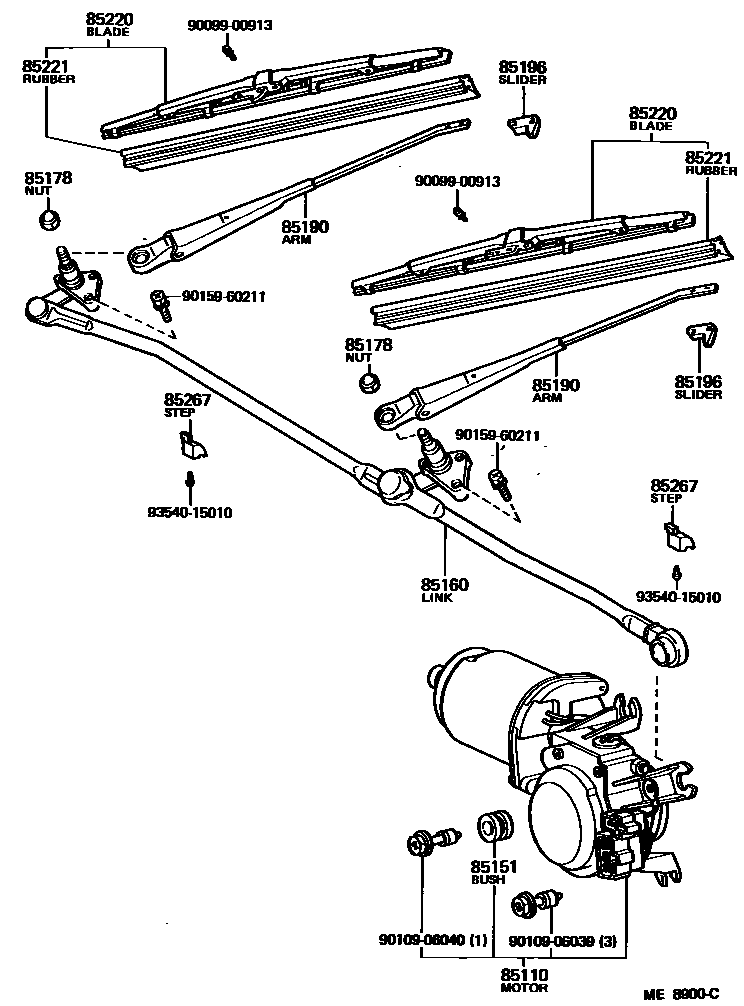

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-30130iLS110,MS11#,RS110..RHD..(BTP,DLX,SAL)197909-198008

sub85110-30131

main85110-30131iLS110,MS112,RS110..RHD..(BTP,DLX,SAL)198008-198108

sub85110-22191

main85110-30140iMS11#..RHD..ROY197909-198008

sub85110-30142

main85110-30142iMS112..ROY..GEN..EFI198008-198108

main85110-30150iLS110,MS11#,RS110..LHD197909-198008

sub85110-30151

main85110-30151iLS110,MS112,RS110..LHD198008-198108

main85110-30160iLS110,MS112,RS110..LHD..EUR197909-198008

COLD SPEC

sub85110-30161

main85110-30161iLS110,MS112..LHD..EUR198008-198108

COLD SPEC

main85110-30170iLS110,MS112,RS110..RHD..(BTP,DLX,SAL)198108-198307

main85110-30180iMS112..RHD..ROY..GEN198108-198307

main85110-30190iLS110,MS112,RS110..LHD198108-198307

sub85110-30200

main85110-30200iLS110,MS112..LHD..EUR198108-198307

COLD SPEC

85151BUSH, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER

main85151-22070iLS110,MS11#,RS110197909-198307

85160LINK ASSY, WINDSHIELD WIPER

main85160-30100iLS110,MS11#,RS110..RHD197909-198108

sub85160-30101

main85160-30101iLS110,MS112,RS110..RHD198108-198307

sub85160-30120

main85160-30110iLS110,MS11#,RS110..LHD197909-198108

sub85160-30111

main85160-30111iLS110,MS112,RS110..LHD198108-198307

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08017iLS110,MS11#,RS110197909-198108

sub90176-08029

main90176-08025iLS110,MS112,RS110198108-198110

sub90176-08029

main90176-08029iLS110,MS112,RS110198110-198307

85190ARM ASSY, WINDSHIELD WIPER

main85190-30180iLS110,MS11#,RS110..RHD..GEN197909-198002

DRIVER SIDE

sub85190-30181

main85190-30181iLS110,MS11#,RS110..RHD..GEN198002-198108

DRIVER SIDE

sub85190-30270

main85190-30190iLS110,MS11#,RS110..RHD..GEN197909-198108

ASSIST SIDE

sub85190-30280

main85190-30220iLS110,MS11#,RS110..LHD197909-198307

DRIVER SIDE

main85190-30230iLS110,MS11#,RS110..LHD197909-198307

ASSIST SIDE

main85190-30240iMS11#..RHD..(ARL,EUR)197909-198307

DRIVER SIDE

main85190-30260iMS11#..RHD..(ARL,EUR)197909-198307

ASSIST SIDE

main85190-30270iLS110,MS112,RS110..RHD..GEN198108-198307

DRIVER SIDE

main85190-30280iLS110,MS112,RS110..RHD..GEN198108-198307

ASSIST SIDE

85196SLIDER, WIPER ARM

main85196-30010iMS11#..RHD..ROY197909-198108

DRIVER SIDE

main85196-30020iMS11#..RHD..ROY197909-198108

ASSIST SIDE

main85196-30030iMS112..RHD..ROY..GEN198108-198301

DRIVER SIDE

main85196-30031iMS112..RHD..ROY..GEN198301-198307

DRIVER SIDE

main85196-30040iMS112..RHD..ROY..GEN198108-198301

ASSIST SIDE

main85196-30041iMS112..RHD..ROY..GEN198301-198307

ASSIST SIDE

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16180iLS110,MS112..RHD..GEN198301-198306

DRIVER SIDE

sub85220-16350

main85220-16190iLS110,MS112..RHD..(BTP,DLX,SAL)..GEN198301-198306

ASSIST SIDE

sub85220-16320

main85220-16220iMS112..RHD..ROY..GEN198301-198307

ASSIST SIDE

sub85220-16330

main85220-16320iLS110,MS112..RHD..(BTP,DLX,SAL)..GEN198306-198307

ASSIST SIDE

sub85220-16321

main85220-16350iLS110,MS112..RHD..GEN198306-198307

DRIVER SIDE

main85220-22160iMS112..RHD..(ARL,EUR)198008-198307

main85220-30171iLS110,MS11#,RS110..RHD..GEN197909-198108

ASSIST SIDE

sub85220-14280

main85220-30181iLS110,MS11#,RS110..RHD..GEN197909-198108

DRIVER SIDE

main85220-30190iLS110,MS11#,RS110..LHD197909-198307

main85220-30200iMS11#..RHD..(ARL,EUR)197909-198008

main85220-30220iLS110,MS112,RS110..RHD..GEN198108-198207

DRIVER SIDE

sub85220-30240

main85220-30230iLS110,MS112,RS110..RHD..GEN198108-198301

ASSIST SIDE

sub85220-16321

main85220-30240iLS110,MS112..RHD..GEN198207-198301

DRIVER SIDE

sub85220-16350

85221BLADE, WINDSHIELD WIPER

main85221-12190iLS110,MS112..RHD..GEN198207-198301

sub85223-12690

main85221-14170iLS110,MS11#,RS110..RHD..GEN197909-198108

sub85221-14H90

main85221-14180iLS110,MS11#,RS110..LHD197909-198009

main85221-20120iLS110,MS112,RS110..LHD198009-198307

sub85221-14180

main85221-30080iLS110,MS112,RS110..RHD..GEN198108-198207

sub85223-12690

main85221-30100iLS110,MS112..RHD..GEN198301-198306

sub85221-40040

main85221-30120iLS110,MS112..RHD..GEN198306-198307

sub85221-40040

85267STEP, LINEAR WIPER

main85267-30010iMS11#..RHD..ROY197909-198307

9009900913

main90099-00913

9010906039

main90109-06039

9010906040

main90109-06040

9015960211

main90159-60211

9354015010

main93540-15010

14 parts on this diagram · 1 diagram in section
