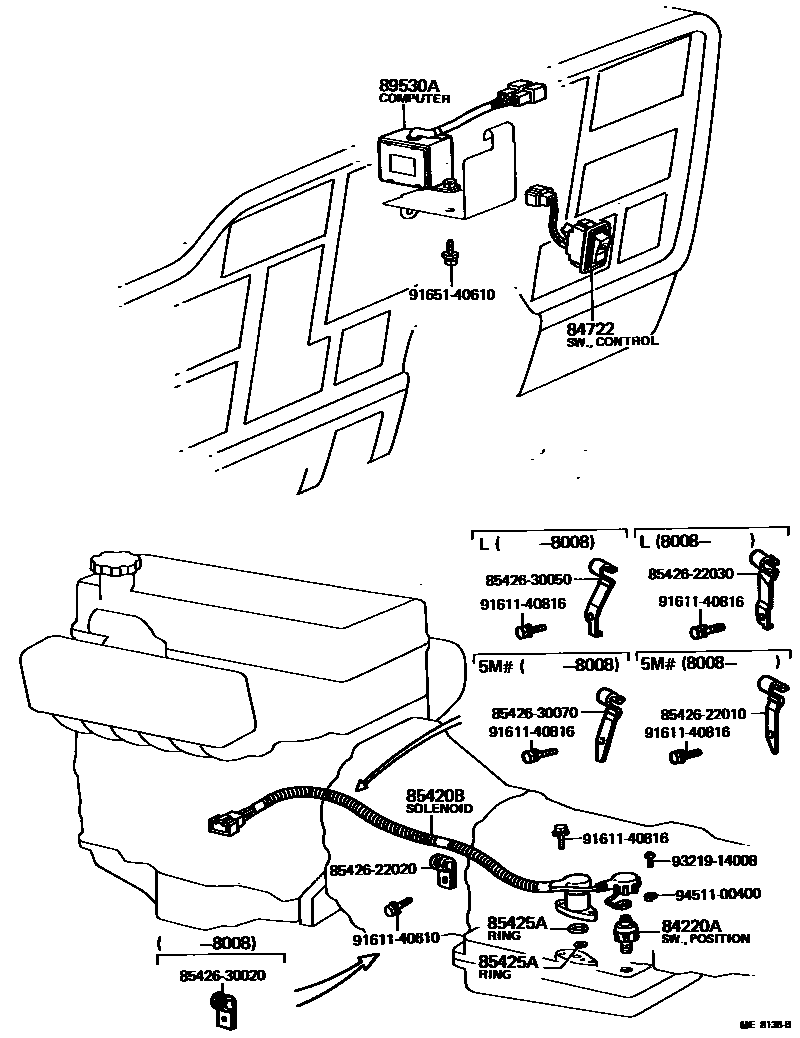

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

84220ASWITCH ASSY, TRANSMISSION POSITION INDICATOR

main84220-30050iLS110,MS112..4FC..(ARL,EUR)197909-198307

84722SWITCH, TRANSMISSION CONTROL

main84722-30050iLS110,MS112..ATM197909-198307

85420BSOLENOID ASSY, TRANSMISSION

main85420-14040iMS112..4FC..(ARL,EUR)198008-198108

main85420-22040iLS110,MS112..4FC..(ARL,EUR)198108-198307

main85420-22060iLS110..4FC198108-198307

main85420-30022iMS112..4FC..EUR197909-198008

main85420-30030iMS112..GEN197909-198008

sub85420-30040

main85420-30040iLS110..4FC198008-198108

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-11001iLS110,MS112..ATM197909-198307

OD=11

main90301-23001iLS110,MS112..ATM197909-198307

OD=23.5

89530ACOMPUTER ASSY, TRANSMISSION CONTROL

main89530-30040iMS112..4FC..(ARL,EUR)197909-198307

main89530-30070iLS110..4FC..EUR198208-198307

8542622010CLAMP, OVER DRIVE SOLENOID

main85426-22010

8542622020CLAMP, OVER DRIVE SOLENOID

main85426-22020

8542622030CLAMP, OVER DRIVE SOLENOID

main85426-22030

8542630020CLAMP, OVER DRIVE SOLENOID

main85426-30020

8542630050CLAMP, OVER DRIVE SOLENOID

main85426-30050

8542630070CLAMP, OVER DRIVE SOLENOID

main85426-30070

9161140610

main91611-40610

9161140816

main91611-40816

9165140610

main91651-40610

9321914008

main93219-14008

9451100400

main94511-00400

16 parts on this diagram · 1 diagram in section
