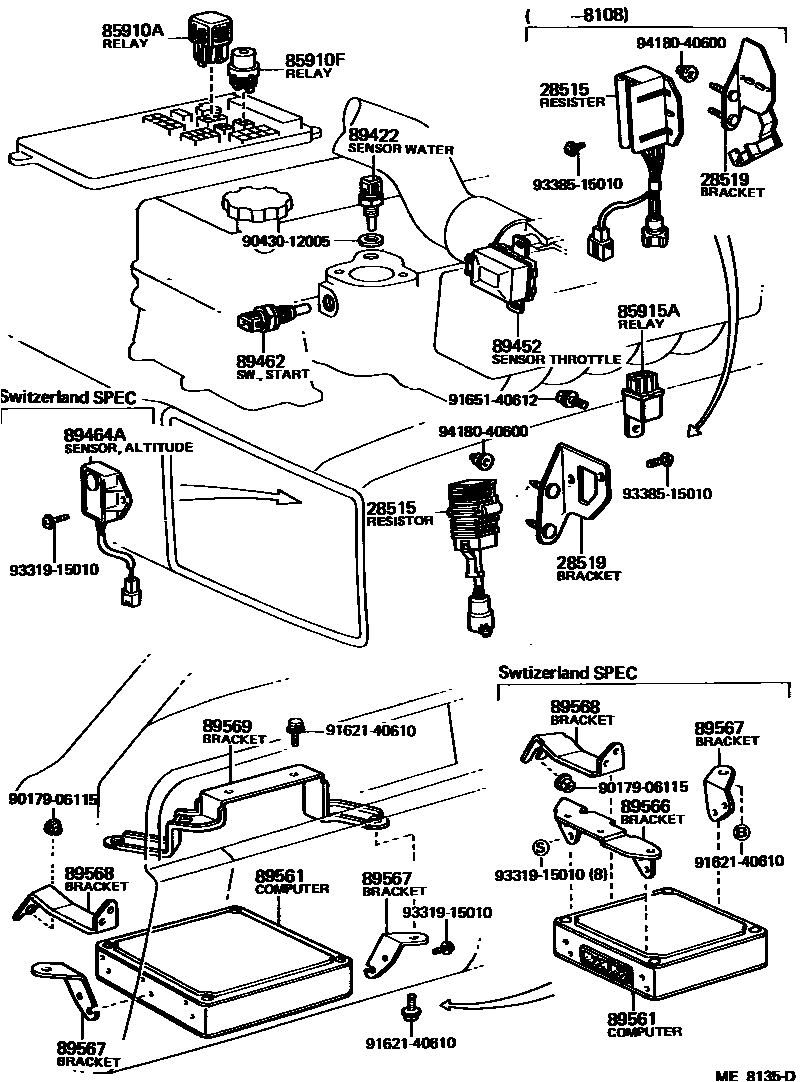

ELECTRONIC FUEL INJECTION SYSTEM
28519BRACKET, SOLENOID RESISTOR
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85915ARELAY, MAIN
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
sub89422-12010
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
SWITZERLAND SPEC
89462SWITCH, START INJECTOR TIME
89464ASENSOR, ALTITUDE COMPENSATION
SWITZERLAND SPEC
89561COMPUTER, FUEL INJECTION
SWITZERLAND SPEC
89566BRACKET, FUEL INJECTION COMPUTER
SWITZERLAND SPEC
89568BRACKET, FUEL INJECTION COMPUTER
89569BRACKET, FUEL INJECTION COMPUTER
9017906115
main90179-06115
9043012005
main90430-12005
9162140610
main91621-40610
9165140612
main91651-40612
9331915010
main93319-15010
9338515010
main93385-15010
9418040600
main94180-40600
21 parts on this diagram · 1 diagram in section
