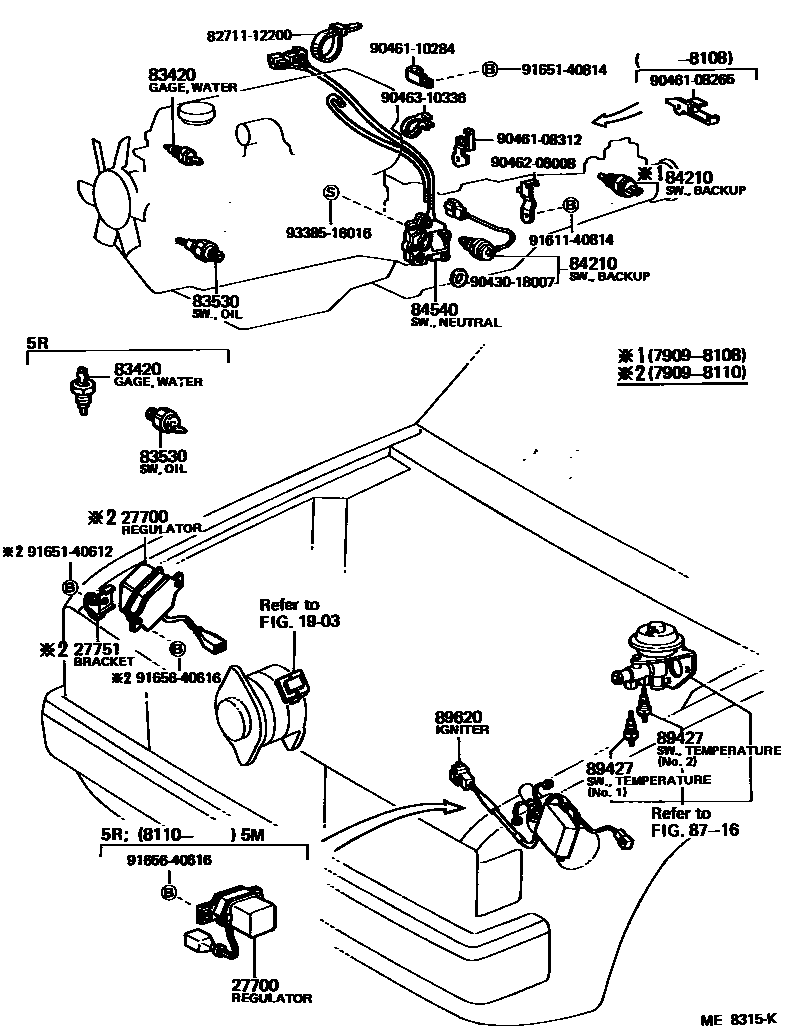

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

1903

27700REGULATOR ASSY, GENERATOR

main27700-44010iL,4M,5M,5R..LS110,MS11#,RS110..BTP,DLX,SAL197909-198307

main27700-54020iL..LS110..EUR197909-198108

IC REGULATOR

27751BRACKET, GENERATOR REGULATOR

main27751-45010i4M,5M..MS11#..BTP,DLX,SAL197909-198110

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iLS110,MS11#,RS110197909-198307

DENSO

sub83420-20020

main83420-20020iLS110,MS11#,RS110197909-198307

YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14010iRS110198004-198307

sub83530-14030

main83530-30030iRS110197909-198004

sub83530-14010

main83530-30042iMS11#197909-198206

sub83530-30050

main83530-30050iMS112198206-198307

sub83530-30051

main83530-36011iLS110197909-198307

sub83530-30060

84210SWITCH ASSY, BACK-UP LAMP

main84210-14010iMS112..5F..EFI197909-198108

main84210-60010iMS112..MTM..CBR198008-198307

84540SWITCH ASSY, NEUTRAL START

main84540-30190iLS110..4FC197909-198108

sub84540-14080

main84540-30200iMS111..LHD..3HC197909-198108

sub84540-14080

main84540-30210iLS110,MS112..ATM198108-198307

TOKAIRIKA

sub84540-24010

8716

89427SWITCH, TEMPERATURE DETECT

main83430-30010iMS11#..ROY197909-198307

NO.1(MARK=30)

main83430-30020iMS11#..ROY197909-198307

NO.2(MARK=50)

89620IGNITER ASSY

main89620-30080iMS112..EFI197909-198307

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9043018007

main90430-18007

9046108265

main90461-08265

9046108312

main90461-08312

9046110284

main90461-10284

9046208008

main90462-08008

9046310336

main90463-10336

9161140814

main91611-40814

9165140612

main91651-40612

9165140814

main91651-40814

9165640616

main91656-40616

9338516016

main93385-16016

22 parts on this diagram · 8 diagrams in section
