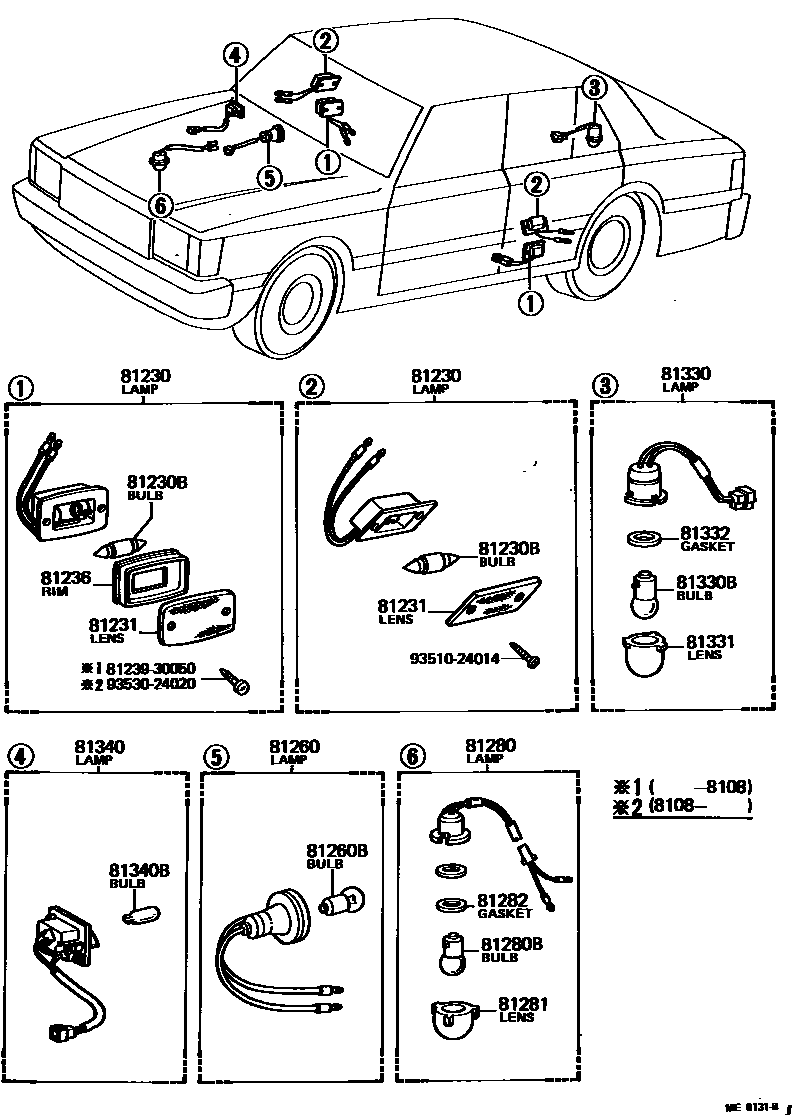

INTERIOR LAMP

0001 1 0002 1

81230LAMP ASSY, COURTESY

main81230-30060iMS112..LHD..4HC..DLX;LS110,MS11#,RS110..(3FC,3HC,4F,4FC,4H,5F)..(BTP,DLX)197909-198108

DOOR TORIM

main81230-30061iLS110,MS112,RS110..BTP,DLX198108-198307

DOOR TORIM

main81230-30100iMS11#,RS110..ROY,SAL;MS112..RHD..4HC..DLX197909-198108

ARM REST

main81230-30101iMS112,RS110..ROY,SAL198108-198307

ARM REST

81230BBULB(FOR COURTESY LAMP)

main99132-13050iLS110,MS11#,RS110197909-198307

12V 5W,12V 5W

81231LENS, COURTESY LAMP

main81231-30020iMS112..LHD..4HC..DLX;LS110,MS11#,RS110..(3FC,3HC,4F,4FC,4H,5F)..(BTP,DLX)197909-198307

DOOR TORIM

main81231-30100iMS11#,RS110..ROY,SAL;MS112..RHD..4HC..DLX197909-198307

ARM REST

81236RIM, COURTESY LAMP

main81236-30010iMS112..LHD..4HC..DLX;LS110,MS11#,RS110..(3FC,3HC,4F,4FC,4H,5F)..(BTP,DLX)197909-198307

DOOR TORIM

81260LAMP ASSY, GLOVE BOX

main81260-22030iLS110,MS11#,RS110..DLX,ROY,SAL197909-198307

81260BBULB(FOR GLOVE BOX)

main90981-11018iLS110,MS11#,RS110..DLX,ROY,SAL197909-198307

12V 1.2W W/O SOCKET,12V 1.2W

81280LAMP ASSY, ENGINE ROOM

main81280-30031iLS110,MS11#,RS110..DLX,ROY,SAL197909-198307

81280BBULB, ENGINE ROOM LAMP

main99132-13060iLS110,MS11#,RS110..DLX,ROY,SAL197909-198307

12V 6W,12V 6W

81281LENS, ENGINE ROOM LAMP

main81281-30010iLS110,MS11#,RS110..DLX,ROY,SAL197909-198307

81282PACKING, ENGINE ROOM LAMP LENS

main81282-30010iLS110,MS11#,RS110..DLX,ROY,SAL197909-198307

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-30070iLS110,MS11#,RS110..SED197909-198307

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-13060iLS110,MS11#,RS110..SED197909-198307

12V 6W,12V 6W

81331LENS, LUGGAGE COMPARTMENT LAMP

main81281-30010iLS110,MS11#,RS110..SED197909-198307

81332PACKING, LUGGAGE COMPARTMENT LAMP LENS

main81282-30010iLS110,MS11#,RS110..SED197909-198307

81340LAMP ASSY, VANITY

main81340-30020iMS11#,RS110..ROY,SAL;MS112..RHD..4HC..DLX197909-198307

81340BBULB (FOR VANITY LAMP)

main99132-12050iMS11#,RS110..ROY,SAL;MS112..RHD..4HC..DLX197909-198307

12V 5W,12V 5W

8123930050

main81239-30050

9351024014

main93510-24014

9353024020

main93530-24020

19 parts on this diagram · 2 diagrams in section
