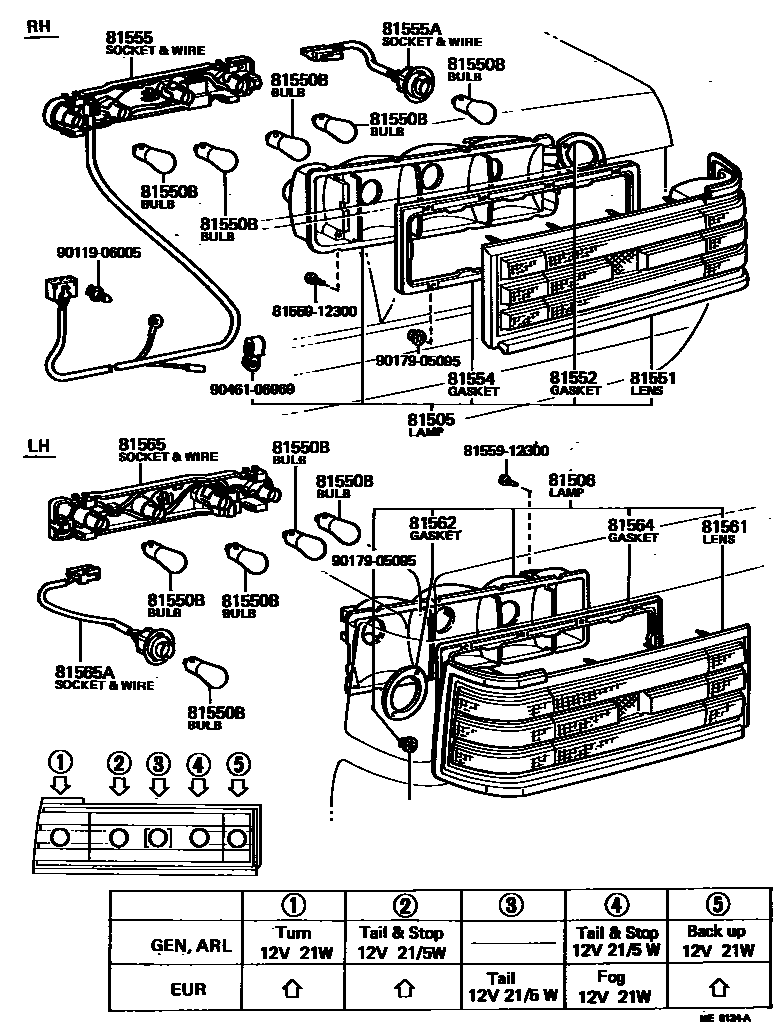

REAR COMBINATION LAMP

0001 1 0002 1

81505LAMP SUB-ASSY, REAR COMBINATION, RH

main81505-39095iLS110,MS11#,RS110..SED..(ARL,GEN)197909-198108

main81505-39105iLS110,MS112,RS110..SED..EUR197909-198307

main81505-39125iLS110,MS112,RS110..SED..(ARL,GEN)198108-198307

81506LAMP SUB-ASSY, REAR COMBINATION, LH

main81506-39075iLS110,MS11#,RS110..SED..(ARL,GEN)197909-198108

main81506-39085iLS110,MS112,RS110..SED..EUR197909-198307

main81506-39105iLS110,MS112,RS110..SED..(ARL,GEN)198108-198307

81550LAMP ASSY, REAR COMBINATION, RH

main81550-39565iLS110,MS11#..WG197909-198307

sub81550-39575

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iLS110,MS11#,RS110197909-198307

12V 21W,12V 21W

main99132-21210iLS110,MS11#,RS110197909-198307

12V 21/5W,12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-30450iLS110,MS112,RS110..SED..(ARL,GEN)198108-198307

main81551-30490iLS110,MS11#,RS110..SED197909-198307

main81551-91701iLS110,MS11#..WG197909-198307

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-30450iLS110,MS11#,RS110..SED197909-198307

main81552-91701iLS110,MS11#..WG197909-198307

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-30450iLS110,MS11#,RS110..SED197909-198307

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-30470iLS110,MS11#,RS110..SED..(ARL,GEN)197909-198108

main81555-30480iLS110,MS112,RS110..SED..(ARL,GEN)198108-198307

main81555-30490iLS110,MS112,RS110..SED..EUR197909-198108

main81555-30491iLS110,MS112..SED..EUR198108-198307

main81555-91702iLS110,MS11#..WG197909-198307

81555ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81558-30450iLS110,MS11#,RS110..SED197909-198307

81561LENS, REAR COMBINATION LAMP, LH

main81561-30430iLS110,MS112,RS110..SED..(ARL,GEN)198108-198307

main81561-30440iLS110,MS11#,RS110..SED197909-198307

main81561-91701iLS110,MS11#..WG197909-198307

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-30450iLS110,MS11#,RS110..SED197909-198307

main81562-91701iLS110,MS11#..WG197909-198307

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-30450iLS110,MS11#,RS110..SED197909-198307

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-91702iLS110,MS11#..WG197909-198307

main81565-30420iLS110,MS11#,RS110..SED..(ARL,GEN)197909-198108

main81565-30440iLS110,MS112,RS110..SED..EUR197909-198307

main81565-30470iLS110,MS112,RS110..SED..(ARL,GEN)198108-198307

81565ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81558-30450iLS110,MS11#,RS110..SED197909-198307

8155912300MOULDING, REAR COMBINATION LAMP, RH

main81559-12300

9011906005

main90119-06005

9017905095

main90179-05095

9046106969

main90461-06969

18 parts on this diagram · 2 diagrams in section
