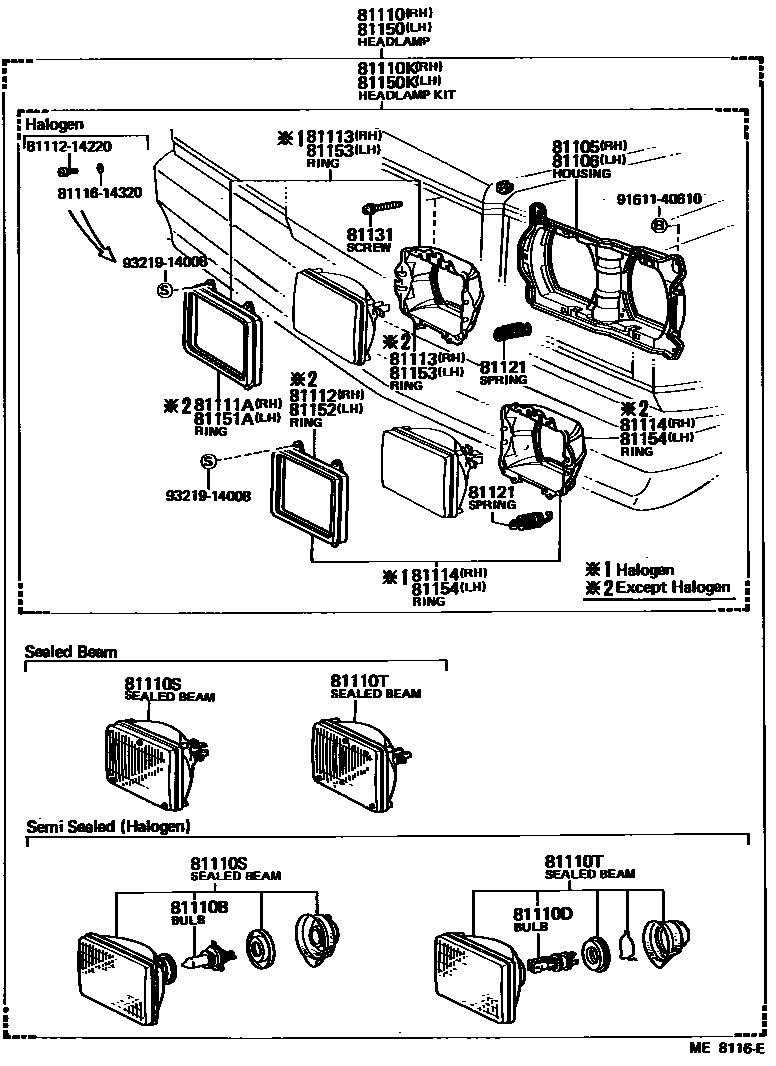

HEADLAMP

0001 1 0002 1 0003 1

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-30430iLS110,MS11#,RS110197909-198108

main81135-30431iLS110,MS112,RS110..RHD..GEN198108-198307

main81135-30461iMS112..RHD..(ARL,EUR)198108-198307

main81135-30471iLS110,MS112..(BTP,DLX)..EUR198108-198307

W/CLEARANCE LAMP

main81135-30491iLS110,MS112..LHD..EUR198108-198307

main81135-30530iLS110,MS112,RS110..LHD..GEN198108-198307

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-30540iLS110,MS11#,RS110197909-198108

main81175-30541iLS110,MS112,RS110..RHD..GEN198108-198307

main81175-30571iMS112..RHD..(ARL,EUR)198108-198307

main81175-30581iLS110,MS112..(BTP,DLX)..EUR198108-198307

W/CLEARANCE LAMP

main81175-30601iLS110,MS112..LHD..EUR198108-198307

main81175-30640iLS110,MS112,RS110..LHD..GEN198108-198307

81110HEADLAMP ASSY, RH

main81110-39535iLS110,MS11#,RS110..RHD..GEN197909-198008

main81110-39536iMS112..RHD..(ROY,SAL)..GEN198108-198307

WHITE,W/YELLOW FOG LAMP

main81110-39545iLS110,MS112,RS110..LHD..(BTP,DLX)..GEN198008-198108

main81110-39546iLS110,MS112,RS110..RHD..(BTP,DLX)198108-198307

main81110-39555iMS11#..RHD..(ARL,EUR)197909-198008

HALOGEN,WHITE,KOITO

main81110-39565iLS110,MS112,RS110..LHD198008-198108

HALOGEN,WHITE,KOITO

main81110-39566iMS112..RHD..(ARL,EUR)198108-198307

main81110-39575iLS110,MS11#,RS110..LHD..(BTP,DLX,SAL)197909-198008

HALOGEN,YELLOW,KOITO

main81110-39576iLS110,MS112..(BTP,DLX)..EUR198108-198307

W/CLEARANCE LAMP

main81110-39596iLS110,MS112..LHD..EUR198108-198307

main81110-39655iLS110,MS112,RS110..LHD..(BTP,DLX)..GEN198108-198307

main81110-39675iMS112,RS110..LHD..(ROY,SAL)..CBR198108-198307

WHITE,W/YELLOW FOG LAMP

main81110-39685iMS112..LHD..(ROY,SAL)..CBR198108-198307

YELLOW,W/YELLOW FOG LAMP

main81110-39705iMS112..RHD..5F198108-198307

WHITE,W/WHITE FOG LAMP

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2iLS110,MS112,RS110198108-198307

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN

sub90981-13058

main90981-13016×2iMS112..LHD..(ROY,SAL)..CBR198108-198307

12V 60/55W,*HAL *YE,12V 60/55W,HALOGEN,YELLOW

sub90981-13H01

main90981-13017×2iLS110..RHD..4F..DLX198010-198108

12V 55W,*HAL *WH,12V 55W,HALOGEN KOITO

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13015×2iLS110,MS112,RS110..LHD198008-198108

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN,WHITE,KOITO

sub90981-13058

main90981-13016×2iLS110,MS112..LHD;RS110..LHD..(BTP,DLX)198008-198108

12V 60/55W,*HAL *YE,12V 60/55W,HALOGEN,WHITE,KOITO

sub90981-13H01

81110KHEADLAMP KIT, W/O SEALED BEAM, RH

main04817-30010iMS112..RHD..(ROY,SAL)..GEN198108-198307

W/YELLOW FOG LAMP

main04817-30020iLS110,MS112,RS110..RHD..(BTP,DLX)198108-198307

main04817-30030iMS112..RHD..(ARL,EUR)198108-198307

main04817-30040iLS110,MS112..(BTP,DLX)..EUR198108-198307

W/CLEARANCE LAMP

main04817-30050iLS110,MS112..LHD..EUR198108-198307

main04817-30060iLS110,MS112,RS110..LHD..(BTP,DLX)..GEN198108-198307

main04817-30070iMS112,RS110..LHD..(ROY,SAL)..CBR198108-198307

W/YELLOW FOG LAMP

main04817-30080iMS112..RHD..5F198108-198307

W/WHITE FOG LAMP

main81110-39615iLS110..RHD..4F..DLX;LS110,MS11#,RS110..LHD197909-198108

W/HALOGEN HEADLAMP

81110SSEALED BEAM UNIT, NO.1

main90981-05002×2iLS110,MS11#,RS110..GEN197909-198008

12V 50W,*WB,12V 50W

main90981-05012×2iLS110,MS112,RS110..LHD198008-198108

12V 55W,*HWS,12V 55W,HALOGEN,WHITE,KOITO

main90981-05015×2iLS110,MS112..LHD;RS110..LHD..(BTP,DLX)198008-198108

12V 55W,HALOGEN,YELLOW,KOITO

main90981-05034×2iLS110,MS112,RS110..LHD..(BTP,DLX)..GEN198107-198108

12V 50W,*WB,12V 50W

sub90981-05028

81110TSEALED BEAM UNIT, NO.2

main90981-05004×2iLS110,MS11#,RS110..RHD..GEN197909-198008

12V 40/60W,*WB,12V 40/60W

sub90981-05041

main90981-05006×2iLS110,MS112,RS110..LHD..(BTP,DLX)..GEN198008-198107

12V 40/60W

main90981-05013×2iLS110,MS11#,RS110..LHD..(BTP,DLX,SAL)197909-198008

12V 60/55W,12V 60/55W,HALOGEN,WHITE,KOITO

main90981-05014×2iMS11#..RHD..(ARL,EUR)197909-198008

12V 60/55W,*WSB,12V 60/55W,HALOGEN,WHITE,KOITO

main90981-05016×2iLS110,MS11#,RS110..LHD..(BTP,DLX,SAL)197909-198008

12V 60/55WHALOGEN,YELLOW,KOITO

main90981-05035×2iLS110,MS112,RS110..LHD..(BTP,DLX)..GEN198107-198108

12V 40/60W,*WB,12V 40/60W

81111ARING, SEALED BEAM RETAINING, NO.1 RH

main81111-20360iLS110,MS11#,RS110..GEN197909-198008

81112RING, SEALED BEAM RETAINING, NO.2 RH

main81111-20360iLS110,MS11#,RS110..GEN197909-198008

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-30430iLS110,MS11#,RS110..GEN197909-198008

sub81113-22391

main81113-30460iLS110,MS112,RS110..LHD198008-198108

HALOGEN

81114RING, SEALED BEAM MOUNTING, NO.2 RH

main81114-30430iLS110,MS11#,RS110..GEN197909-198008

sub81114-22391

main81114-30460iLS110..RHD..4F..DLX198010-198108

HALOGEN

81121SPRING, HEADLAMP TENSION

main81121-14320×4iLS110,MS11#,RS110197909-198108

81131SCREW, HEADLAMP ADJUSTING

main81131-20360×8iLS110,MS11#,RS110197909-198108

sub81131-28050

81150HEADLAMP ASSY, LH

main81150-39535iLS110,MS112,RS110..RHD..(BTP,DLX)198008-198108

main81150-39536iMS112..RHD..(ROY,SAL)..GEN198108-198307

WHITE,W/YELLOW FOG LAMP

main81150-39545iLS110,MS112,RS110..LHD..(BTP,DLX)..GEN198008-198108

main81150-39546iLS110,MS112,RS110..RHD..(BTP,DLX)198108-198307

main81150-39555iMS11#..RHD..(ARL,EUR)197909-198008

HALOGEN,WHITE,KOITO

main81150-39565iLS110,MS112,RS110..LHD198008-198108

HALOGEN,WHITE,KOITO

main81150-39566iMS112..RHD..(ARL,EUR)198108-198307

main81150-39575iLS110,MS112..LHD;RS110..LHD..(BTP,DLX)198008-198108

HALOGEN,YELLOW,KOITO

main81150-39576iLS110,MS112..(BTP,DLX)..EUR198108-198307

W/CLEARANCE LAMP

main81150-39596iLS110,MS112..LHD..EUR198108-198307

main81150-39655iLS110,MS112,RS110..LHD..(BTP,DLX)..GEN198108-198307

main81150-39675iMS112,RS110..LHD..(ROY,SAL)..CBR198108-198307

WHITE,W/YELLOW FOG LAMP

main81150-39685iMS112..LHD..(ROY,SAL)..CBR198108-198307

YELLOW,W/YELLOW FOG LAMP

main81150-39705iMS112..RHD..5F198108-198307

WHITE,W/WHITE FOG LAMP

81150KHEADLAMP KIT, W/O SEALED BEAM, LH

main04818-30010iMS112..RHD..(ROY,SAL)..GEN198108-198307

W/YELLOW FOG LAMP

main04818-30020iLS110,MS112,RS110..RHD..(BTP,DLX)198108-198307

main04818-30030iMS112..RHD..(ARL,EUR)198108-198307

main04818-30040iLS110,MS112..(BTP,DLX)..EUR198108-198307

W/CLEARANCE LAMP

main04818-30050iLS110,MS112..LHD..EUR198108-198307

main04818-30060iLS110,MS112,RS110..LHD..(BTP,DLX)..GEN198108-198307

main04818-30070iMS112,RS110..LHD..(ROY,SAL)..CBR198108-198307

W/YELLOW FOG LAMP

main04818-30080iMS112..RHD..5F198108-198307

W/WHITE FOG LAMP

main81150-39615iLS110..RHD..4F..DLX;LS110,MS11#,RS110..LHD197909-198108

W/HALOGEN HEADLAMP

81151ARING, SEALED BEAM RETAINING, NO.1 LH

main81111-20360iLS110,MS11#,RS110..GEN197909-198008

81152RING, SEALED BEAM RETAINING, NO.2 LH

main81111-20360iLS110,MS11#,RS110..GEN197909-198008

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81153-30540iLS110,MS11#,RS110..GEN197909-198008

sub81153-22391

main81153-30570iLS110,MS112,RS110..LHD198008-198108

HALOGEN

81154RING, SEALED BEAM MOUNTING, NO.2 LH

main81154-30540iLS110,MS112,RS110..(BTP,DLX)..GEN198008-198108

sub81154-22391

main81154-30570iLS110,MS11#,RS110..LHD..(BTP,DLX,SAL)197909-198008

HALOGEN

8111214220RING, SEALED BEAM RETAINING, NO.2 RH

main81112-14220

8111614320COVER, SEALED BEAM UNIT

main81116-14320

9161140610

main91611-40610

9321914008

main93219-14008

24 parts on this diagram · 3 diagrams in section
