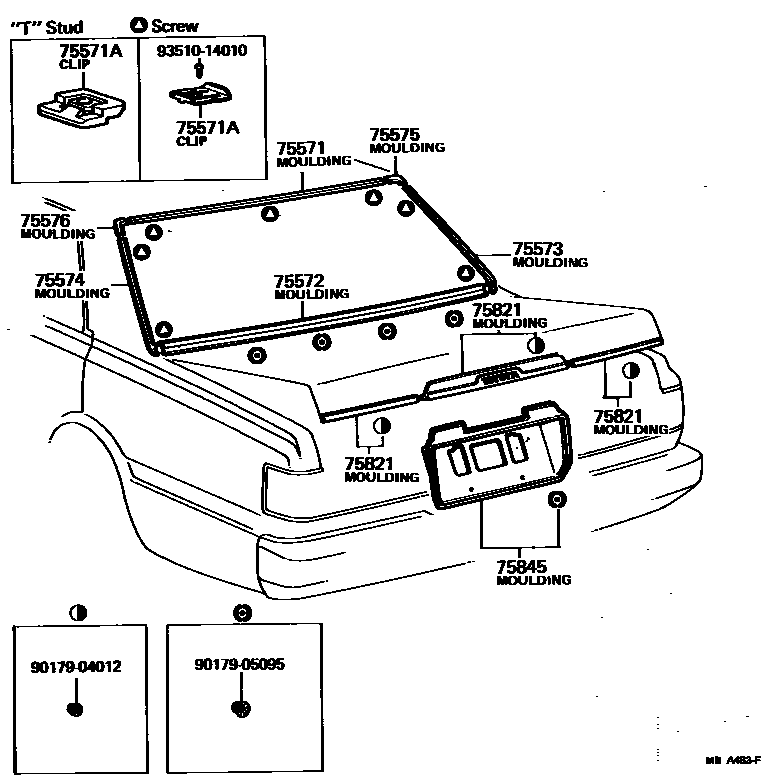

REAR MOULDING

0001 1 0002 1 0003 1

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-30150iLS110,MS11#,RS110..SED197909-198307

main75571-91703iLS110,MS11#..WG197909-198307

75571ACLIP(FOR BACK WINDOW MOULDING SET)

main75545-12031iLS110,MS112,RS110..SED¥240198106-198307

T STUD

main75545-30021iLS110,MS11#,RS110..SED¥190197909-198106

T STUD

main75545-30040iLS110,MS11#,RS110..SED¥240197909-198307

SCREW

75572MOULDING, BACK WINDOW, LOWER

main75507-30110iLS110,MS11#,RS110..SED197909-198307

main75575-91703iLS110,MS11#..WG197909-198307

75573MOULDING, BACK WINDOW SIDE, RH

main75573-30160iLS110,MS11#,RS110..SED197909-198307

main75573-91701iLS110,MS11#..WG197909-198307

75574MOULDING, BACK WINDOW SIDE, LH

main75574-30160iLS110,MS11#,RS110..SED197909-198307

main75574-91701iLS110,MS11#..WG197909-198307

75575MOULDING, BACK WINDOW CORNER, UPPER RH

main75576-91701iLS110,MS11#..WG197909-198307

main75581-30080iLS110,MS11#,RS110..SED197909-198307

75576MOULDING, BACK WINDOW CORNER, UPPER LH

main75576-91701iLS110,MS11#..WG197909-198307

main75582-30080iLS110,MS11#,RS110..SED197909-198307

75821MOULDING, LUGGAGE COMPARTMENT DOOR BACK

main75801-39035iLS110,MS11#,RS110..SED¥3,640197909-198108

RH

main75801-39055iLS110,MS112,RS110..SED¥6,000198108-198307

main75802-39015iLS110,MS11#,RS110..SED¥3,640197909-198108

LH

main75815-39015iLS110,MS11#,RS110..SED¥5,700197909-198108

CTR

75845MOULDING, BODY LOWER BACK PANEL, CENTER

main75082-39045iLS110..SED..BTP..EUR197909-198307

main75082-39045iLS110..5F..DLX198101-198307

BELGIUM SPEC

9017904012

main90179-04012¥180

9017905095

main90179-05095¥240

9351014010

main93510-14010¥90

12 parts on this diagram · 3 diagrams in section
