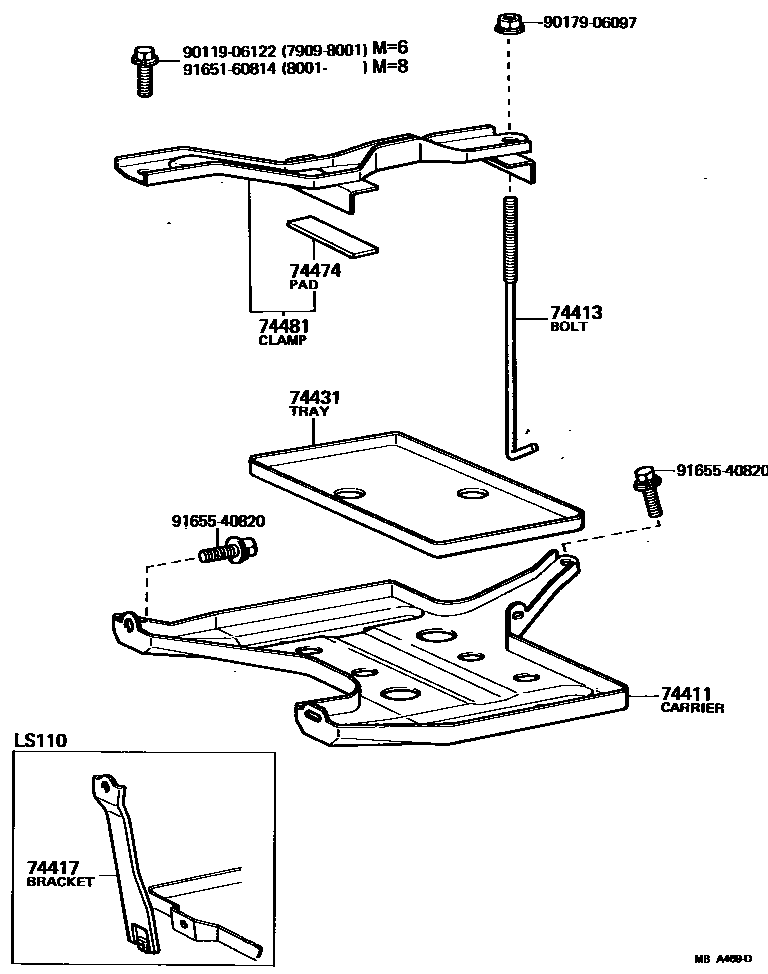

BATTERY CARRIER

74411CARRIER, BATTERY

main74411-30210iMS11#..GEN;RS110..RHD..DLX;RS110..(BTP,SAL)..GEN197909-198307

NS40ZAL,N40L,N60L-MF

main74411-30220iMS111,RS110197909-198108

N50ZL-MF,N70ZL-MF

main74411-30220iMS112,RS110..CBR198108-198307

N70ZL-MF,55D23L-MF

main74411-30240iLS110197909-198307

NX110-5L,NX120-7L,NX200-10L

74413BOLT, BATTERY CLAMP

main74451-30050iLS110,MS11#,RS110197909-198307

74417BRACKET, BATTERY CARRIER

main74417-30120iLS110197909-198307

74431TRAY, BATTERY

main74431-14010iRS110..(BTP,DLX)..GEN;MS11#..(BTP,DLX,SAL)..GEN..CBR197909-198105

NS40ZAL

sub74431-14050

main74431-14020iMS11#..GEN;RS110..(BTP,DLX)..GEN197909-198307

N40L,N60L

main74431-14030iMS111,RS110197909-198108

N50ZL-MF

sub74431-52040

main74431-14030iMS112,RS110..CBR198108-198307

55D23L-MF

sub74431-52040

main74431-14040iRS110..BTP,DLX;MS11#..GEN..CBR;MS112..SAL..EUR;MS112..(BTP,DLX,ROY)..(EUR,GEN)..EFI197909-198307

N70ZL-MF

main74431-14050iRS110..BTP,DLX;MS112..(BTP,DLX,SAL)..CBR198105-198307

NS40ZAL

main74431-30010iLS110..EUR197909-198307

NX200-10L

main74431-30040iLS110197909-198307

NX120-7L

sub74431-30010

main74431-30050iLS110..MTM197909-198307

NX110-5L

sub74431-30010

74474PAD, BATTERY

main74471-30080iLS110197909-198307

NX110-5L,NX120-7L

74481CLAMP, BATTERY HOLD DOWN

main74404-30130iMS11#,RS110..GEN197909-198002

NS40ZAL,N60L-MF

sub74404-30131

main74404-30131iMS11#..GEN;RS110..(BTP,DLX)..GEN198002-198307

NS40ZAL,N60L-MF

main74404-30140iMS112..EUR197909-198002

N50ZL-MF,N70ZL-MF

sub74404-30141

main74404-30141iMS111,RS110198002-198108

N50ZL-MF,N70ZL-MF

sub74404-30161

main74404-30141iMS112,RS110..CBR198108-198307

N70ZL-MF,55D23L-MF

sub74404-30161

main74404-30150iLS110..EUR197909-198002

NX200-10L

sub74404-30151

main74404-30151iLS110..4FC198002-198307

NX200-10L

main74404-30160iLS110197909-198002

NX110-5L,NX120-7L

sub74404-30161

main74404-30161iLS110198002-198307

NX110-5L,NX120-7L

main74404-30170iMS111,RS110..(BTP,DLX,SAL)..GEN197909-198002

N40L

sub74404-30171

main74404-30171iRS110..(BTP,DLX)..GEN;MS11#..(BTP,DLX,SAL)..GEN..CBR198002-198307

N40L

9011906122

main90119-06122

9017906097

main90179-06097

9165160814

main91651-60814

9165540820

main91655-40820

10 parts on this diagram · 1 diagram in section
