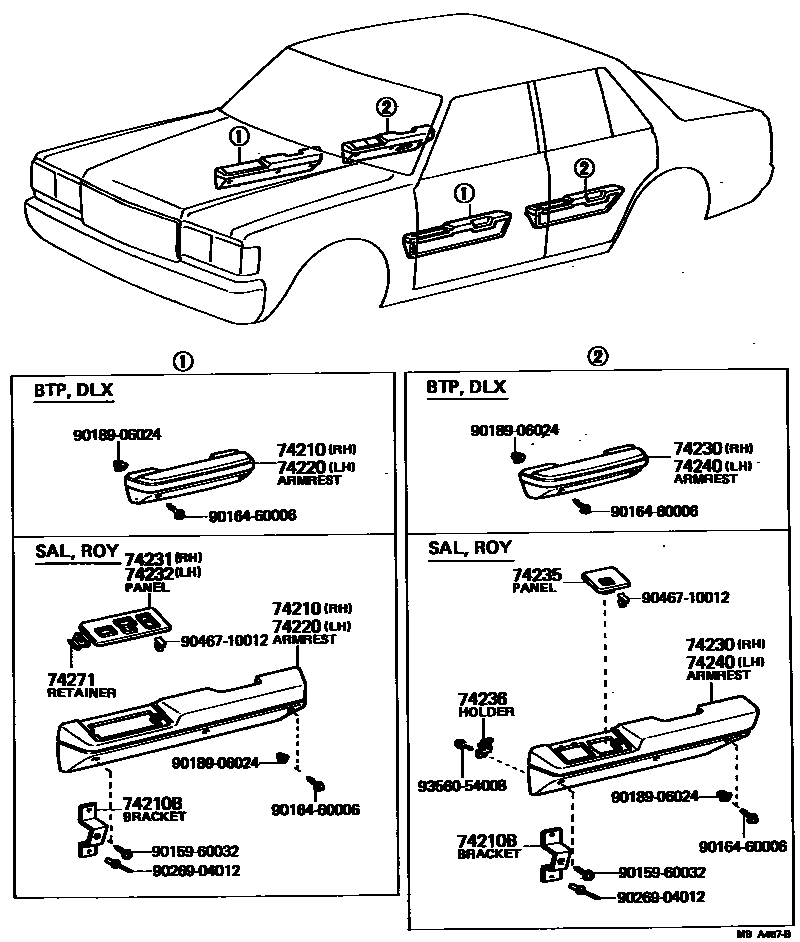

ARMREST & VISOR

0001 1 0002 1

74210ARMREST ASSY, FRONT, RH

main74210-30080-04iLS110,MS11#,RS110..BTP,DLX197909-198108

BLUE,BLUE,TRIM8#

main74210-30080-15iLS110,MS11#,RS110..BTP,DLX197909-198108

GREIGE,BEIGE,TRIM4#

main74210-30080-23iLS110,MS112,RS110..BTP,DLX198108-198307

GRAY,GRAY,TRIM1#

main74210-30080-25iLS110,MS112,RS110..BTP,DLX198108-198307

BEIGE,BEIGE,TRIM4#

main74210-30130-02iMS11#,RS110..ROY,SAL197909-198108

DARK WINE,RED/MAROON,TRIM3#

main74210-30130-04iMS11#,RS110..ROY,SAL197909-198108

BLUE,BLUE,TRIM8#

main74210-30130-05iMS11#,RS110..ROY,SAL197909-198108

GREIGE,BEIGE,TRIM4#

main74210-30140-03iMS112,RS110..ROY,SAL198108-198307

GRAY,GRAY,TRIM1#

main74210-30140-04iMS112,RS110..ROY,SAL198108-198307

BLUE,BLUE,TRIM8#

main74210-30140-15iMS112,RS110..ROY,SAL198108-198307

BEIGE,BEIGE,TRIM4#

74210BBRACKET, ARMREST SET

main67645-30010×4iMS11#,RS110..ROY,SAL197909-198307

74220ARMREST ASSY, FRONT, LH

main74210-30080-04iLS110,MS11#,RS110..BTP,DLX197909-198108

BLUE,BLUE,TRIM8#

main74210-30080-15iLS110,MS11#,RS110..BTP,DLX197909-198108

GREIGE,BEIGE,TRIM4#

main74210-30080-23iLS110,MS112,RS110..BTP,DLX198108-198307

GRAY,GRAY,TRIM1#

main74210-30080-25iLS110,MS112,RS110..BTP,DLX198108-198307

BEIGE,BEIGE,TRIM4#

main74220-30090-02iMS11#,RS110..ROY,SAL197909-198108

DARK WINE,RED/MAROON,TRIM3#

main74220-30090-04iMS11#,RS110..ROY,SAL197909-198108

BLUE,BLUE,TRIM8#

main74220-30090-05iMS11#,RS110..ROY,SAL197909-198108

GREIGE,BEIGE,TRIM4#

main74220-30100-03iMS112,RS110..ROY,SAL198108-198307

GRAY,GRAY,TRIM1#

main74220-30100-04iMS112,RS110..ROY,SAL198108-198307

BLUE,BLUE,TRIM8#

main74220-30100-15iMS112,RS110..ROY,SAL198108-198307

BEIGE,BEIGE,TRIM4#

74230ARMREST ASSY, REAR, RH

main74210-30080-03iLS110,MS112,RS110..BTP,DLX198108-198307

GRAY,GRAY,TRIM1#

main74210-30080-04iLS110,MS112,RS110..BTP,DLX198108-198307

BLUE,BLUE,TRIM8#

main74210-30080-15iLS110,MS11#,RS110..BTP,DLX197909-198108

GREIGE,BEIGE,TRIM4#

main74210-30080-25iLS110,MS112,RS110..BTP,DLX198108-198307

BEIGE,BEIGE,TRIM4#

main74250-30040-02iMS11#,RS110..ROY,SAL197909-198108

DARK WINE,RED/MAROON,TRIM3#

main74250-30040-03iMS112,RS110..ROY,SAL198108-198307

GRAY,GRAY,TRIM1#

main74250-30040-04iMS11#,RS110..ROY,SAL197909-198108

BLUE,BLUE,TRIM8#

main74250-30040-05iMS11#,RS110..ROY,SAL197909-198108

GREIGE,BEIGE,TRIM4#

main74250-30040-15iMS112,RS110..ROY,SAL198108-198307

BEIGE,BEIGE,TRIM4#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-22060iMS112..RHD..(ROY,SAL)198008-198108

main74231-30090iMS11#..RHD..(ROY,SAL)197909-198008

main74231-30100iMS112..RHD..(ROY,SAL)198108-198307

main74232-30090iMS11#,RS110..LHD..(ROY,SAL)197909-198108

main74232-30100iMS112,RS110..LHD..(ROY,SAL)198108-198307

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-30090iMS11#..RHD..(ROY,SAL)197909-198108

main74232-30100iMS112..RHD..(ROY,SAL)198108-198307

main74241-22010iMS112,RS110..LHD..(ROY,SAL)198008-198108

main74241-30030iMS11#..LHD..(ROY,SAL)197909-198008

main74241-30040iMS112,RS110..LHD..(ROY,SAL)198108-198307

74235PANEL, REAR ARMREST BASE, UPPER

main74271-30030iMS11#,RS110..SAL197909-198108

RH

main74271-30040iMS11#..ROY..GEN197909-198108

RH

main74271-30050iMS112,RS110..SAL198108-198307

RH

main74271-30060iMS112..ROY..GEN198108-198307

RH

main74272-30030iMS11#,RS110..SAL197909-198108

LH

main74272-30040iMS11#..ROY..GEN197909-198108

LH

main74272-30050iMS112,RS110..SAL198108-198307

LH

main74272-30060iMS112..ROY..GEN198108-198307

LH

74236HOLDER, REAR ASH RECEPTACLE

main74239-30030×2iMS11#,RS110..ROY,SAL197909-198110

74240ARMREST ASSY, REAR, LH

main74210-30080-03iLS110,MS112,RS110..BTP,DLX198108-198307

GRAY,GRAY,TRIM1#

main74210-30080-04iLS110,MS11#,RS110..BTP,DLX197909-198108

BLUE,BLUE,TRIM8#

main74210-30080-15iLS110,MS11#,RS110..BTP,DLX197909-198108

GREIGE,BEIGE,TRIM4#

main74210-30080-25iLS110,MS112,RS110..BTP,DLX198108-198307

BEIGE,BEIGE,TRIM4#

main74260-30040-02iMS11#,RS110..ROY,SAL197909-198108

DARK WINE,RED/MAROON,TRIM3#

main74260-30040-03iMS112,RS110..ROY,SAL198108-198307

GRAY,GRAY,TRIM1#

main74260-30040-04iMS112,RS110..ROY,SAL198108-198307

BLUE,BLUE,TRIM8#

main74260-30040-05iMS11#,RS110..ROY,SAL197909-198108

GREIGE,BEIGE,TRIM4#

main74260-30040-15iMS112,RS110..ROY,SAL198108-198307

BEIGE,BEIGE,TRIM4#

74271RETAINER, DOOR ARMREST

main74247-30010×2iMS11#,RS110..ROY,SAL197909-198307

9015960032

main90159-60032

9016460006

main90164-60006

9018906024

main90189-06024

9026904012

main90269-04012

9046710012

main90467-10012

9356054008

main93560-54008

16 parts on this diagram · 2 diagrams in section
