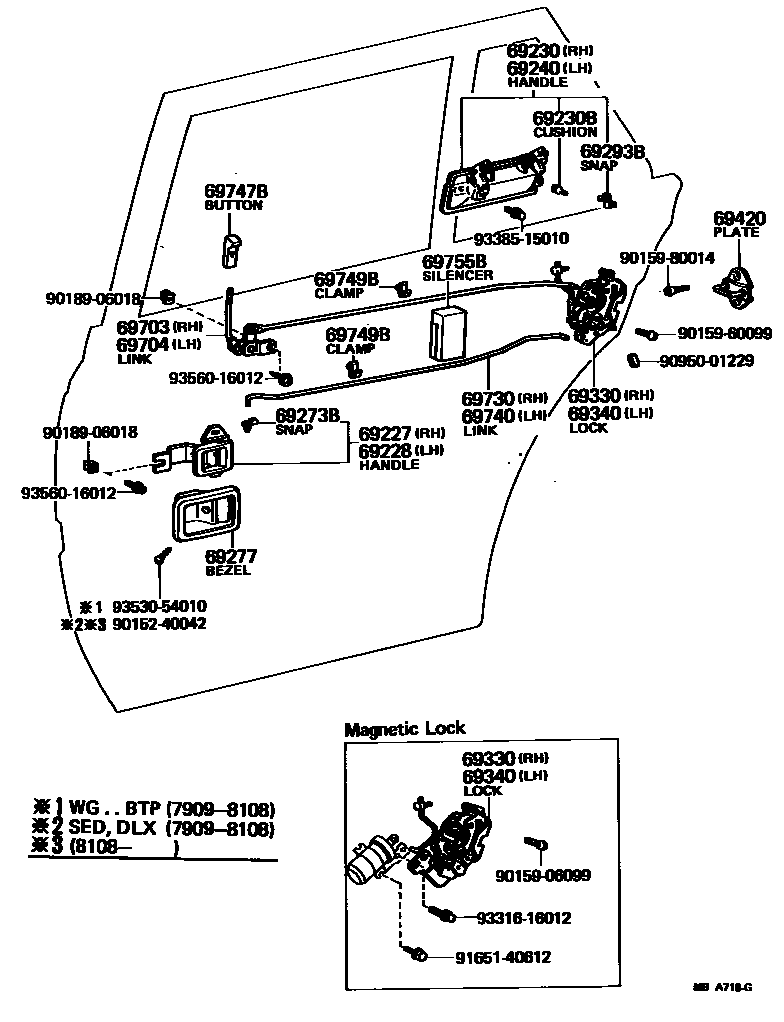

REAR DOOR LOCK & HANDLE

69227HANDLE, REAR DOOR INSIDE, RH

main69205-30010iLS110,MS11#,RS110197909-198307

69228HANDLE, REAR DOOR INSIDE, LH

main69206-30010iLS110,MS11#,RS110197909-198307

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69220-30080iLS110,MS11#,RS110197909-198307

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-03021iLS110,MS11#,RS110197909-198307

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69210-30080iLS110,MS11#,RS110197909-198307

69273BSNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR)

main69279-12020iLS110,MS11#,RS110197909-198307

RH

main69288-12010iLS110,MS11#,RS110197909-198307

LH

69277BEZEL, REAR DOOR INSIDE HANDLE

main69277-16040-15iLS110,MS11#..WG..BTP197909-198108

GREIGE,BEIGE,TRIM4#

sub69277-16040

sub69277-89104

main69277-30030iLS110,MS112,RS110197909-198307

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-12010iLS110,MS112,RS110198108-198307

RH

main69293-12020iLS110,MS112,RS110198108-198307

LH

69330LOCK ASSY, REAR DOOR, RH

main69330-30090iLS110,MS11#,RS110..BTP197909-198009

sub69330-30091

main69330-30091iLS110,MS112,RS110..BTP198009-198307

main69330-30100iMS112..SAL..EUR197909-198009

sub69330-30101

main69330-30101iMS112..SAL..EUR198009-198307

main69330-30130iMS11#..(ROY,SAL)..(ARL,GEN)197909-198009

WEST GERMANY SPEC

sub69330-30131

main69330-30131iMS112..LHD..SAL..EFI198009-198108

WEST GERMANY SPEC

main69330-30131iMS112..(ROY,SAL)..(ARL,GEN)198009-198307

69340LOCK ASSY, REAR DOOR, LH

main69340-30090iLS110,MS11#,RS110..BTP197909-198009

sub69340-30091

main69340-30091iLS110,MS112,RS110..BTP198009-198307

main69340-30100iMS112..SAL..EUR197909-198009

sub69340-30101

main69340-30101iLS110,MS112,RS110..DLX198009-198307

main69340-30130iMS112..LHD..SAL..EFI197909-198009

WEST GERMANY SPEC

sub69340-30131

main69340-30131iMS112..LHD..SAL..EFI198009-198108

WEST GERMANY SPEC

main69340-30131iMS112..(ROY,SAL)..(ARL,GEN)198009-198307

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-12040iLS110,MS11#,RS110197909-198307

sub69410-90B02

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69770-30070iLS110,MS11#,RS110197909-198307

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69780-30040iLS110,MS11#,RS110197909-198307

69730LINK ASSY, REAR DOOR OPEN CONTROL, RH

main69713-30040iLS110,MS11#,RS110197909-198307

69740LINK ASSY, REAR DOOR OPEN CONTROL, LH

main69714-30040iLS110,MS11#,RS110197909-198307

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69741-30020-02iLS110,MS11#,RS110197909-198108

DARK WINE,RED/MAROON,TRIM3#

sub69741-30020

sub69741-30030

main69741-30020-03iLS110,MS112,RS110198108-198307

GRAY,GRAY,TRIM1#

sub69741-30020

sub69741-30030

main69741-30020-04iLS110,MS11#,RS110197909-198307

BLUE,BLUE,TRIM8#

sub69741-30020

sub69741-30030

main69741-30020-05iLS110,MS11#,RS110197909-198108

GREIGE,BEIGE,TRIM4#

sub69741-30020

sub69741-30030

main69741-30020-25iLS110,MS112,RS110198108-198307

BEIGE,BEIGE,TRIM4#

sub69741-30020

sub69741-30030

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12010iLS110,MS11#,RS110197909-198206

main69749-30020iLS110,MS112,RS110198206-198307

69755BSILENCER, REAR DOOR LOCK LINK

main69759-30021iLS110,MS11#,RS110197909-198307

9015240042

main90152-40042

9015906099

main90159-06099

9015960099

main90159-60099

9015980014

main90159-80014

9018906018

main90189-06018

9095001229

main90950-01229

9165140612

main91651-40612

9331616012

main93316-16012

9338515010

main93385-15010

9353054010

main93530-54010

9356016012

main93560-16012

29 parts on this diagram · 1 diagram in section
