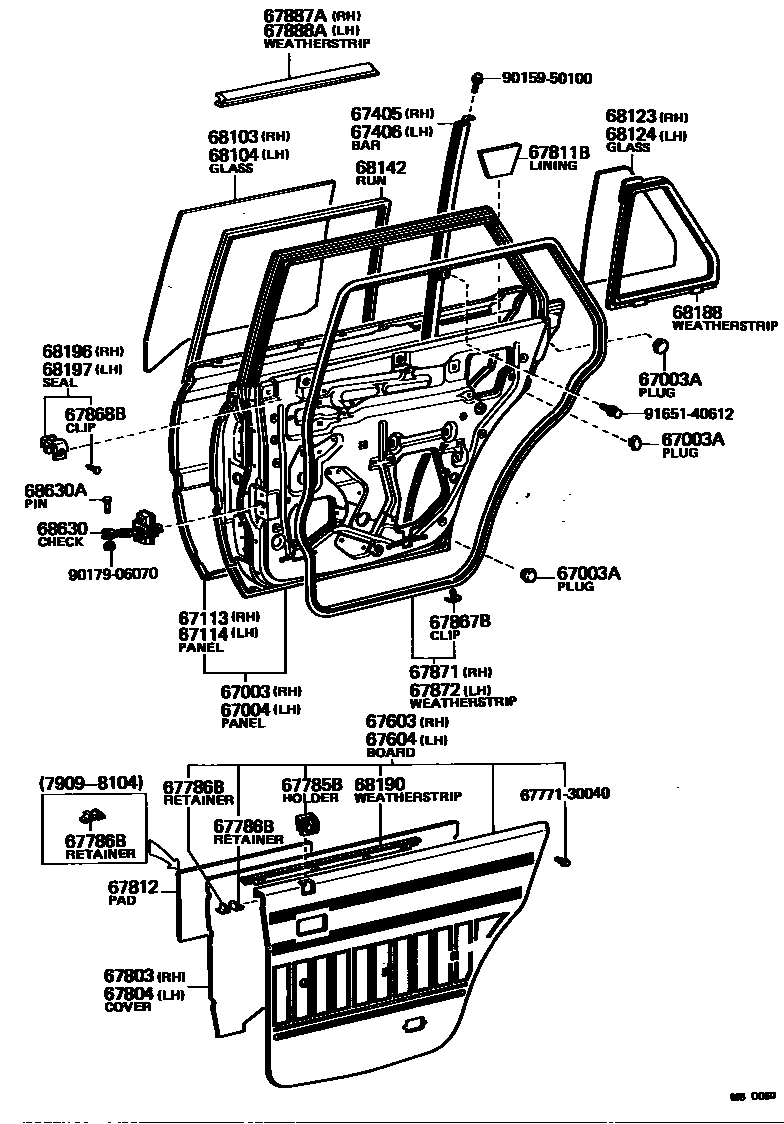

REAR DOOR PANEL & GLASS

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-30130iMS11#..ARL197909-198105

main67003-30130iMS112..LHD..5F..CBR198012-198105

SAUDI ARABIA SPEC

main67003-30131iMS112..ARL198105-198307

SAUDI ARABIA SPEC

main67003-30140iLS110,RS110¥66,200197909-198307

sub67003-30200

main67003-30170iMS11#,RS110..(ROY,SAL)..(EUR,GEN)197909-198105

main67003-30171iMS112,RS110..(ROY,SAL)..GEN¥60,500198105-198307

sub67003-30210¥60,500

main67003-30180iMS112..SED..LHD..4F198012-198105

SAUDI ARABIA SPEC

main67003-30181iMS112..SED..LHD..4F198105-198307

SAUDI ARABIA SPEC

main67003-30190iMS112..BTP,DLX¥60,500198105-198307

sub67003-30220

main67003-30200iLS110..EUR198108-198307

*GIS

main67003-30210iMS112..SAL..EUR¥60,500198108-198307

*GIS

main67003-30220iMS112..DLX..EFI198108-198307

*GIS

67003APLUG, HOLE(FOR REAR DOOR PANEL)

main90950-01006iLS110,MS11#,RS110..SED¥260197909-198307

OD=14

main90950-01130iLS110,MS11#,RS110..SED¥390197909-198307

OD=27

sub90950-01038¥220

main90950-01229iMS11#..(ROY,SAL)..(ARL,GEN)¥200197909-198307

22X10,W/O CHILD PROTECTOR

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-30130iMS11#..ARL197909-198105

main67004-30130iMS112..LHD..5F..CBR198012-198105

SAUDI ARABIA SPEC

main67004-30131iMS112..ARL198105-198307

SAUDI ARABIA SPEC

main67004-30140iLS110,MS11#,RS110..BTP,DLX¥66,200197909-198307

sub67004-30200

main67004-30170iMS11#,RS110..(ROY,SAL)..(EUR,GEN)197909-198105

main67004-30171iMS112,RS110..(ROY,SAL)..(EUR,GEN)¥61,300198105-198307

sub67004-30210¥61,300

main67004-30180iMS112..SED..LHD..4F198012-198105

SAUDI ARABIA SPEC

main67004-30181iMS112..SED..LHD..4F198105-198307

SAUDI ARABIA SPEC

main67004-30190iMS112..BTP,DLX¥60,500198105-198307

sub67004-30220

main67004-30200iRS110..RHD;LS110..RHD..DLX198108-198307

*GIS

main67004-30210iMS112..SAL..EUR¥61,300198108-198307

*GIS

main67004-30220iMS112..DLX..EFI198108-198307

*GIS

67113PANEL, REAR DOOR, OUTER RH

main67113-30070iLS110,MS11#,RS110¥27,100197909-198307

sub67113-30090

main67113-30090iLS110,MS112..EUR198108-198307

*GIS

67114PANEL, REAR DOOR, OUTER LH

main67114-30080iLS110,MS11#,RS110¥27,100197909-198307

sub67114-30100

main67114-30100iLS110,MS112..EUR198108-198307

*GIS

67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-30060iLS110,MS11#,RS110197909-198307

67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-30050iLS110,MS11#,RS110197909-198307

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-30510-05iLS110,MS11#..WG..BTP197909-198108

GREIGE,BEIGE,TRIM4#

sub67630-30510¥19,200

main67630-30510-15iLS110..WG198108-198307

BEIGE,BEIGE,TRIM4#

sub67630-30510¥19,200

main67630-30550-03iLS110,MS112,RS110..DLX198108-198307

GRAY,GRAY,TRIM1#

main67630-30550-04iLS110,MS112,RS110..DLX197909-198307

BLUE,BLUE,TRIM8#

main67630-30550-05iLS110,MS11#,RS110..DLX197909-198108

GREIGE,BEIGE,TRIM4#

main67630-30550-15iLS110,MS112,RS110..DLX198108-198307

BEIGE,BEIGE,TRIM4#

main67630-30580-02iMS11#..ROY..GEN197909-198108

DARK WINE,RED/MAROON,TRIM3#

main67630-30580-04iMS11#..ROY..GEN197909-198108

BLUE,BLUE,TRIM8#

main67630-30580-05iMS11#..ROY..GEN197909-198108

GREIGE,BEIGE,TRIM4#

main67630-30581-03iMS112..ROY198108-198307

GRAY,GRAY,TRIM1#

main67630-30581-04iMS112..ROY198108-198307

BLUE,BLUE,TRIM8#

main67630-30581-05iMS112..ROY198108-198307

BEIGE,BEIGE,TRIM4#

main67630-30590-03iLS110,RS110..SED..BTP198108-198307

GRAY,GRAY,TRIM1#

main67630-30590-04iLS110,MS11#,RS110..SED..BTP197909-198108

BLUE,BLUE,TRIM8#

main67630-30590-05iLS110,MS11#,RS110..SED..BTP197909-198108

GREIGE,BEIGE,TRIM4#

main67630-30590-15iLS110,RS110..SED..BTP198108-198307

BEIGE,BEIGE,TRIM4#

main67630-30680-02iMS11#..SAL197909-198001

DARK WINE,RED/MAROON,TRIM3#

sub67630-30681

main67630-30680-04iMS11#..SAL197909-198001

BLUE,BLUE,TRIM8#

sub67630-30681

main67630-30680-05iMS11#..SAL197909-198001

GREIGE,BEIGE,TRIM4#

sub67630-30681

main67630-30681-02iMS11#..SAL198001-198008

DARK WINE,RED/MAROON,TRIM3#

main67630-30681-04iMS11#..SAL198001-198008

BLUE,BLUE,TRIM8#

main67630-30681-05iMS11#..SAL198001-198008

GREIGE,BEIGE,TRIM4#

main67630-30690-02iMS112,RS110..SAL198008-198108

DARK WINE,RED/MAROON,TRIM3#

main67630-30690-04iMS112..ARL198008-198108

BLUE,BLUE,TRIM8#

main67630-30690-05iMS112,RS110..SAL198008-198108

GREIGE,BEIGE,TRIM4#

main67630-30691-03iMS112,RS110..SAL198108-198307

GRAY,GRAY,TRIM1#

main67630-30691-04iMS112,RS110..SAL198108-198307

BLUE,BLUE,TRIM8#

main67630-30691-05iMS112,RS110..SAL198108-198307

BEIGE,BEIGE,TRIM4#

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-30510-05iLS110,MS11#..WG..BTP197909-198108

GREIGE,BEIGE,TRIM4#

sub67640-30510¥19,200

main67640-30510-15iLS110..WG198108-198307

BEIGE,BEIGE,TRIM4#

sub67640-30510¥19,200

main67640-30550-03iLS110,MS112,RS110..DLX198108-198307

GRAY,GRAY,TRIM1#

main67640-30550-04iLS110,MS112,RS110..DLX197909-198307

BLUE,BLUE,TRIM8#

main67640-30550-05iLS110,MS11#,RS110..DLX197909-198108

GREIGE,BEIGE,TRIM4#

main67640-30550-15iLS110,MS112,RS110..DLX198108-198307

BEIGE,BEIGE,TRIM4#

main67640-30580-02iMS11#..ROY..GEN197909-198108

DARK WINE,RED/MAROON,TRIM3#

main67640-30580-04iMS11#..ROY..GEN197909-198108

BLUE,BLUE,TRIM8#

main67640-30580-05iMS11#..ROY..GEN197909-198108

GREIGE,BEIGE,TRIM4#

main67640-30581-03iMS112..ROY198108-198307

GRAY,GRAY,TRIM1#

main67640-30581-04iMS112..ROY198108-198307

BLUE,BLUE,TRIM8#

main67640-30581-05iMS112..ROY198108-198307

BEIGE,BEIGE,TRIM4#

main67640-30590-03iLS110,RS110..SED..BTP198108-198307

GRAY,GRAY,TRIM1#

main67640-30590-04iLS110,MS11#,RS110..SED..BTP197909-198108

BLUE,BLUE,TRIM8#

main67640-30590-05iLS110,MS11#,RS110..SED..BTP197909-198108

GREIGE,BEIGE,TRIM4#

main67640-30590-15iLS110,RS110..SED..BTP198108-198307

BEIGE,BEIGE,TRIM4#

main67640-30680-02iMS11#..SAL197909-198001

DARK WINE,RED/MAROON,TRIM3#

sub67640-30681

main67640-30680-04iMS11#..SAL197909-198001

BLUE,BLUE,TRIM8#

sub67640-30681

main67640-30680-05iMS11#..SAL197909-198001

GREIGE,BEIGE,TRIM4#

sub67640-30681

main67640-30681-02iMS11#..SAL198001-198008

DARK WINE,RED/MAROON,TRIM3#

main67640-30681-04iMS11#..SAL198001-198008

BLUE,BLUE,TRIM8#

main67640-30681-05iMS11#..SAL198001-198008

GREIGE,BEIGE,TRIM4#

main67640-30690-02iMS112,RS110..SAL198008-198108

DARK WINE,RED/MAROON,TRIM3#

main67640-30690-04iMS112,RS110..SAL198008-198108

BLUE,BLUE,TRIM8#

main67640-30690-05iMS112,RS110..SAL198008-198108

GREIGE,BEIGE,TRIM4#

main67640-30691-03iMS112,RS110..SAL198108-198307

GRAY,GRAY,TRIM1#

main67640-30691-04iMS112,RS110..SAL198108-198307

BLUE,BLUE,TRIM8#

main67640-30691-05iMS112,RS110..SAL198108-198307

BEIGE,BEIGE,TRIM4#

67785BHOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)

main67785-30040-02iLS110,MS11#,RS110197909-198108

DARK WINE,RED/MAROON,TRIM3#

main67785-30040-03iLS110,MS112,RS110198108-198307

GRAY,GRAY,TRIM1#

main67785-30040-04iLS110,MS112,RS110197909-198307

BLUE,BLUE,TRIM8#

main67785-30040-05iLS110,MS11#,RS110197909-198108

GREIGE,BEIGE,TRIM4#

main67785-30040-25iLS110,MS112,RS110198108-198307

BEIGE,BEIGE,TRIM4#

67786BRETAINER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)

main67786-30020iLS110,MS112,RS110¥250198108-198307

main67786-30030iLS110,MS11#,RS110¥260197909-198108

sub67786-30020¥250

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67841-30110iLS110,MS11#,RS110..BTP,DLX197909-198307

main67841-30120iMS11#,RS110..ROY,SAL¥620197909-198307

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67841-30110iLS110,MS11#,RS110..BTP,DLX197909-198307

main67841-30120iMS11#,RS110..ROY,SAL¥620197909-198307

67811BPAD, SIDE PANEL SILENCER

main67139-12010iLS110,MS11#..WG197909-198212

67812PAD, REAR DOOR SILENCER

main67811-12040iLS110,MS11#,RS110¥610197909-198307

sub67812-12010¥640

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67868-30040iLS110,MS11#,RS110¥110197909-198307

67868BCLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)

main67868-30030iLS110,MS11#,RS110¥190197909-198307

67871WEATHERSTRIP, REAR DOOR, RH

main67871-30080iLS110,MS11#,RS110¥6,100197909-198307

67872WEATHERSTRIP, REAR DOOR, LH

main67872-30080iLS110,MS11#,RS110¥6,100197909-198307

67887AWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-30010iMS112198106-198307

67888AWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-30010iMS112198106-198307

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-30180iLS110,MS11#,RS110..BTP;MS111..SED..RHD..4F..DLX¥8,700197909-198307

*TEM,T=4.0

sub68113-30190¥10,000

main68113-30190iLS110,MS11#,RS110¥10,000197909-198307

*TT,T=4.0

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-30100iLS110,MS11#,RS110..BTP;MS111..SED..RHD..4F..DLX¥8,700197909-198307

*TEM,T=4.0

sub68114-30110¥10,000

main68114-30110iLS110,MS11#,RS110¥10,000197909-198307

*TT,T=4.0

68123GLASS, REAR DOOR WINDOW, RH

main68123-30160iLS110,MS11#,RS110..BTP;MS111..SED..RHD..4F..DLX¥3,990197909-198307

*TEM,T=4.0

sub68123-30170¥4,540

main68123-30170iLS110,MS11#,RS110¥4,540197909-198307

*TT,T=4.0

68124GLASS, REAR DOOR WINDOW, LH

main68124-30100iLS110,MS11#,RS110..BTP;MS111..SED..RHD..4F..DLX¥3,990197909-198307

*TEM,T=4.0

main68124-30110iLS110,MS11#,RS110¥4,540197909-198307

*TT,T=4.0

68142RUN, REAR DOOR GLASS

main68142-30060iLS110,MS11#,RS110¥4,060197909-198307

RUBBER

main68142-30080iLS110,MS11#,RS110¥6,000197909-198307

VINYL CHLORIDE

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-30060iLS110,MS11#,RS110197909-198307

RH

main68189-30040iLS110,MS11#,RS110197909-198307

LH

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68190-30100iLS110,MS11#,RS110¥3,060197909-198307

68196SEAL, REAR DOOR BELT, RH

main68196-30020iLS110,MS11#,RS110197909-198307

68197SEAL, REAR DOOR BELT, LH

main68197-30020iLS110,MS11#,RS110197909-198307

68630CHECK ASSY, REAR DOOR

main68630-30010iLS110,MS11#,RS110¥4,240197909-198307

68630APIN(FOR REAR DOOR CHECK)

main68617-30010iLS110,MS11#,RS110¥300197909-198307

sub68617-90K00¥200

6777130040WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30040¥240

9015950100

main90159-50100¥210

9017906070

main90179-06070¥180

9165140612

main91651-40612¥70

36 parts on this diagram · 1 diagram in section
