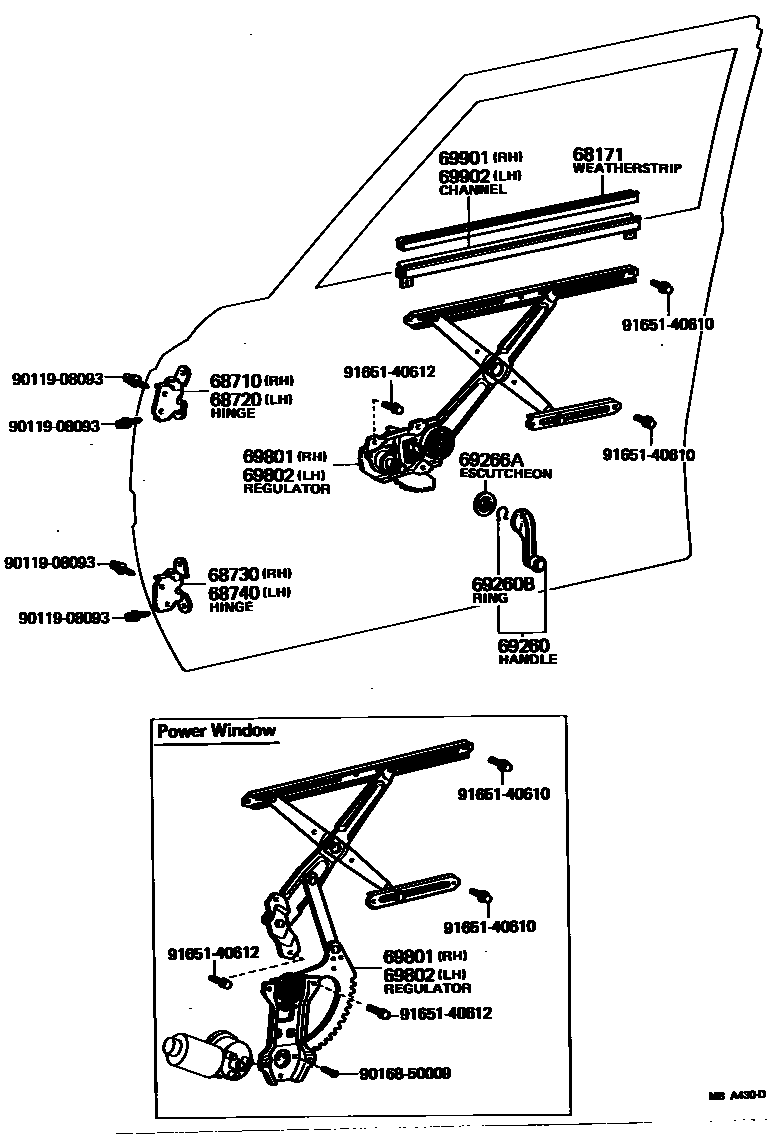

FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main69971-22010iLS110,MS11#,RS110197909-198307

sub69971-95110

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-30070iLS110,MS11#,RS110197909-198307

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-30010iLS110,MS11#,RS110197909-198307

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-20070iLS110,MS11#,RS110197909-198307

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-20070iLS110,MS11#,RS110197909-198307

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-22020-03iLS110,MS112,RS110..BTP,DLX198108-198307

GRAY,GRAY,TRIM1#

sub69260-22020

sub69260-14030

main69260-22020-04iLS110,MS11#,RS110..BTP,DLX197909-198307

BLUE,BLUE,TRIM8#

sub69260-22020

sub69260-14030

main69260-22020-15iLS110,MS11#,RS110..BTP,DLX197909-198108

GREIGE,BEIGE,TRIM4#

sub69260-22020

sub69260-14030

main69260-22020-25iLS110,MS112,RS110..BTP,DLX198108-198307

BEIGE,BEIGE,TRIM4#

sub69260-22020

sub69260-14030

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iLS110,MS11#,RS110197909-198307

sub90520-01274

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69272-30010iLS110,MS11#,RS110..BTP,DLX197909-198307

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-30130iMS11#,RS110..ROY,SAL197909-198307

main69810-30240iLS110,MS11#,RS110..BTP,DLX197909-198307

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-30130iMS11#,RS110..ROY,SAL197909-198307

main69820-30170iLS110,MS11#,RS110..BTP,DLX197909-198307

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-22040iLS110,MS11#,RS110197909-198307

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-22040iLS110,MS11#,RS110197909-198307

9011908093

main90119-08093

9016850009

main90168-50009

9165140610

main91651-40610

9165140612

main91651-40612

16 parts on this diagram · 1 diagram in section
