FRONT DOOR LOCK & HANDLE

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-30010iLS110,MS11#,RS110197909-198307

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-30010iLS110,MS11#,RS110197909-198307

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-30080iLS110,MS11#,RS110197909-198106

main69210-30100iMS112..RHD..(ROY,SAL)198108-198307

main69210-30120iMS112..ARL198108-198307

sub69210-30100

main69210-30140iLS110,MS112,RS110..LHD198106-198307

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021iLS110,MS11#,RS110197909-198307

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-30080iLS110,MS11#,RS110197909-198106

main69220-30100iMS112,RS110..LHD..(ROY,SAL)198108-198307

main69220-30120iLS110,MS112,RS110198106-198307

69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)

main69279-12020iLS110,MS11#,RS110197909-198307

RH

main69288-12010iLS110,MS11#,RS110197909-198307

LH

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69277-16040-15iLS110,MS11#..WG..BTP197909-198108

GREIGE,BEIGE,TRIM4#

sub69277-16040

sub69277-89104

main69277-30030iLS110,MS112,RS110197909-198307

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12010iLS110,MS112,RS110198108-198307

LH

main69293-12020iLS110,MS112,RS110198108-198307

RH

69310LOCK ASSY, FRONT DOOR, RH

main69310-30260iLS110,MS11#,RS110..LHD..(DLX,ROY,SAL)197909-198307

main69310-30270iLS110,MS11#,RS110..RHD..(DLX,ROY,SAL)..(EUR,GEN)197909-198108

main69310-30280iLS110,RS110..RHD..BTP197909-198307

main69310-30300iLS110,MS11#,RS110..LHD..BTP197909-198307

main69310-30360iLS110,MS112..RHD..(DLX,ROY,SAL)..(EUR,GEN)198108-198307

main69310-30370iMS11#..ARL197909-198108

main69310-30380iMS112..SED..LHD..4H..DLX198012-198307

SAUDI ARABIA SPEC

main69310-30440iMS112..ARL198108-198307

69320LOCK ASSY, FRONT DOOR, LH

main69320-30270iLS110,MS11#,RS110..RHD..(DLX,ROY,SAL)..(EUR,GEN)197909-198307

main69320-30280iLS110,MS11#,RS110..LHD..(DLX,ROY,SAL)197909-198108

main69320-30290iLS110,MS11#,RS110..LHD..BTP197909-198307

main69320-30300iLS110,RS110..RHD..BTP197909-198307

main69320-30360iMS11#..ARL197909-198307

main69320-30370iMS112..SED..LHD..4F198012-198108

SAUDI ARABIA SPEC

main69320-30390iLS110,MS112..LHD..(DLX,ROY,SAL)198108-198307

main69320-30430iMS112..SED..LHD..4H198108-198307

SAUDI ARABIA SPEC

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-12040iLS110,MS11#,RS110197909-198307

sub69410-90B02

69410ASHIM, FRONT DOOR LOCK STRIKER PLATE

main69413-30010iMS112..SED..LHD..4H..DLX198012-198307

SAUDI ARABIA SPEC

main69413-30010iMS111..ARL197909-198307

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-30050iLS110,MS11#,RS110197909-198307

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-30060iLS110,MS11#,RS110197909-198307

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69741-30020-02iLS110,MS11#,RS110197909-198108

DARK WINE,RED/MAROON,TRIM3#

sub69741-30020

sub69741-30030

main69741-30020-03iLS110,MS112,RS110198108-198307

GRAY,GRAY,TRIM1#

sub69741-30020

sub69741-30030

main69741-30020-04iLS110,MS11#,RS110197909-198307

BLUE,BLUE,TRIM8#

sub69741-30020

sub69741-30030

main69741-30020-05iLS110,MS11#,RS110197909-198108

GREIGE,BEIGE,TRIM4#

sub69741-30020

sub69741-30030

main69741-30020-25iLS110,MS112,RS110198108-198307

BEIGE,BEIGE,TRIM4#

sub69741-30020

sub69741-30030

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-12010iLS110,MS11#,RS110197909-198206

main69749-30020iLS110,MS112,RS110198206-198307

69755ASILENCER, FRONT DOOR LOCK LINK

main69759-30021iLS110,MS11#,RS110197909-198307

9015240042

main90152-40042

9015960099

main90159-60099

9015980014

main90159-80014

9018906018

main90189-06018

9165140612

main91651-40612

9331616012

main93316-16012

9338515010

main93385-15010

9353054010

main93530-54010

9356016012

main93560-16012

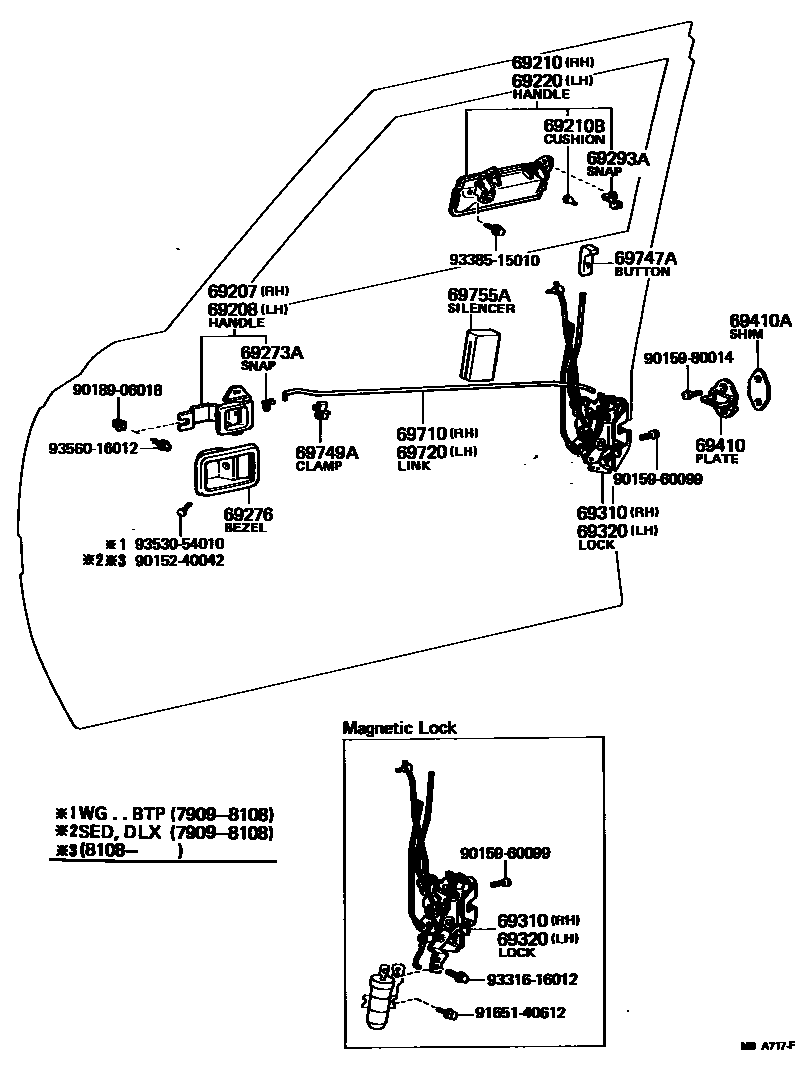

26 parts on this diagram · 1 diagram in section
