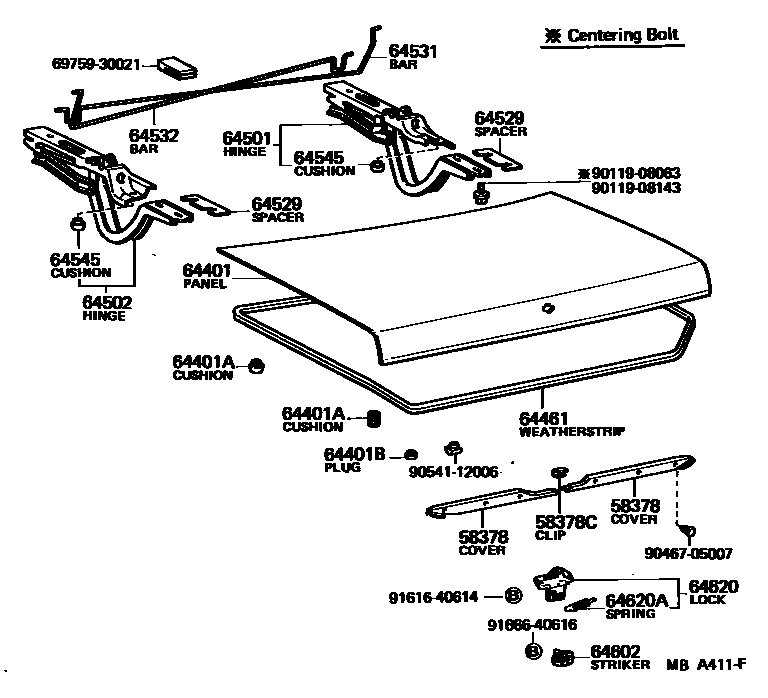

LUGGAGE COMPARTMENT DOOR & LOCK

58378COVER, LOWER BACK TRIM, RETAINER

main58378-30040iLS110,MS11#,RS110..SED197909-198307

RH

main58379-30020iLS110,MS11#,RS110..SED197909-198307

LH

58378CCLIP(FOR LOWER BACK TRIM COVER)

main90468-03004iLS110,MS11#,RS110..SED197909-198307

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-30370iLS110,MS11#,RS110..SED197909-198108

sub64401-30490

main64401-30490iLS110,MS112,RS110..SED198108-198307

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09106iLS110,MS11#,RS110..SED197909-198307

FR

main90541-15002iLS110,MS11#,RS110..SED197909-198003

RR

sub90541-15111

main90541-15111iLS110,MS11#,RS110..SED198003-198307

RR

64401BPLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90950-01065iLS110..SED..EUR197909-198002

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-30050iLS110,MS11#,RS110..SED197909-198307

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-30090iLS110,MS11#,RS110..SED197909-198307

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-30040iLS110,MS11#,RS110..SED197909-198307

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-14010iLS110,MS11#,RS110..SED197909-198307

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-30100iLS110,MS11#,RS110..SED197909-198108

main64531-30101iLS110,MS112,RS110..SED198108-198307

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-30090iLS110,MS11#,RS110..SED197909-198108

main64532-30091iLS110,MS112,RS110..SED198108-198307

64545CUSHION, LUGGAGE DOOR HINGE

main90541-09003iLS110,MS11#,RS110..SED197909-198003

main90541-09013iLS110,MS11#,RS110..SED198003-198307

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-22030iLS110,MS11#,RS110..SED197909-198307

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-12020iLS110,MS11#,RS110..SED..BTP197909-198307

main64610-30030iLS110,MS11#,RS110..SED197909-198307

SOLENOID TYPE

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-07006iLS110,MS11#,RS110..SED197909-198205

W/SOLENOID TYPE

main90506-07010iLS110..5F..DLX;LS110..4F,4FC,4H;MS112,RS110..SED198205-198307

W/SOLENOID TYPE

main90506-09001iLS110,MS11#,RS110..SED..BTP197909-198307

6975930021SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-30021

9011908063

main90119-08063

9011908143

main90119-08143

9046705007

main90467-05007

9054112006

main90541-12006

9161640614

main91616-40614

9166640616

main91666-40616

22 parts on this diagram · 1 diagram in section
