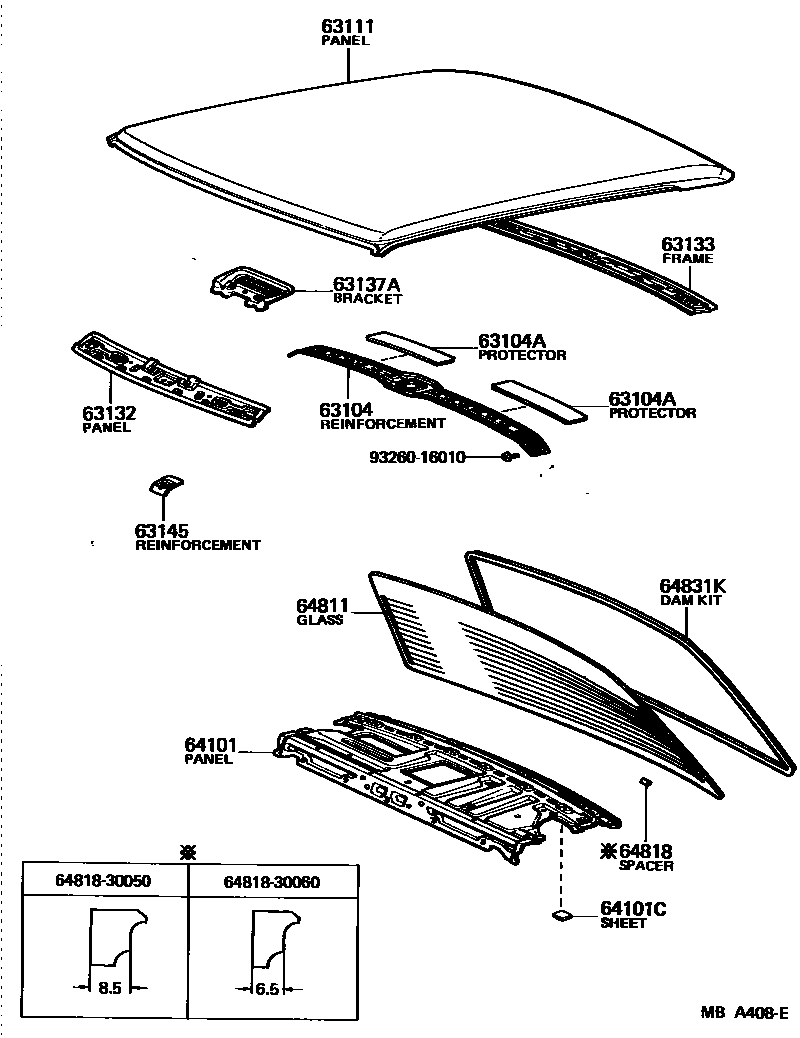

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-91703iLS110,MS11#..WG197909-198307

main63141-30030iLS110,MS11#,RS110..SED197909-198307

63104APROTECTOR, ROOF REINFORCEMENT

main63331-30010iMS112..LHD..SAL..EFI197909-198307

WEST GERMANY SPEC

63111PANEL, ROOF

main63111-30110iLS110,MS11#,RS110..SED197909-198307

main63111-91703iLS110,MS11#..WG197909-198307

63132PANEL, WINDSHIELD HEADER, INNER

main63132-30090iLS110,MS11#,RS110197909-198307

63133FRAME, BACK WINDOW OPENING, UPPER

main63105-91702iLS110,MS11#..WG197909-198307

main63105-91703iLS110,MS11#..WG197909-198307

W/RR WIPER

main63133-30080iLS110,MS11#,RS110..SED197909-198307

63137ABRACKET, DOME LAMP, NO.1

main63137-30060iMS11#,RS110..ROY,SAL197909-198307

63145REINFORCEMENT, WINDSHIELD HEADER INNER PANEL

main63145-30020iLS110,MS11#,RS110197909-198307

64101PANEL SUB-ASSY, UPPER BACK

main64101-30060iLS110,MS11#,RS110..SED..(BTP,DLX,SAL)..(EUR,GEN)197909-198307

sub64101-30080

main64101-30070iMS11#..ROY..GEN197909-198307

main64101-30080iMS11#..ARL197909-198307

64101CSHEET, SILENCER

main61824-30010iLS110,MS11#,RS110..SED197909-198307

40X40

main61825-30010iLS110,MS11#,RS110..SED197909-198307

70X70

64811GLASS, BACK WINDOW

main64801-30140iLS110,MS11#,RS110..SED197909-198307

*EHTT,T=4.0

main64801-30150iLS110,MS11#,RS110..SED..BTP197909-198307

*EHT,T=4.0

sub64801-30140

main64811-30300iMS112..SED..(DLX,SAL)..CBR;LS110,RS110..(BTP,DLX)..GEN197909-198307

*TT,T=4.0

sub64801-30130

main64811-30310iMS111..SED..RHD..4F..DLX;LS110,MS11#,RS110..SED..BTP..GEN197909-198307

*TEM,T=4.0

sub64801-30150

64818SPACER, BACK WINDOW GLASS

main64818-30050iLS110,MS11#,RS110..SED197909-198307

T=8.5

main64818-30060iLS110,MS112,RS110..SED198301-198307

T=6.5

64831KDAM KIT, BACK WINDOW GLASS

main04562-14010iLS110,MS11#,RS110..SED197909-198307

sub04562-30040

6481830050SPACER, BACK WINDOW GLASS

main64818-30050

6481830060SPACER, BACK WINDOW GLASS

main64818-30060

9326016010

main93260-16010

15 parts on this diagram · 2 diagrams in section
